Shimax MAC6A User Manual

42
Execution SV = 300℃
Time change
Start SV =0 ℃

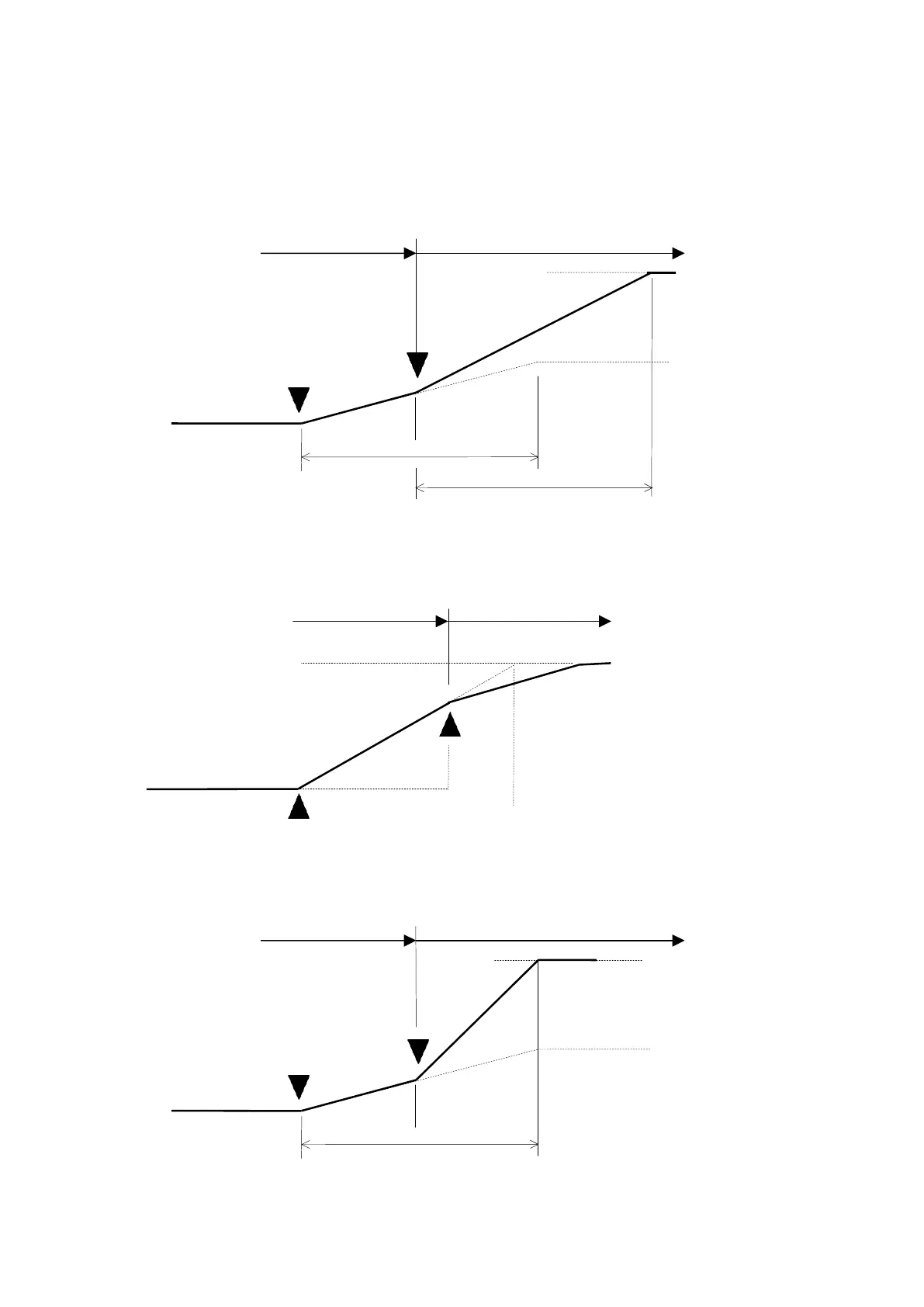

③When SV Value or SV No, changed During Ramp function is proceeding, Once time have to be initialized and calculate
Ramp rate again using changed SV value to Start SV.
(Ramp Rate and Ramp time will be changed)
Execution SV=300℃ Execution SV= 500 ℃
５００℃
SV Change
ＲＵＮ
３００℃
Start SV =0 ℃
Ramp time
Ramp time
④When Ramp time will be changed during Ramp function is proceeding, time have not to be initialized. It will be
calculated by using remain Ramp time.
Ramp time = 40 min Ramp time = 50 min
ＲＵＮ
３０ min
４０min ５０ min
⑤When SV No will be changed during Ramp function is proceeding, time have not to be initialized. It will be
calculated by using remain Ramp time.
ＳＶ＝３００℃ ＳＶ＝５００℃
５００℃
ＲＵＮ
ＳＶ
Change
３００℃
Start ＳＶ＝０℃
Ramp time
