Explanation of Ramp status and Soak status
1:In case of Ramp Status ,timer starting at Ramp start
2:In case of Soak Status timer starting at Ramp finish
3:No Event activating at Status time >Ramp time at Ramp status mode 1
4:Even will be on at the status time > Ramp time at the Ramp mode2

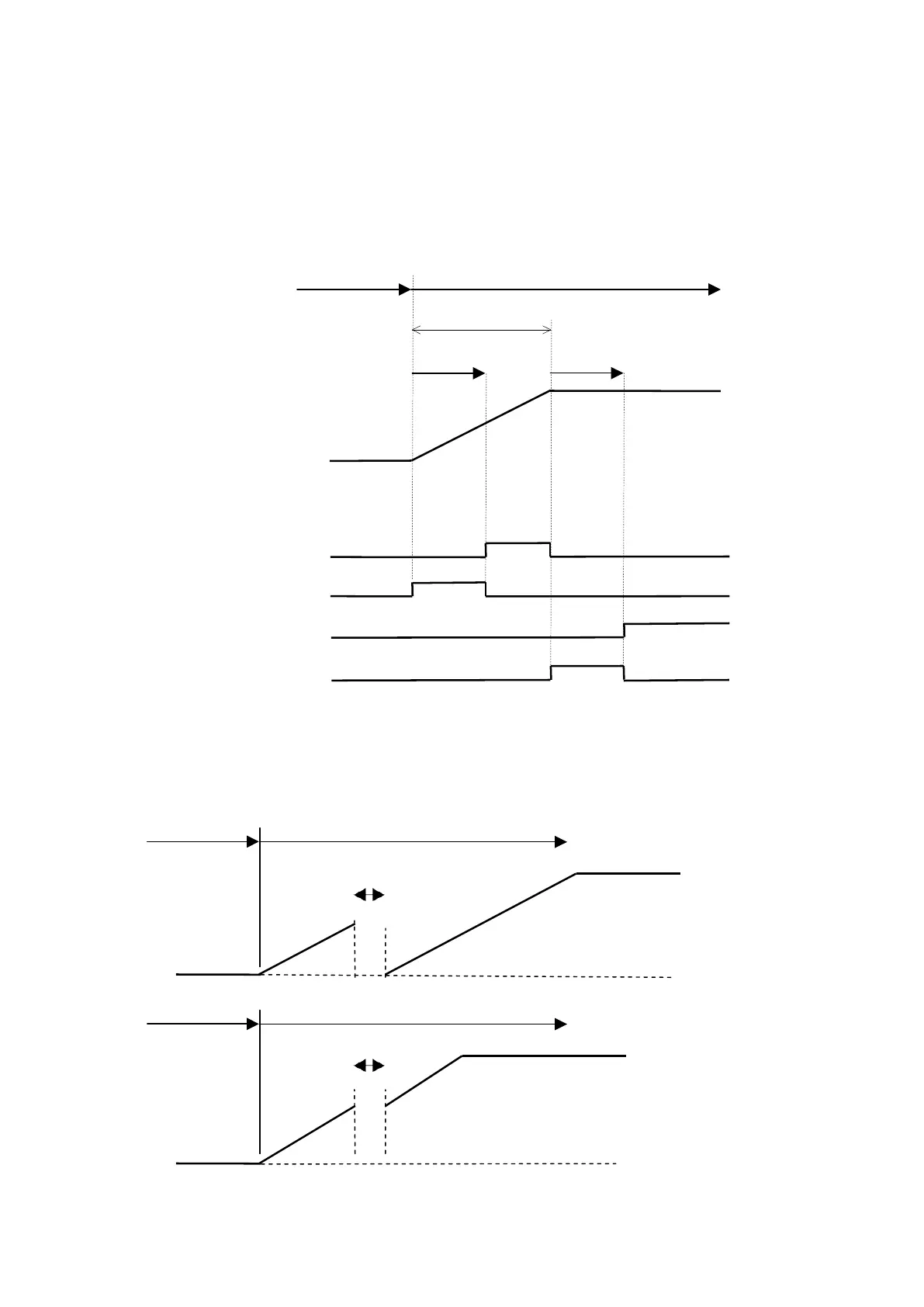

Status operation example
ＳＴＢＹ ＲＵＮ
Ramp time
Status time Status
time
Execution SV
Start ＳＶ
Ｒａｍｐ ｓｔａｔｕｓ１(Oｎ_Dｅｌａｙ)
Ｒａｍｐ ｓｔａｔｕｓ２(Oｆｆ_Dｅｌａｙ)
Ｓｏａｋ ｓｔａｔｕｓ１(Oｎ_Dｅｌａｙ)
Ｓｏａｋ ｓｔａｔｕｓ２(Oｆｆ_Dｅｌａｙ)
Power failure compensation
When set the Power failure compensation is activate , Ramp function have to be start at the first value. But
in case of PV start has set , Ramp function have to be started like below:
Power failure compensation ON (ＳＶ Start)
Power failure compensation ON (ＰＶ start)
Execution SV
STBY
RUN
Execution SV
Power failure
Start SV
STBY
RUN
Power failure
Start SV
