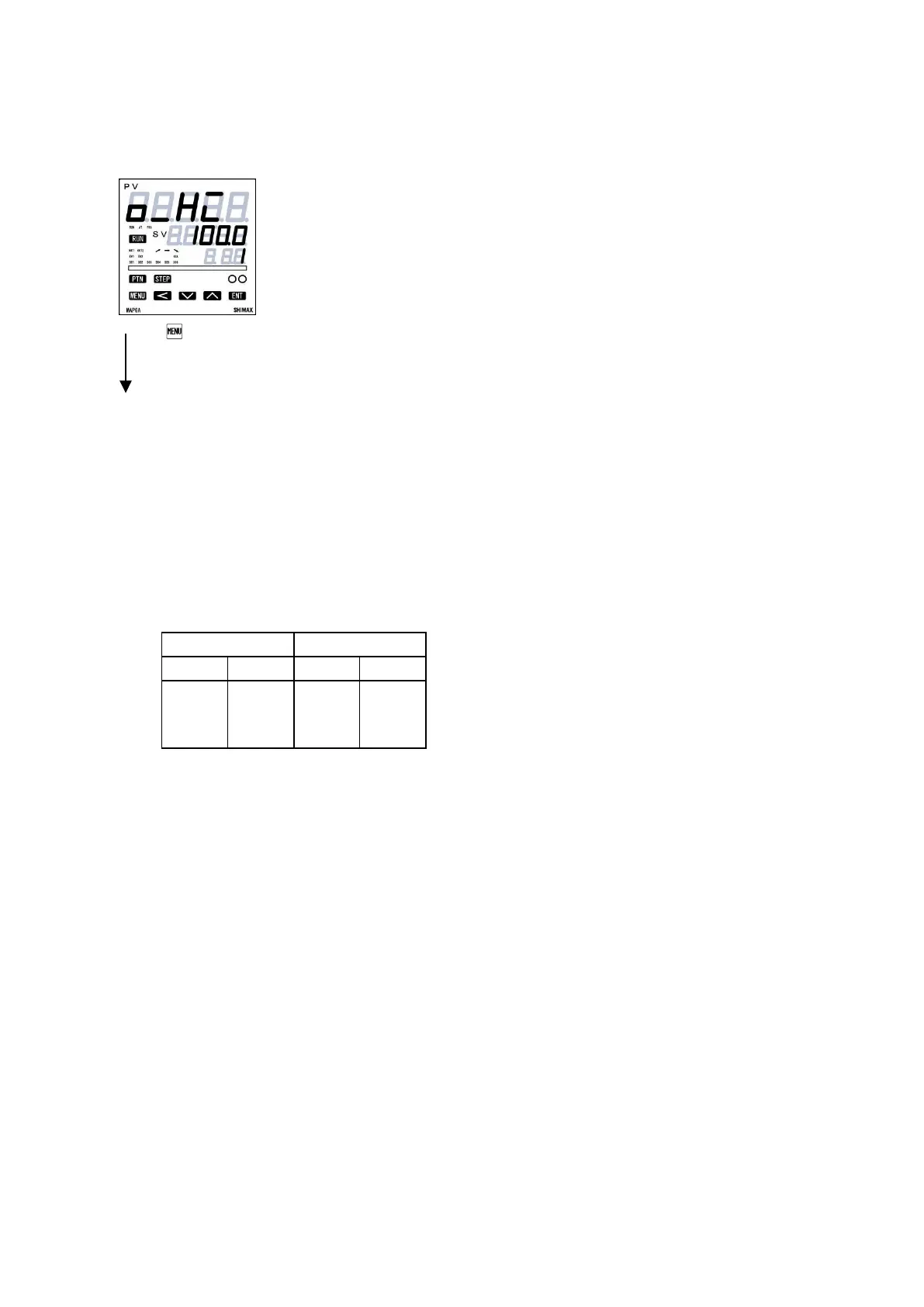

Output1 PID1 maximum limiter setting screen
Initial value : 100.0
Setting range : 0.1～100.0%
Setting range: output limiter lower limiter values +0.1～100.0%
Mode3 PID1 lead screen
About Output limit function.
At the time of Reset (standby) and Over scale, Output have to be 0.0% compulsorily with. nothing relate output limit
setting value.
During AT tuning function, output value will be 0% and 100% with nothing relate output limit setting value. At
P=OFF operation Output type C and S will be 0% and 100% with nothing relate output limit setting value.
Please refer the table below:
AT
P = OFF
S, C
I
S, C
I
0.0
0.0
0.0
OL
or
or
or
or
100.0
100.0
100.0
OH
At the time of difference between Output maximum limit value and minimum limit value will be less than 0.1 , it have
to be set the maximum limit value ,+0.1 to minimum limit value.
