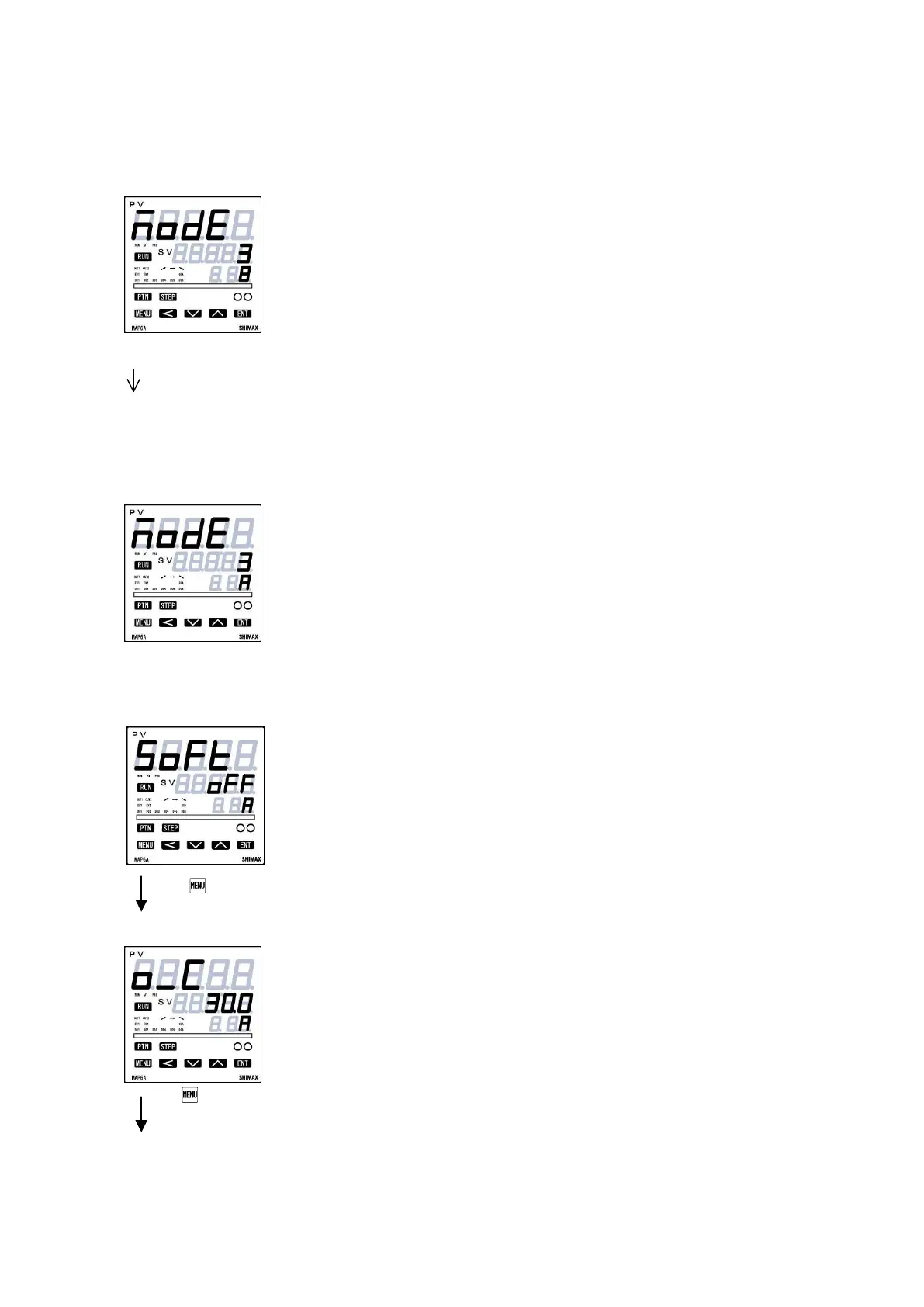

Out1 PID common setting
Common setting of PID can be moved from PID8 screen.
Shift key
Out1 PID common setting screen
Out1 Soft start setting screen
Initial value : Off
Setting range : Off, 0.1～300.0 sec
This is the function that eases change of output at the time of a power-on and
startup from 0% to 100%.
Does not function at the time of OFF setup.
Output 1 proportional periodic time setting screen
Initial value : 30.0 (Contact ) 3.0 (Voltage pulse)
Setting range : 0.5 ～300.0seconds (setting resolution 0.5seconds)
Proportional periodic time of output 1 is set.
No display beside Contact and Voltage pulse
