10(83)

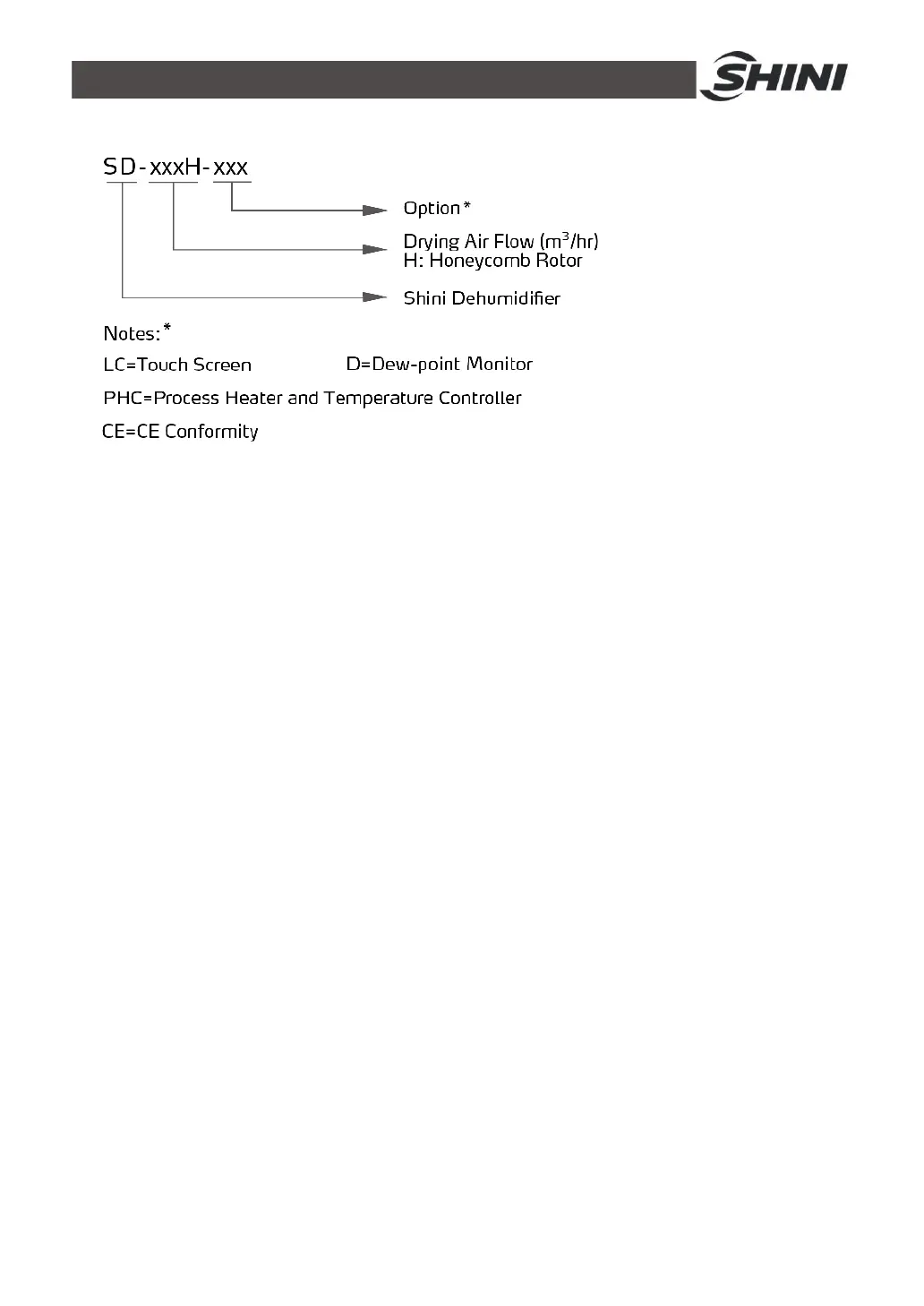

1.1 Coding Principle
1.2 Feature
1) Standard configuration
● Adopts P.I.D. temperature controller to accurately control regenerative
temperature.
● The dehumidifying system of the SD-H series features two coolers to ensure
a low return air temperature and low dew-point.
● Return air filter is mounted inside to ensure no contamination to the
honeycomb.
● It is better to adopt molecular sieve structure honeycomb than silica gel
adsorption one in dehumidifying.
2) Accessory option
● Centralized automatic control can be realized by optionally selected PLC
touch screen controller.
● Optionally select dew-point monitor to realize dew-point real-time monitoring.
● Optionally select drying heater and its temp. controller to work with drying
hopper for material dehumidifying and drying.
● Optional heat-resistant air pipe, cyclone dust separator with floor stand, oil
filter are available.
● Dew-point -50℃ is optionally equipped.
