65(83)
Oil filter installation steps:
1. Screw the oil filter on the top plate of the honeycomb dehumidifier.
2. Connect 1 and 2 with a heat-resistant duct and fixed both the ends with
stainless steel tube.
3. Connect 3 and 4 with a heat-resistant duct and fixed both the ends with
stainless steel tube.
4. Connect 5 and 6 with a heat-resistant duct and fixed both the ends with
stainless steel tube.

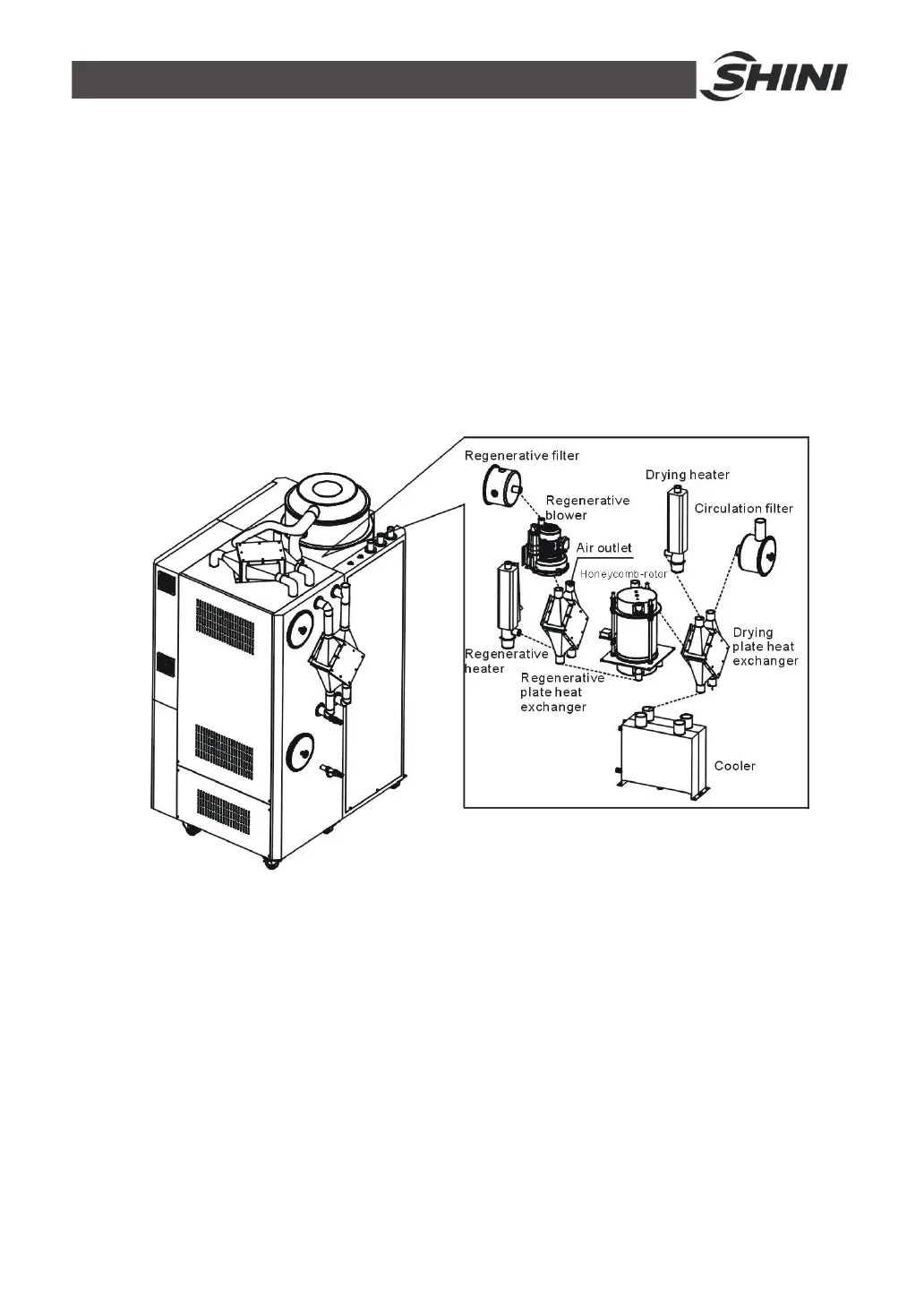

3.7 Plate Heat Exchanger
Picture 3-8：Plate Heat Exchanger over Figure
Each part is connected by heat-resistant air pipes and fixed by stainless steel
pipes as shown in the diagram.
