22(83)

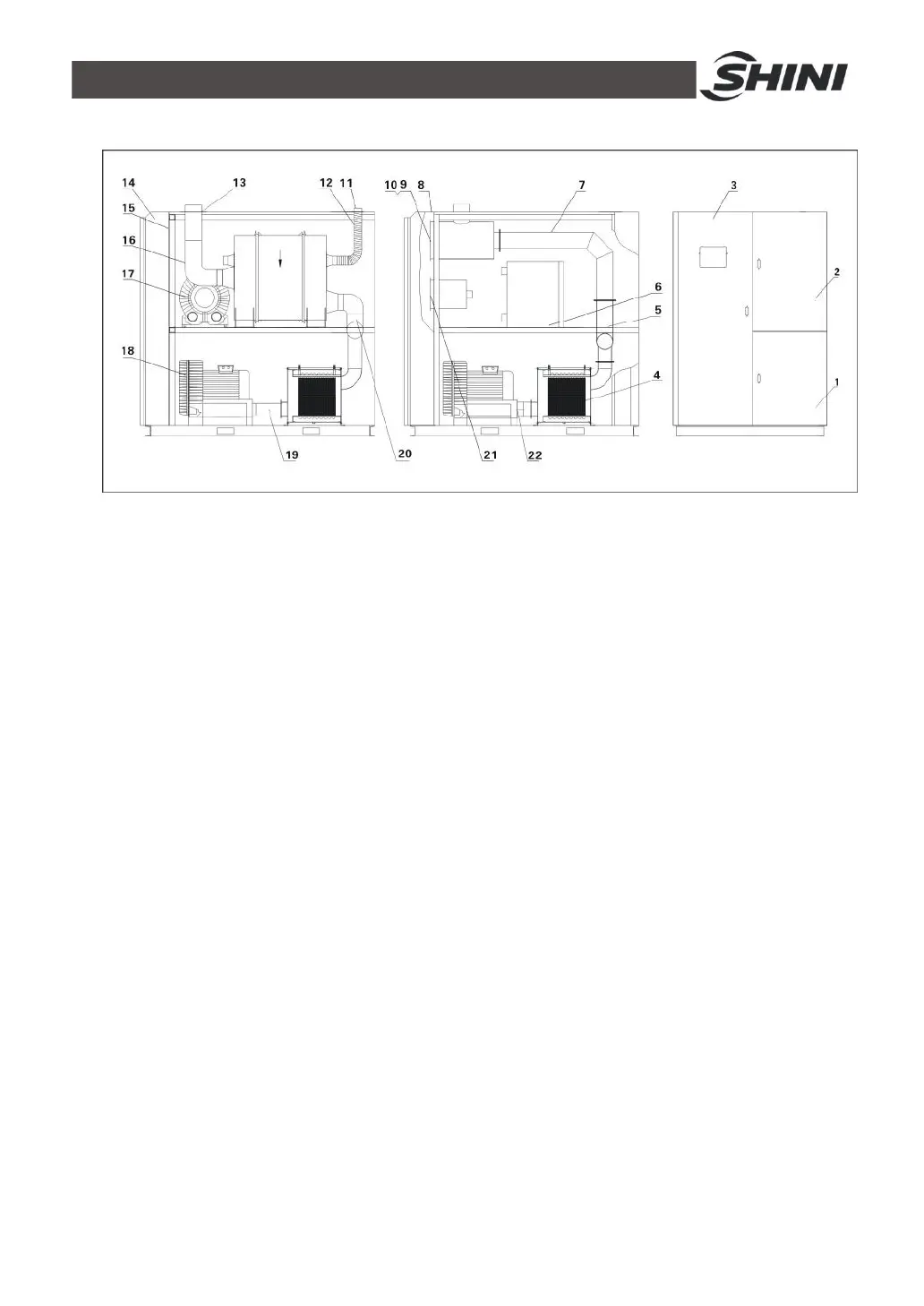

Parts name:
1. Right lower door 2. Right upper door 3. Right front door
4. Cooler 5. Air inlet pipe 6. Heating case components
7. Return air pipe 8. Filter component cabinet 9. Circulation filter barrel lid
10. Circulation filter barrel flange 11. Cooling flange 12. Heat-resistant air pipe
13. Outlet flange 14. Electrical control box
15. Electrical component installation plate 16. Heat-resistant air pipe
17. Regenerative blower 18. Drying blower 19. Cooler connection flange 2
20. Air outlet pipe 21. Regenerative filter tank cover 22. Cooler connection flange 1
Picture 2-4：Structural Drawing (SD-1000H~4000H)
