VM-7 System Manual  Chapter 2 Description of the System 
13
<Vibration/Displacement Monitor Module (VM-701)>
The Vibration/Displacement Monitor Module is a monitor that monitors the vibration level and
position of the shaft of rotating machineries, and thermal expansion difference between the rotor
and casing.
This module provides functions for measuring various type vibration and displacement of rotating
machineries through software and hardware settings, and is compatible with up to four channel
inputs.
Also, this module provide the recorder output corresponding to input signals and contact output, to
outside equipment via the rear panel of the instrument rack.

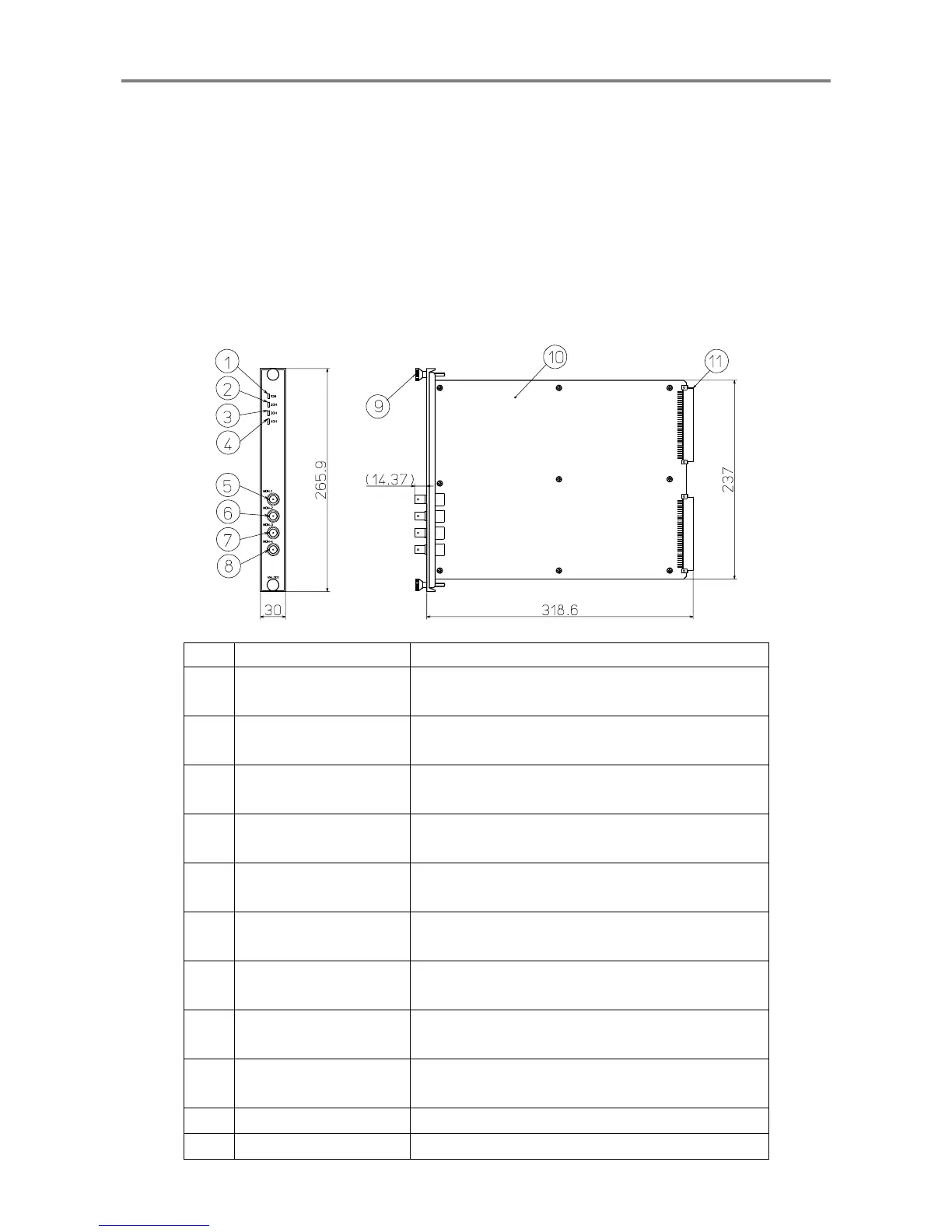

No. Name Function
①
1ch OK indicator
When 1ch is normal: Lights (in green).
When 1ch OK alarm is activated: Flashes.
②
2ch OK indicator
When 2ch is normal: Lights (in green).
When 2ch OK alarm is activated: Flashes.
③
3ch OK indicator
When 3ch is normal: Lights (in green).
When 3ch OK alarm is activated: Flashes.
④
4ch OK indicator
When 4ch is normal: Lights (in green).
When 4ch OK alarm is activated: Flashes.
⑤
1ch monitor output
connector
Outputs 1ch input signal via the buffer amplifier.
⑥
2ch monitor output
connector
Outputs 2ch input signal via the buffer amplifier.
⑦
3ch Monitor Output
Connector
Outputs 3ch input signal via the buffer amplifier.
⑧
4ch Monitor Output
Connector
Outputs 4ch input signal via the buffer amplifier.
⑨
Module fastener
This is used to fix the
vibration/displacement monitor
module
to the instrument rack.
⑩
Main board A board on which electronic parts are mounted
⑪
DIN connector A connector used for connecting to the motherboard
