Shinkawa VM-7 Series User Manual

30907E1.0
Issued Feb. 2009

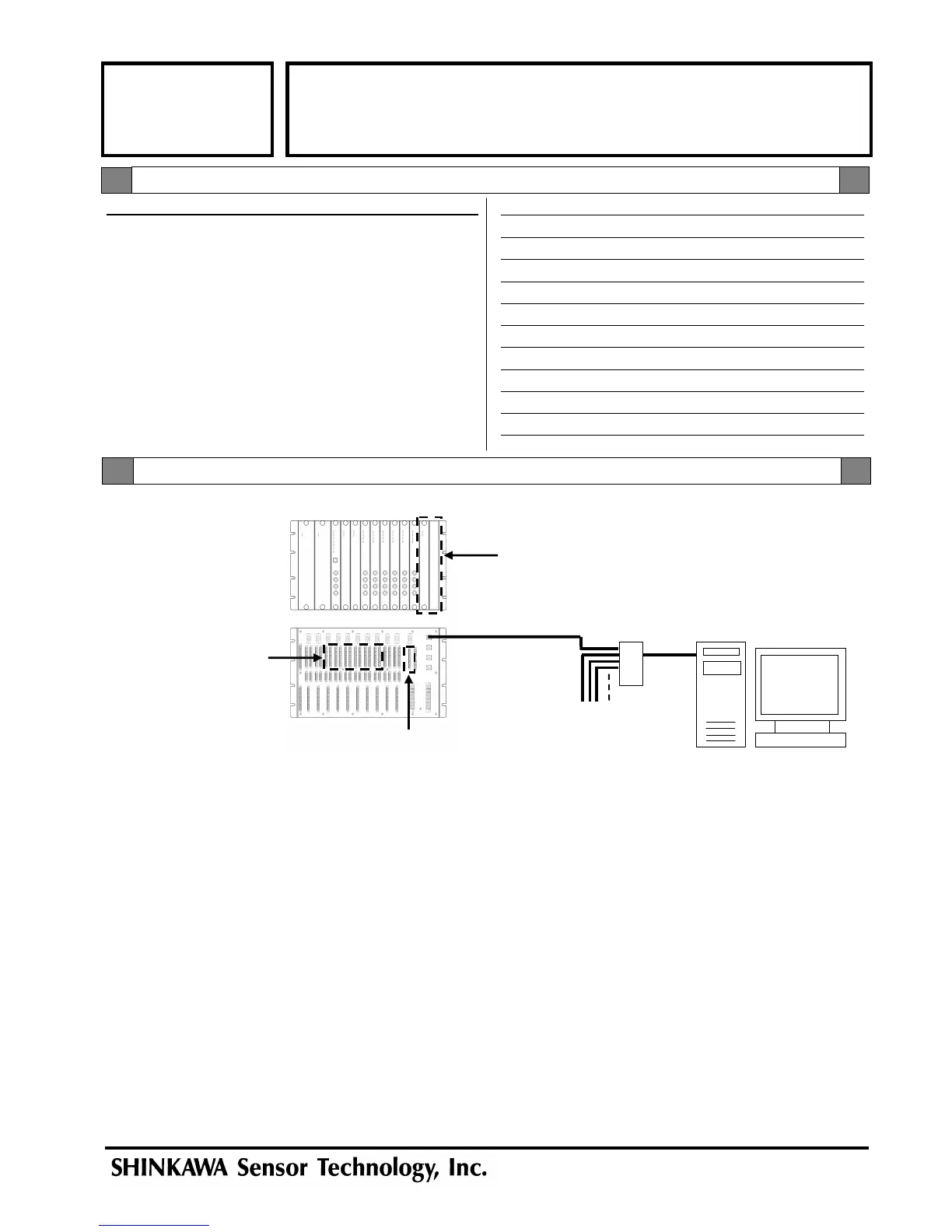

System Configuration
100Base-T
VM-773 ANALYSIS VIEW
This drawing shows a typical example when modules shown in the
following are installed to a VM-761 rack.
1 unit of VM-731 Analysis module,
6 units of VM-701 Vibration / Displacement monitor module,
2 units of VM-742 Network communication module,
1 unit of VM-741 Local communication & Phase marker module,
2 units of VM-751 Power supply module.
Max. 20 rack
HUB
Vibration signal input
(Slot 3 to 8)
Phase mark signal input
VM-731
Analysis Module
VM-731 ANALYSIS MODULE
Page 2of 2
VM-7 SERIES
SPECIFICATIONS
OTHERS
COMMUNICATION
IP Adress : 192.168.8.100
Subnet mask : 255.255.255.0
IP Port No. : 8882
Default value

Shinkawa VM-7 Series Specifications

General

Brand	Shinkawa
Model	VM-7 Series
Category	Measuring Instruments
Language	English
