Shinkawa VM-7 Series User Manual

Power supply Rating Install location Non-incendive *
1
Tropical spec.
1 AC100-240
1 P1slot（Primary）
1 Class I Division 2 CSA
3 DC24V
2 P2slot（Secondary）
4 DC110V
*1 In future

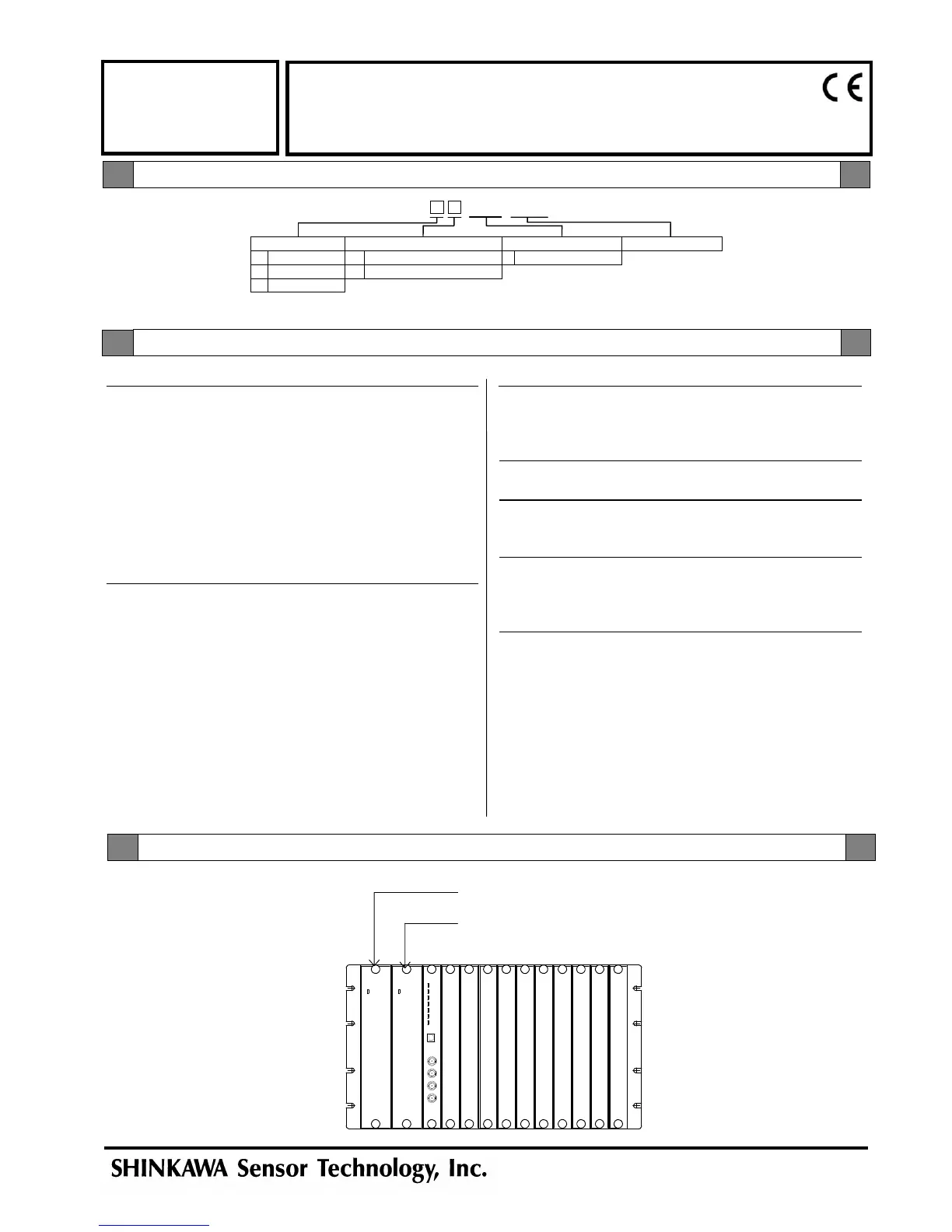

VM-75 POWER SUPPLY MODULE
Page 1 of 1
VM-7 SERIES
SPECIFICATIONS
ENVIRONMENTAL CONDITION
Operating temperature : 0 to +65°C
Storage temperature : -30 to +85°C
Relative humidity : 20 to 95%RH (noncondensing)
INSULATION RESISTANCE
Between power supply and contact ,GND : 100MΩ at 500VDC
DIELECTRIC STRENGTH
Between power supply and GND : 2000VAC one minute
Between contact and GND : 500VAC one minute
MATERIAL AND FINISH
Face plate : ABS（Black）
Sheet : Polyester tough top (Gray)
Base plate : Alminium alloy (Silver)
MASS
Body : Max. 3.0kg ( 6.6lb )
INPUT
Rated voltage : VM-751 (AC) : 100-240VAC/50-60H
Z
VM-753 (DC24V) : 24VDC
VM-754 (DC110V) : 110VDC
Rated power : VM-751 (AC) : 200VA*
2
VM-753 (DC24V) : 180W*
2
VM-754 (DC110V) : 180W*
2
*2 Full Installation(VM-741x1,VM-701x10)
Voltage range : VM-751 (AC) : 85 -264VAC
VM-753 (DC24V) : 24VDC±10%
VM-754 (DC110V) : 90-180VDC
OUTPUT
Power output : Output to each module via mother board
Rated Voltage : 26V (Primary)、24V (Secondary)
Rated Power : 150W
Indicators : POWER-OK LED (Green)
Turn on in normal output state
Contact output : Output in normal output state
Number of output points : 1points
Contact type : Dry CONTACT (SPDT)
Contact capacity : 250VAC / 5A、30VDC / 5A
Specification
Model Code / Additional Spec. Code ( )
No entry if additional
spec, code is not specified.
VM-75 /NB1 /TRP
Primary
Secondary
Rack Location
30911E1.1
Issued Feb. 2009
Revised Jul. 2009
