JIG DRILLING

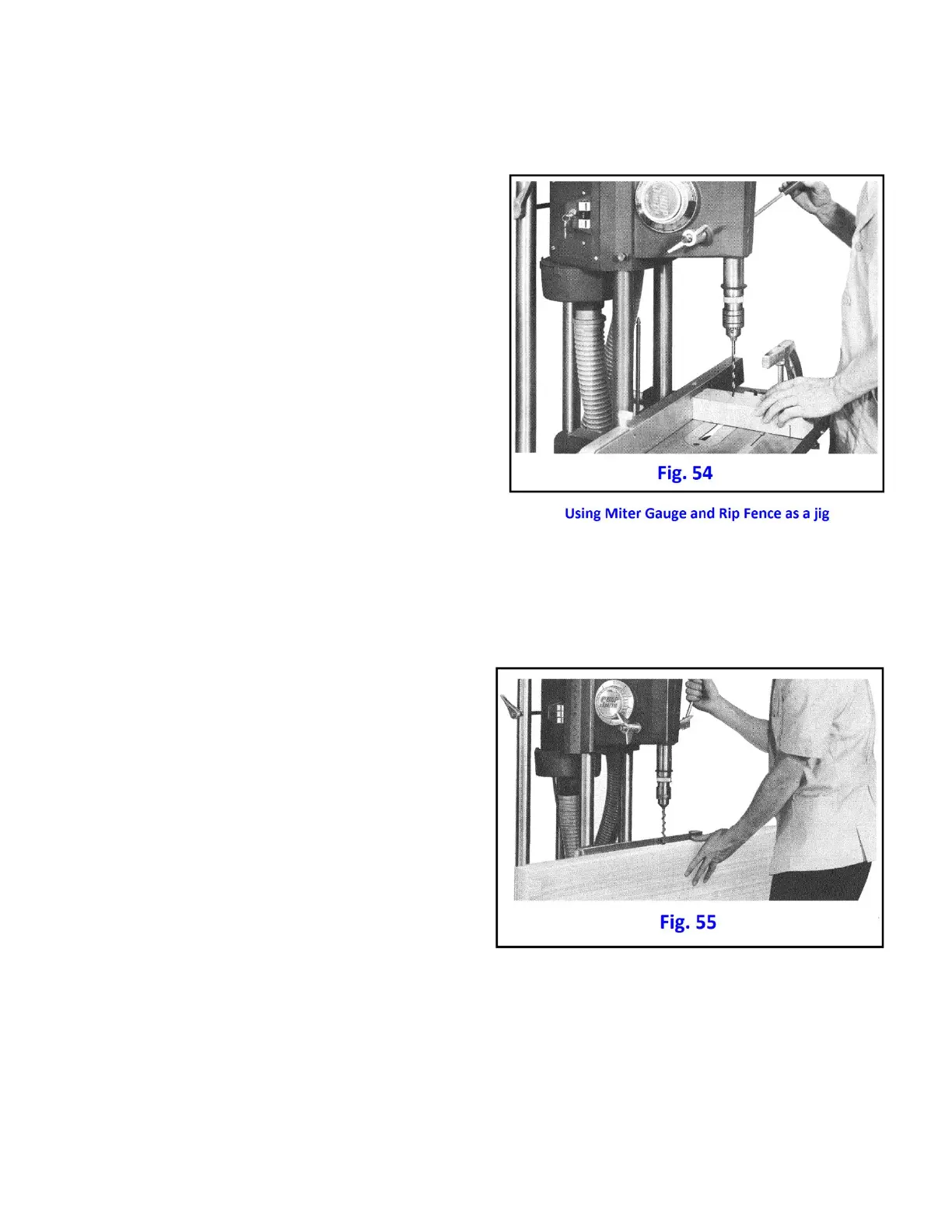

The rip fence and miter gauge may be utilized as jigs
for duplicate drilling (Fig. 54). Locate hole position on
one piece of stock and set fence and miter gauge to
position the work. The miter gauge is locked in place
with the miter gauge bar lock screw so that no clamps
are needed. Then place each piece in position and drill
the hole.
FLOOR MODEL DRILL PRESS
SHOPSMITH may be utilized as a floor model drill
press merely by tilting the table until it is parallel to
the tubes and adjusting it to gauge the position of
the work. Mortising or drilling for door locks is
typical of the operations conveniently handled with
this set up. (Fig. 55)
