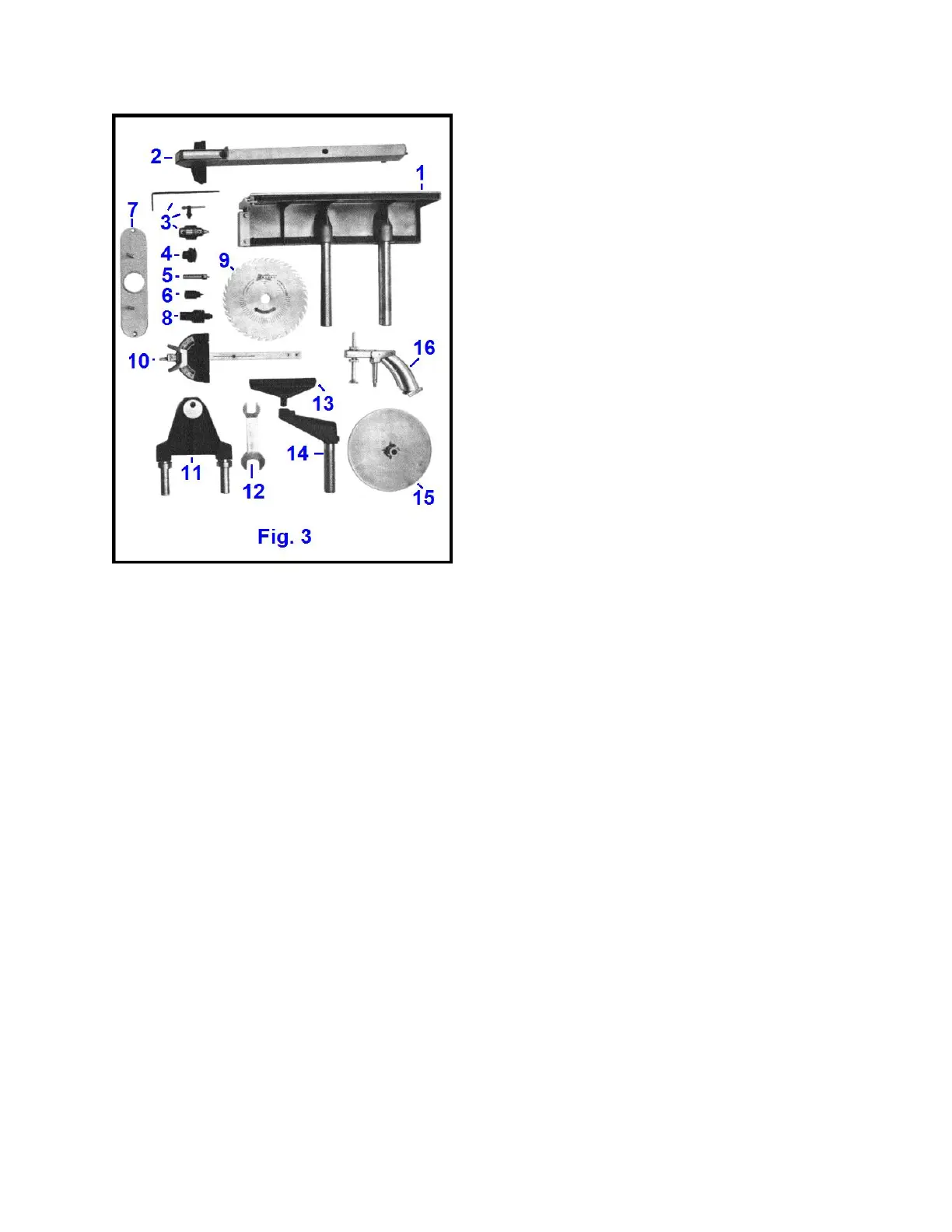

STANDARD ATTACHMENTS
(1) - Extension table - Mounts on either end of machine or to
table.
(2) - Rip fence - Used for ripping cuts on table saw. Also used as
guide, stop, support and jig for other operations.
(3) - Allen wrench, chuck and key - Jacobs chuck for tools with
5/64" - 1/2" diameter shanks. SHOPSMITH MARK VII Tool Kit.
(4) - 1-1/4" saw blade arbor - Special arbor for 9" and 10"
blades; attaches to main spindle and positions blade to minimize
run-out and wobble.
(5) - Cup center - For tailstock end of spindle turning. Seats in
tapered hole in eccentric cup mount.
(6) - Drive center - For spindle turning. Attaches to main spindle.
(7) - Shaper insert - For using shaper cutters or drum sander.
(8) - Universal arbor - 1/2" arbor with collars and spacers for
mounting shaper cutters or saw blades up to 8" diameter.
(9) - 10" saw blade - MAGNA all-purpose saw blade; used for
both crosscutting and ripping.
(10) - Miter gauge - Used for crosscutting and mitering operations on table saw. Also used as stop, guide and jig for many
other operations.
(11) -Tailstock - Holds eccentric for cup center mount.
(12) - Spanner wrench - for saw arbor.
(13) - Lathe tool rest - Guide and support for lathe turning tools.
(14) - Tool rest arm and post - Used in front hole of table carriage to support lathe tool rest.
(15) - Sanding disc - Double sided 10" sanding disc; one side flat and one side tapered for greatest versatility. Attaches to
spindle---balanced for vibration-free operation.
(16) - Miter Gauge Safety Grip - Provides added safety and accuracy and facilitates use of Miter Gauge.
PLUG-IN INSTALLATION
SHOPSMITH MARK VII is normally delivered set up and ready to go. All you have to do is plug it in. If for some
special reason you have SHOPSMITH MARK VII delivered in the crate, you can quickly set it up, following
directions.
CAUTION - Before starting the motor check your line fuses. Because a powerful motor draws an initial starting
load greater than required during continuous running, it is good practice to equip the circuit supplying current
to the machine with a DELAYED ACTION FUSE. This is the same type fuse called for on circuits for washing
machines, driers, and other household appliances. Operate the unit on a separate unloaded circuit.
If an extension cord is required it must be not smaller than #12 wire and no longer than 25 feet.
All electrical appliances should be grounded when in use. Be sure the SHOPSMITH power cord is plugged
into a grounded outlet.
