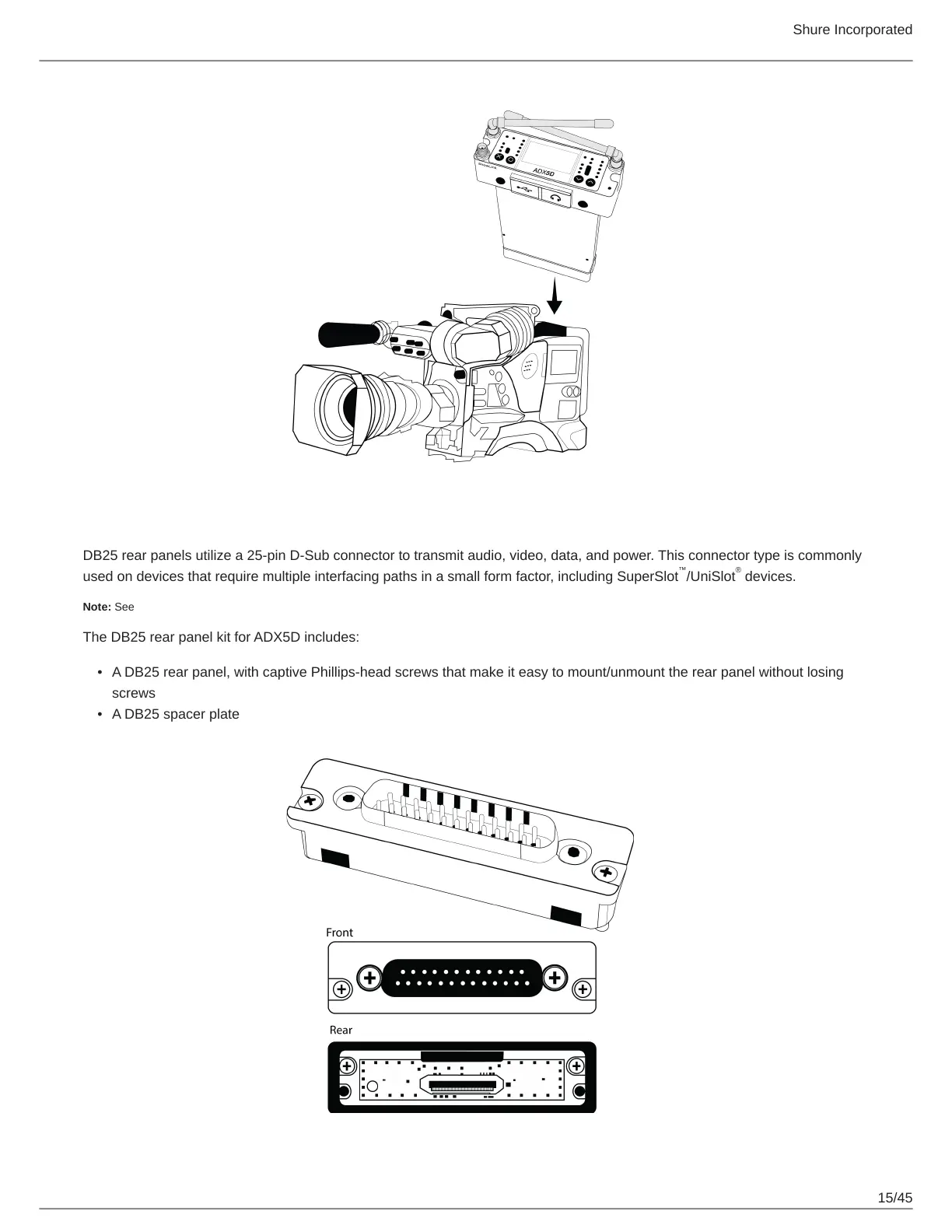

DB25 Backplate
DB25 rear panels utilize a 25-pin D-Sub connector to transmit audio, video, data, and power. This connector type is commonly
used on devices that require multiple interfacing paths in a small form factor, including SuperSlot /UniSlot devices.
Note: See Country-Specific Functionality Restrictions.
The DB25 rear panel kit for ADX5D includes:
A DB25 rear panel, with captive Phillips-head screws that make it easy to mount/unmount the rear panel without losing
screws
A DB25 spacer plate
™ ®
