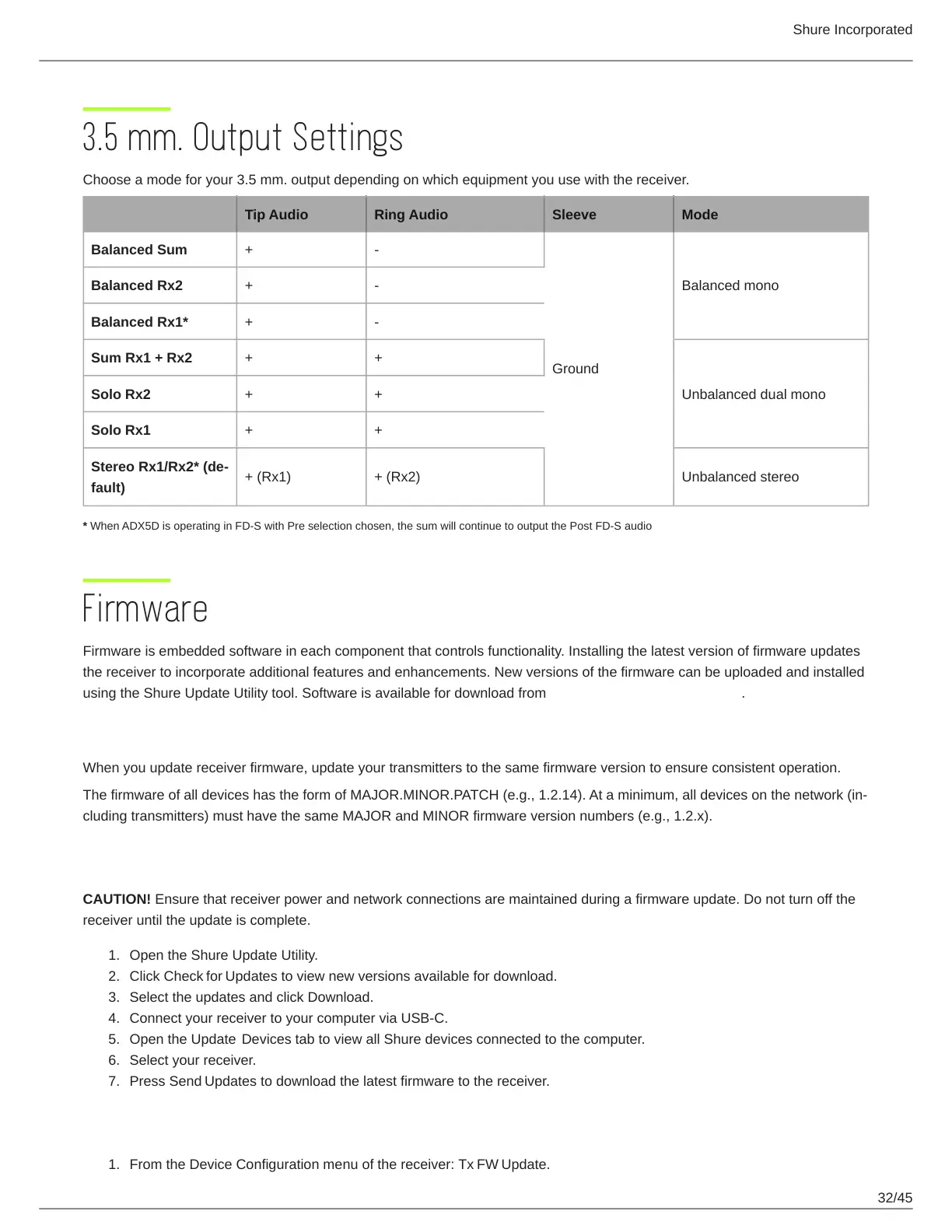

3.5 mm. Output Settings
Choose a mode for your 3.5 mm. output depending on which equipment you use with the receiver.
Tip Audio Ring Audio Sleeve Mode
Balanced Sum + -
Ground
Balanced monoBalanced Rx2 + -
Balanced Rx1* + -
Sum Rx1 + Rx2 + +
Unbalanced dual monoSolo Rx2 + +
Solo Rx1 + +
Stereo Rx1/Rx2* (de
fault)
+ (Rx1) + (Rx2) Unbalanced stereo
* When ADX5D is operating in FD-S with Pre selection chosen, the sum will continue to output the Post FD-S audio
Firmware
Firmware is embedded software in each component that controls functionality. Installing the latest version of firmware updates
the receiver to incorporate additional features and enhancements. New versions of the firmware can be uploaded and installed
using the Shure Update Utility tool. Software is available for download from http://www.shure.com/firmware.
Firmware Versioning
When you update receiver firmware, update your transmitters to the same firmware version to ensure consistent operation.
ThefirmwareofalldeviceshastheformofMAJOR.MINOR.PATCH(e.g.,1.2.14).Ataminimum,alldevicesonthenetwork(in
cluding transmitters) must have the same MAJOR and MINOR firmware version numbers (e.g., 1.2.x).
Updating the Receiver Firmware
CAUTION! Ensure that receiver power and network connections are maintained during a firmware update. Do not turn off the
receiver until the update is complete.
Open the Shure Update Utility.
Click Check for Updates to view new versions available for download.
Select the updates and click Download.
Connect your receiver to your computer via USB-C.
Open the Update Devices tab to view all Shure devices connected to the computer.
Select your receiver.
Press Send Updates to download the latest firmware to the receiver.
Updating the Transmitter Firmware
From the Device Configuration menu of the receiver: Tx FW Update.
