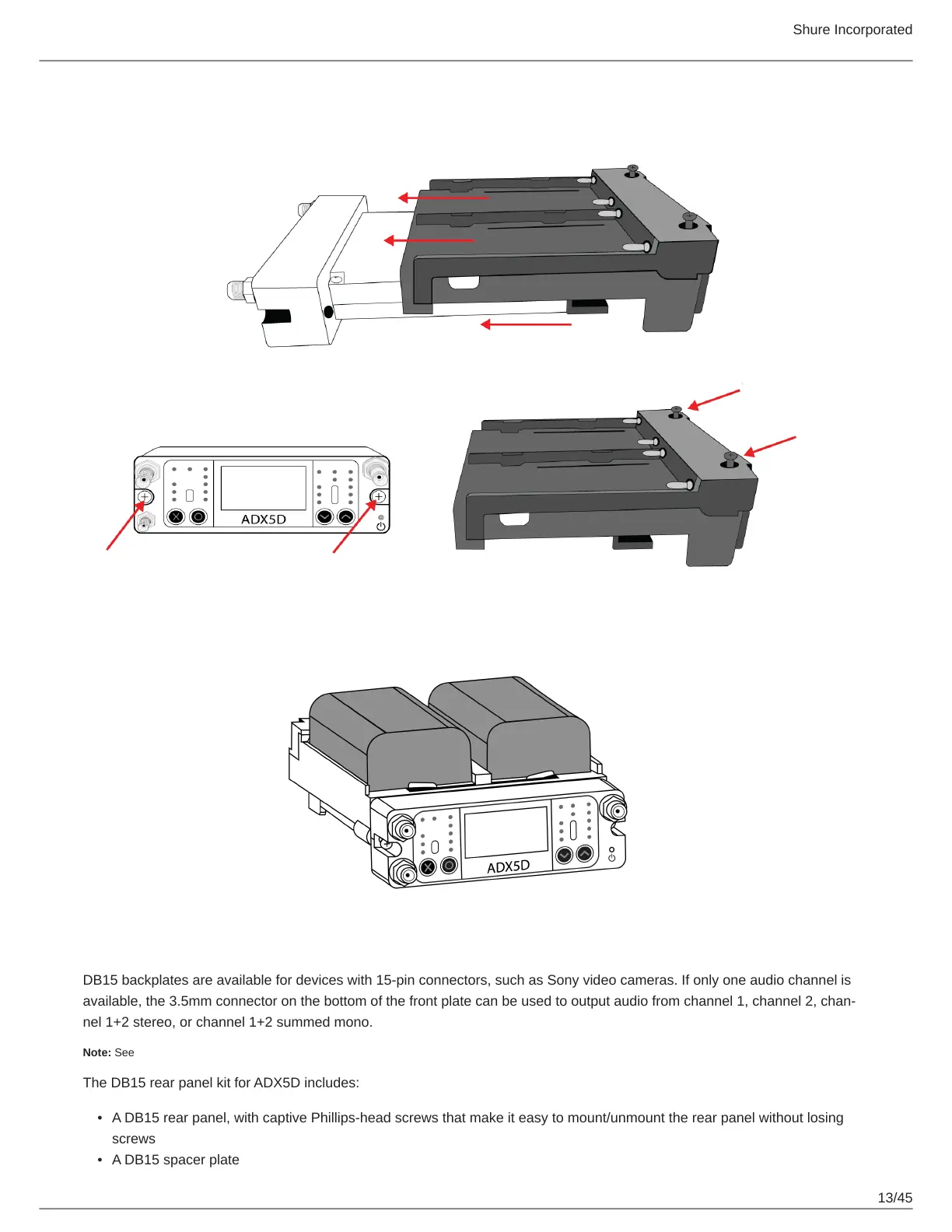

DB15 Backplate
DB15 backplates are available for devices with 15-pin connectors, such as Sony video cameras. If only one audio channel is
available,the3.5mmconnectoronthebottomofthefrontplatecanbeusedtooutputaudiofromchannel1,channel2,chan
nel 1+2 stereo, or channel 1+2 summed mono.
Note: See Country-Specific Functionality Restrictions.
The DB15 rear panel kit for ADX5D includes:
A DB15 rear panel, with captive Phillips-head screws that make it easy to mount/unmount the rear panel without losing
screws
A DB15 spacer plate
