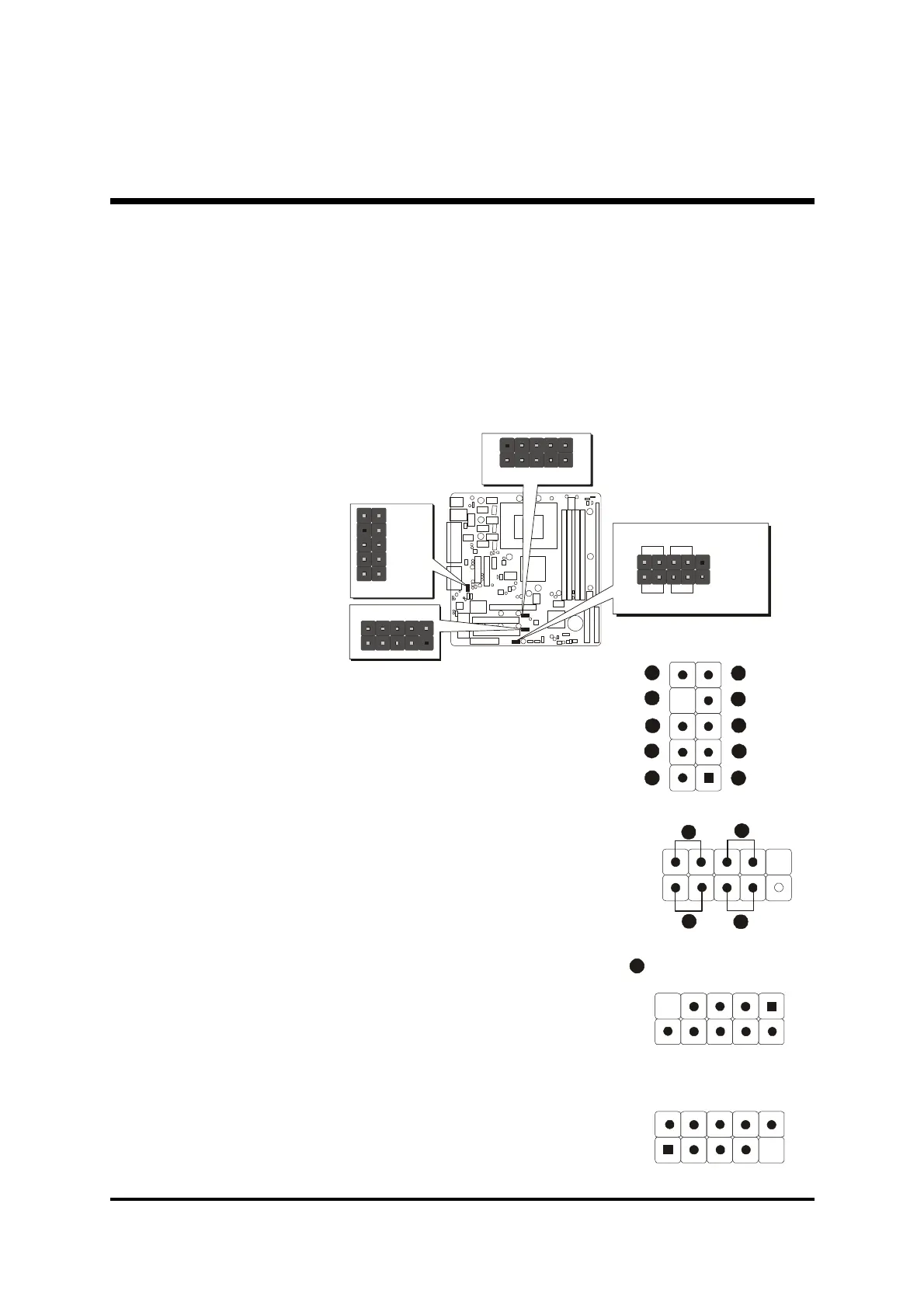

Step 6
Connect Front Panel Switches/LEDs/USB
You can find there are several different cables already existing in the system
case and originating from the computer's front-panel devices (HDD LED,
Power LED, Reset Switch, Audio Line-out, Microphone-in, or USB devices
etc.) These cables serve to connect the front-panel switches, LEDs, and USB
connectors to the mainboard's front-panel connectors group , as shown
below.
PANEL 1
1. MIC IN
2. GND
3. VCC MIC
4. +5V Audio
5. Line Out(R)
6. Line Out(R)
7. NC
8. Empty
9. Line Out(L)
10. Line Out(L)
PANEL 2
11.HDD_LED(HD_LED)
12. Green LED (SP_LED)
13.Reset Switch(RST)
14.Power Switch (PW_BN)
15.Extend USB headers(USB1/USB2)
12
3
4
56
7
8
9
10
PANEL 1
USB port 3
USB port 4
USB port 6
USB 1
USB 2
USB port 5
15
1
1
SP_LED
HD_LED
+
-
RST
PW-BN
PANEL2
1
2
MIC In
Line Out(R)
Line Out(L)
(Pins 1,2)
(Pins 5,6)
(Pins 9,10)
PANEL1
USB2
1
2
USB1
1
2
1
HD_LED
SP_LED
RST
PW_BN
14
12
11 13
PANEL 2
