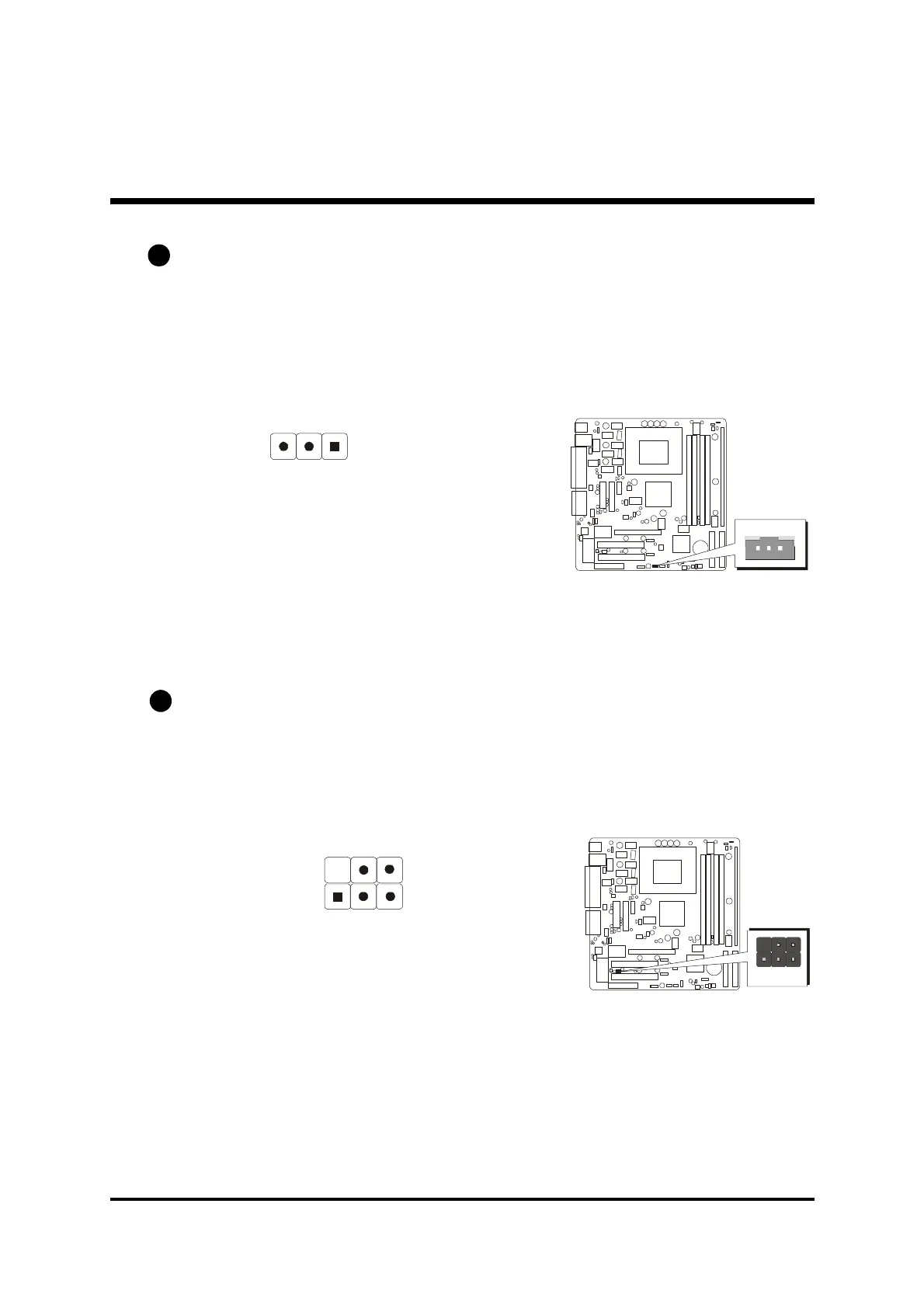

Wake-On-Modem Connector (WOM1)
If you have installed a modem, use the cable provided with the modem to
plug into the mainboard WOM1 connector. This enables the Wake On
Modem(WOM) feature. When you system is in a power-saving mode, any
modem signal automatically resumes the system. You must enable this item
using the Power Management page of the Setup Utility.
Pins Assignment:
1=5VSB
2=Ground
3=SENSE
E4
E5
IR Header (SIR1)
The mainboard supports a Serial Infrared (SIR) data port. Infrared ports allow
the wireless exchange of information between your computer and similarly
equipped devices such as printers, laptops, Personal Digital Assistants (PDAs),
and other computers.
Pins Assignment:
1=NC 2=KEY
3=+5V 4=GROUND
5=IRTX 6=IRRX
1
WOM1
3 2 1
1
SIR1
2 4 6
1 3 5
