F Other Connectors

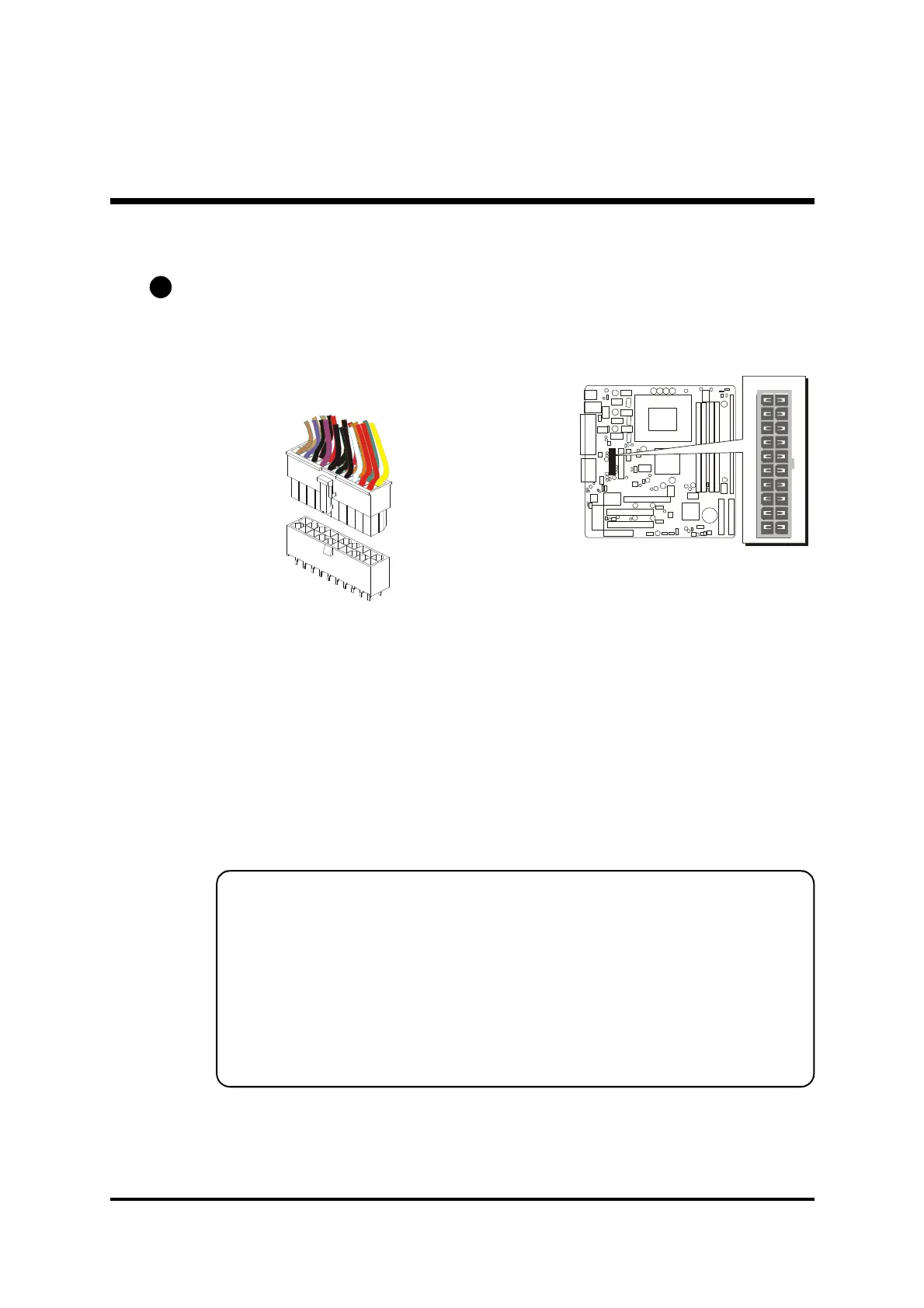

ATX Power Supply Connector (CN5)
This motherboard uses 20-pin Pentium 4 standard ATX power header,
CN5 and comes with another headers.
A traditional ATX system should remain at power off stage when AC power
resumes from power failure. In such case, if there is no an UPS to keep
power-on, the kind of design is inconvenient for a network server or worksta-
tion.
However, this motherboard implements an AC Power Auto Recovery
function to solve this problem. You may enable the function PWRON After
PWR-Fail

that is under sub-menu of Power Mangement Setup through BIOS
setup program.
Note 1: The ATX power connector is directional and will not go in unless
the guides match perfectly making sure that pin#1 is properly
positioned.
Note 2: Make sure the latch of the ATX power connector clicks into place
to ensure a solid attachment.
Note 3: Your ATX power supply must be supplied to ACPI +5V standby
power and at least 720mA compatible.
Note 4: Make sure your power supply have enough power for higher
speed processor installed.
CN5
CN5
