Shuttle MV43 - CPU & System Fan Connector; Wake-On Lan Connector (WOL1)

- 38 -

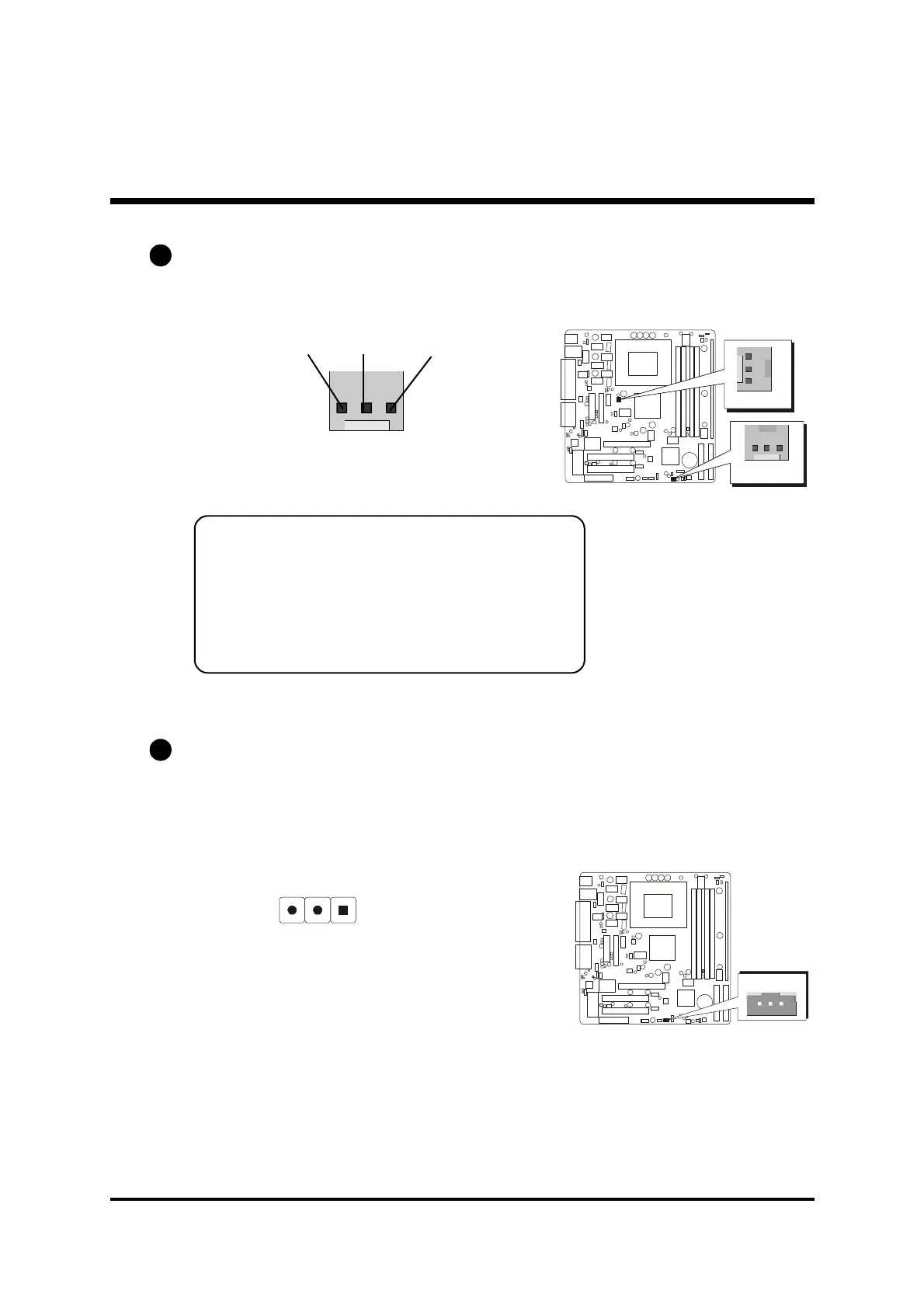

CPU and System Fan connectors (CPU-FAN, SYSTEM-FAN)
The mainboard provides two onboard 12V cooling fan power connectors to
support CPU and System cooling fans.
Note: Both cable wiring and type of plug may
vary , which depends on the fan maker.
Keep in mind that the red wire should
always be connected to the +12V header
and the black wire to the ground (GND)
header.
Wake-On-LAN Connector (WOL1)
Attach a 3-pin connector through the LAN card which supports the Wake-
On-LAN (WOL1) function. This function lets users wake up the connected
system through the LAN card.
E2
E3
Pins Assignment:
1=5VSB
2=Ground
3=SENSE
CPU FAN with rotate sense.
System FAN with rotate sense.
SENSE
GND +12V
1
SYSTEM_FAN
CPU_FAN
3 2 1
1
WOL1
