Shuttle MV43 - STEP 2 Set Jumpers; STEP 3 Install DDR SDRAM System Memory

- 14 -
Step 2.
Set Jumpers
The default jumper settings have been set for the common usage standard of
this mainboard. Therefore, you do not need to reset the jumpers unless you
require special adjustments as any of the following cases:
1. Clear CMOS
2. CPU Clock Setting
3. DRAM Type and Voltage Setting
4. Keyboard power on Setting
For first-time DIY system builders, we recommend that you do not change the
default jumper settings if you are not totally familiar with the mainboard
configuration procedures. The factory-set default settings are tuned for opti-
mum system performance. For the advanced users who wish to customize
their system, section 3.2 Jumper Settings will provide detailed information
on how to configure your mainboard manually.

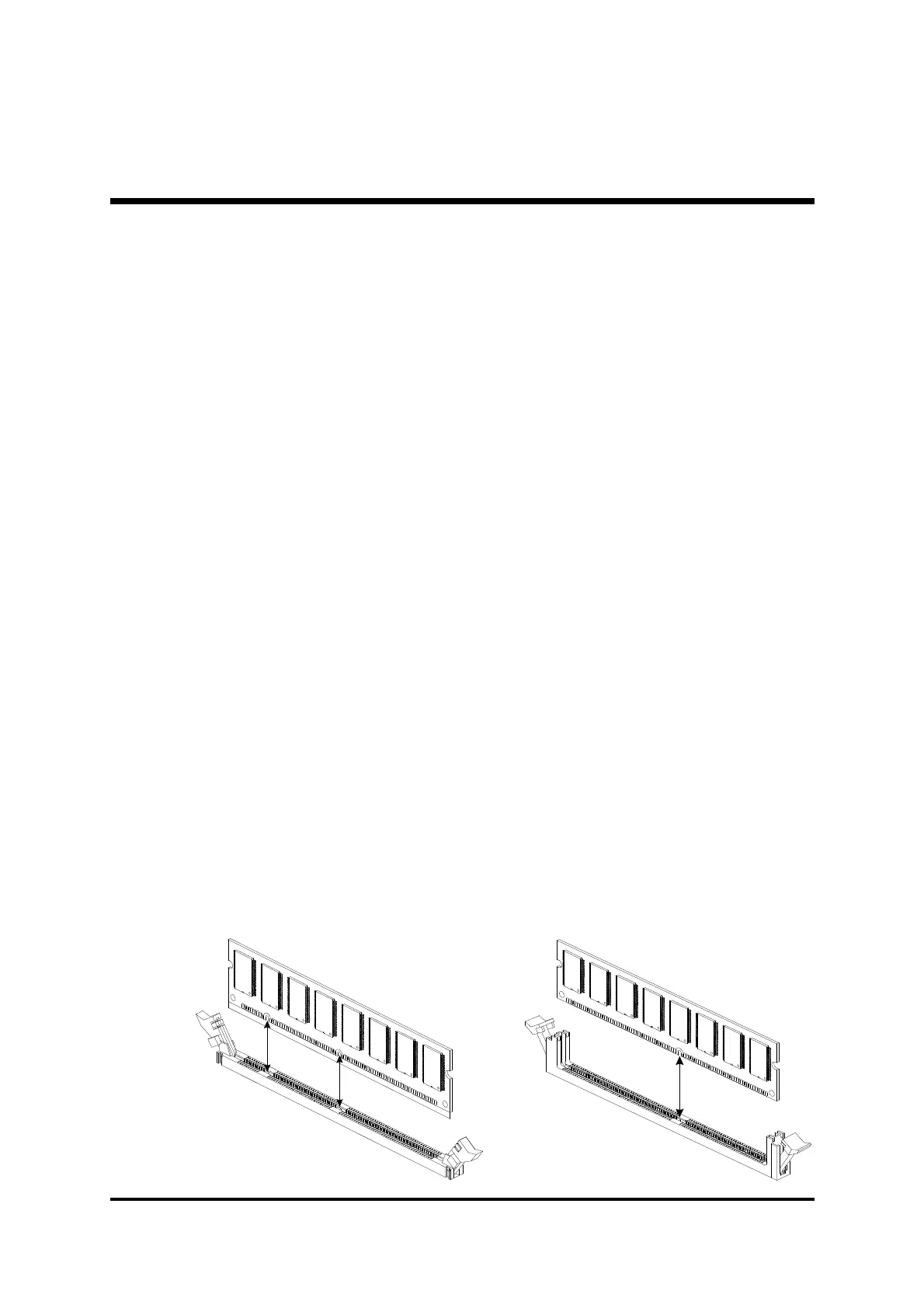

Step 3
Install DDR or SDR SDRAM System Memory
To insert memory module(s) in any one or two DIMM slot(s). Please note that
modules are directional and will not go in the DIMM slots unless properly
oriented. After the module is fully inserted into the DIMM slots, lift the clips
of both sides of the DIMM slot to lock the module in place.
SDR SDRAM DDR SDRAM
