Jumpers & Connectors Guide

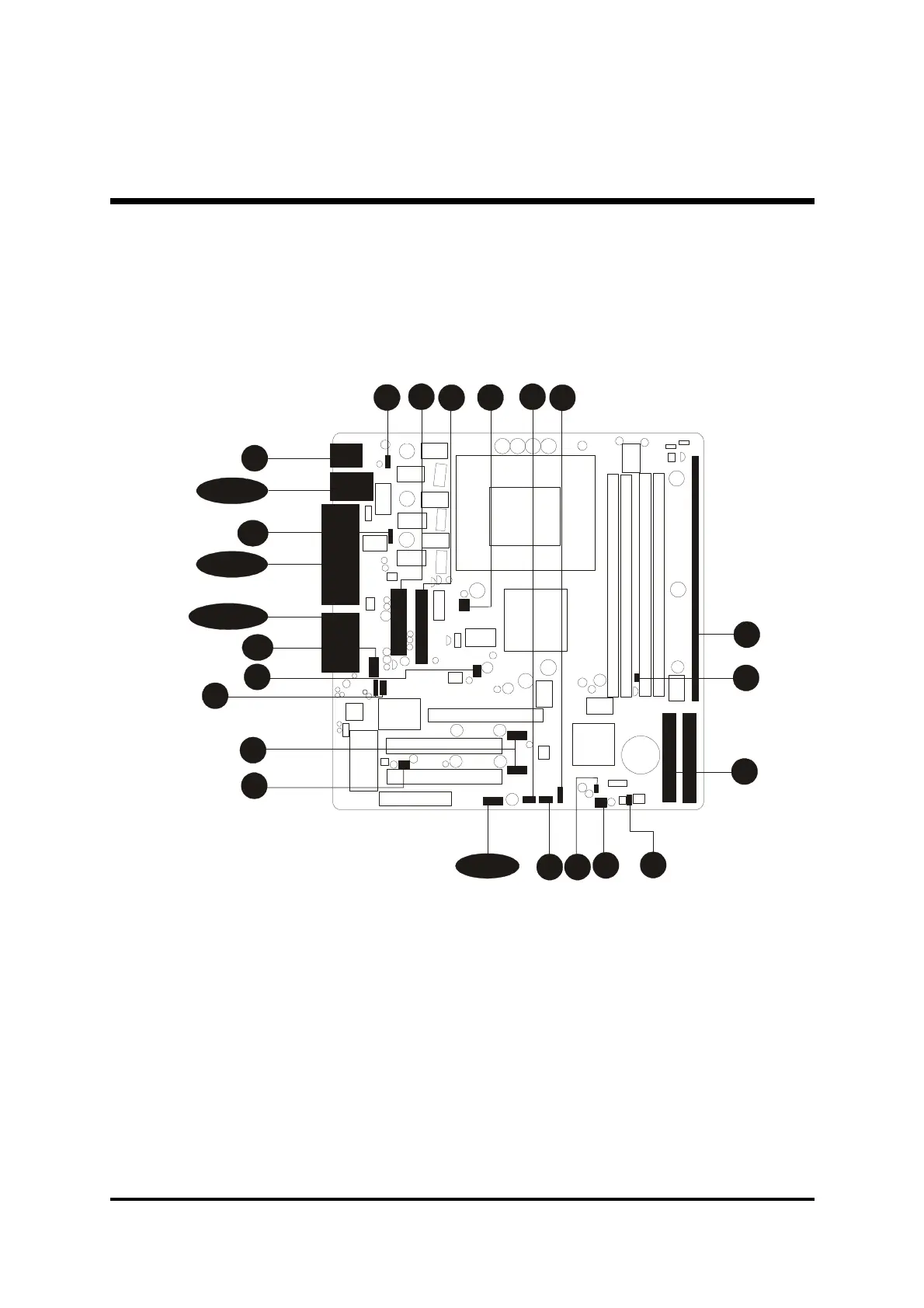

Use the mainboard layout on page 11 to locate CPU socket, memory banks,
expansion slots, jumpers and connectors on the mainboard during the instal-
lation. The following list will help you to identify jumpers, slots, and connec-
tors along with their assigned functions:
CPU/Memory/Expansion Slots
Socket478 : CPU Socket for Pentium 4 processors
DIMM1/2 : Two DIMM Slots for 16, 32, 64, 128, 256, 512
MB, and 1GB of 3.3V SDR SDRAM
DDR1/2 : Two DIMM Slots for 64, 128, 256, 512 MB, and
1GB of 2.5V DDR SDRAM
(The total installed memory does not exceed 2GB)
AGP : One AGP (Accelerated Graphics Port) Slot
PCI : Two 32-bit PCI Expansion Slots
CNR : Communication Network Riser slot
B2~B3
B4~B6
B7~B10
B1
E5
C8
C7
C5
C6
E1
E3
C1~C4
E7
E2
E2
E4
D1
E6
A1
A3
A3
A4
A2
D1
