- 32 -

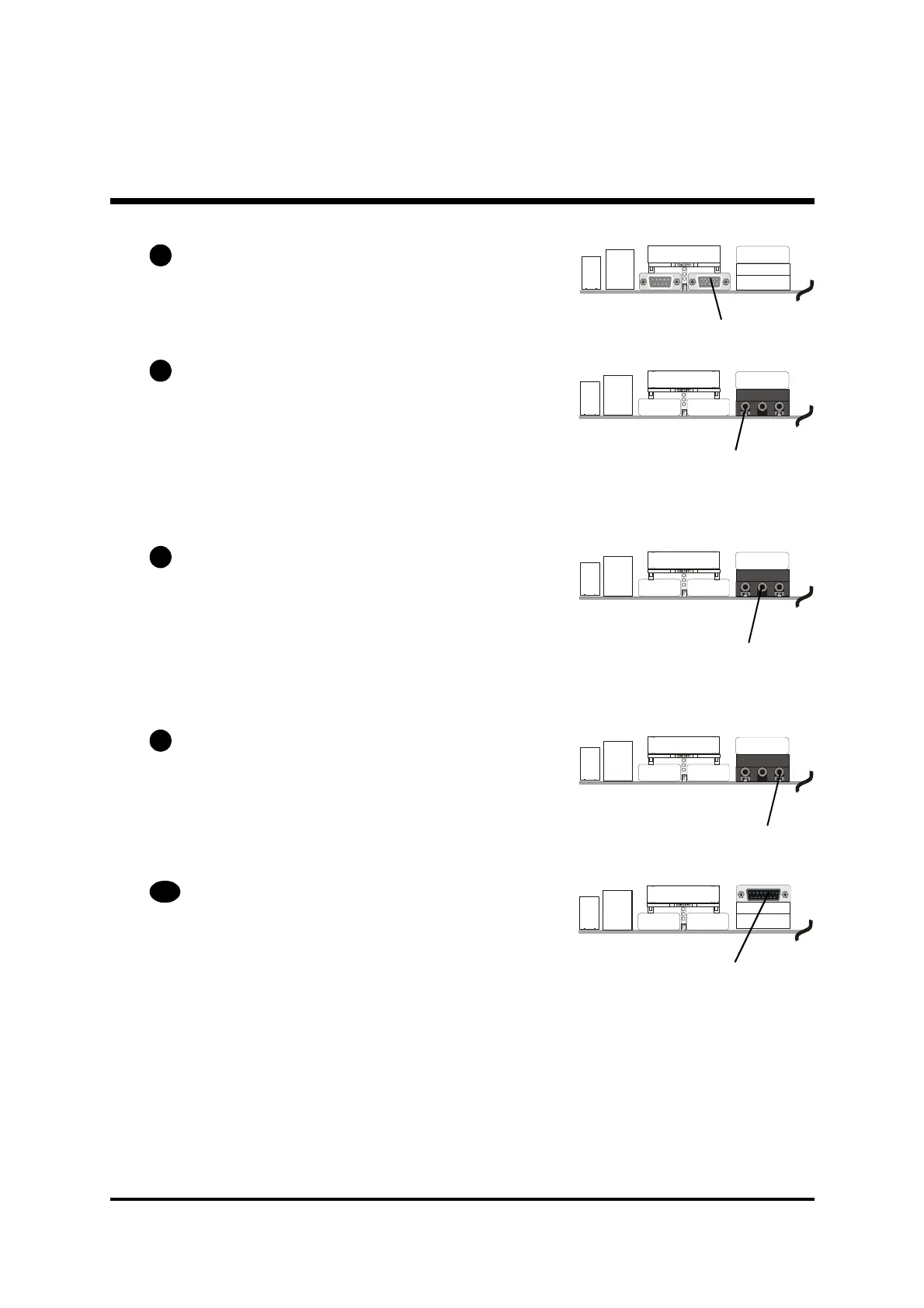

VGA Connector
One 15-pin VGA connector is located at the
rear panel of the mainboard.
Line-Out Port Connector
Line-Out is a stereo output port through
which the combined signal of all internal
and external audio sources on the board is
output. It can be connected to 1/8-inch TRS
stereo headphones or to amplified speakers.
Line-In Port Connector
Line-In is a stereo line-level input port that
accepts a 1/8-inch TRS stereo plug. It can
be used as a source for digital sound record-
ing, a source to be mixed with the output,
or both.
Mic-In Port Connector
Mic-In is a 1/8-inch jack that provides a
mono input. It can use a dynamic mono or
stereo microphone with a resistance of not
more than 600 Ohms.
MIDI/GAME Port Connector
The MIDI/GAME port is a 15-pin female con-
nector. This port can be connected to any
IBM PC compatible game with a 15-pin D-
sub connector.
MIDI Instrument Connection
You will need a MIDI adapter to connect a MIDI compatible instrument
to the sound card. The MIDI adapter can in turn be connected to the
Joystick/MIDI port. You will also need the MIDI sequencing software to
run MIDI instruments with your computer etc. into this connector.
VGA Port
B6
B7
B8
B9
Line-Out Port
Line-In Port
Mic-In Port
B10
MIDI/GAME Port
