Corresponding mounting brackets with integrated vibration/shock damping can be
found in the product catalog, for example, under:
b
www.sick.com/CLV63x
b
www.sick.com/CLV64x
b
www.sick.com/CLV65x
NOTICE
Equipment damage due to unsuitable device variants!
Mounting with shock mounts is not suitable for the device variant with oscillating mirror.
•
Mounting bracket with integrated vibration/shock absorption only for device vari‐
ants with front reading window.

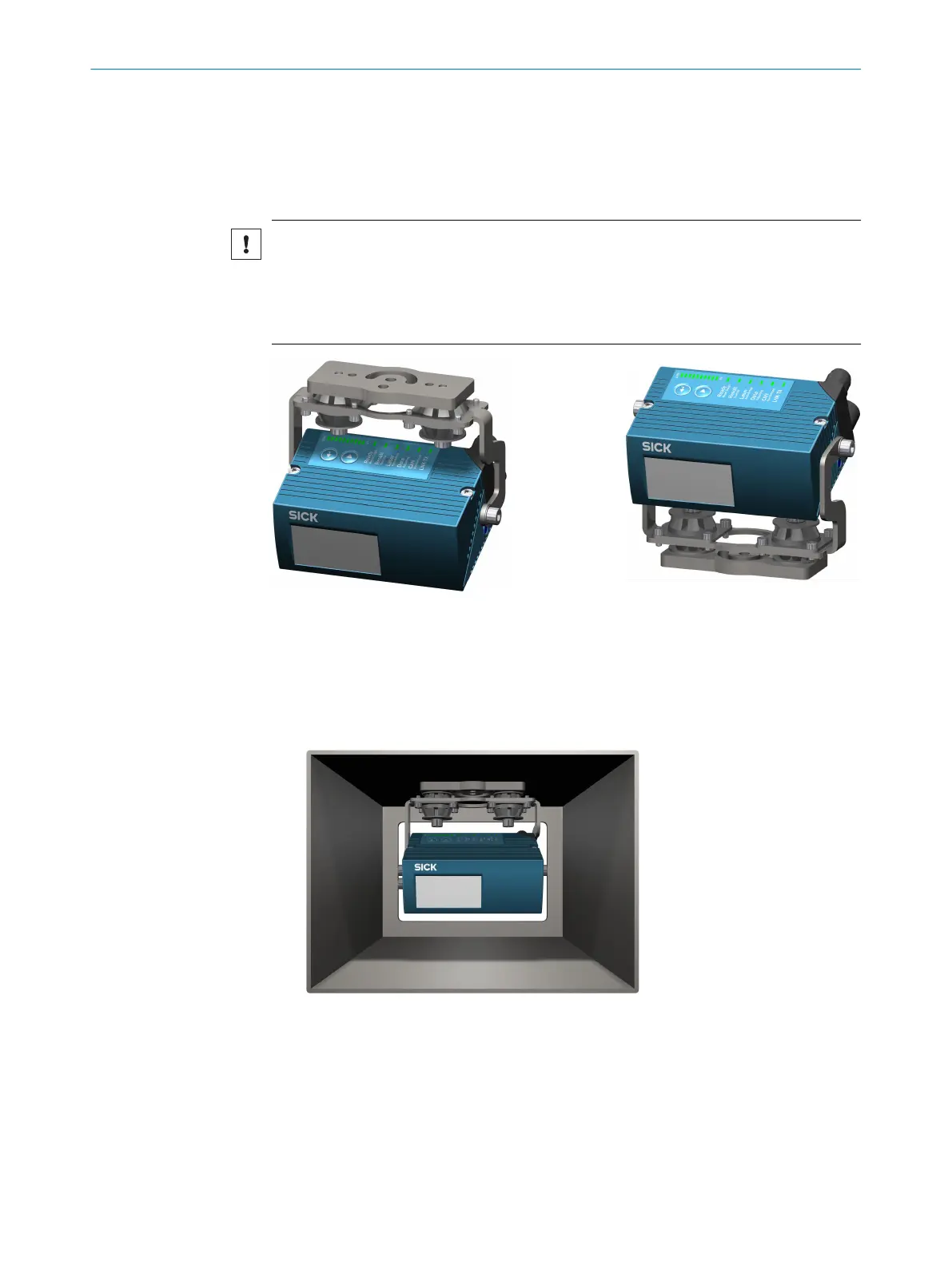

Figure 20: Device with mounting
bracket (top bracket)
Figure 21: Device with mounting
bracket (bottom bracket)
Permissible installation variants
The following installation variants can be selected:
1. Mounting line scanner (horizontal reading line), mounting bracket with integrated
vibration/shock absorption for suspended horizontal mounting above the device.
Figure 22: Mounting with top mounting bracket
MOUNTING 5
8019588/129Z/2019-02-07 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV63x, CLV64x, CLV65x
