2. Mounting line scanner (horizontal reading line), mounting bracket with integrated
vibration/shock absorption for standing horizontal mounting under the device.

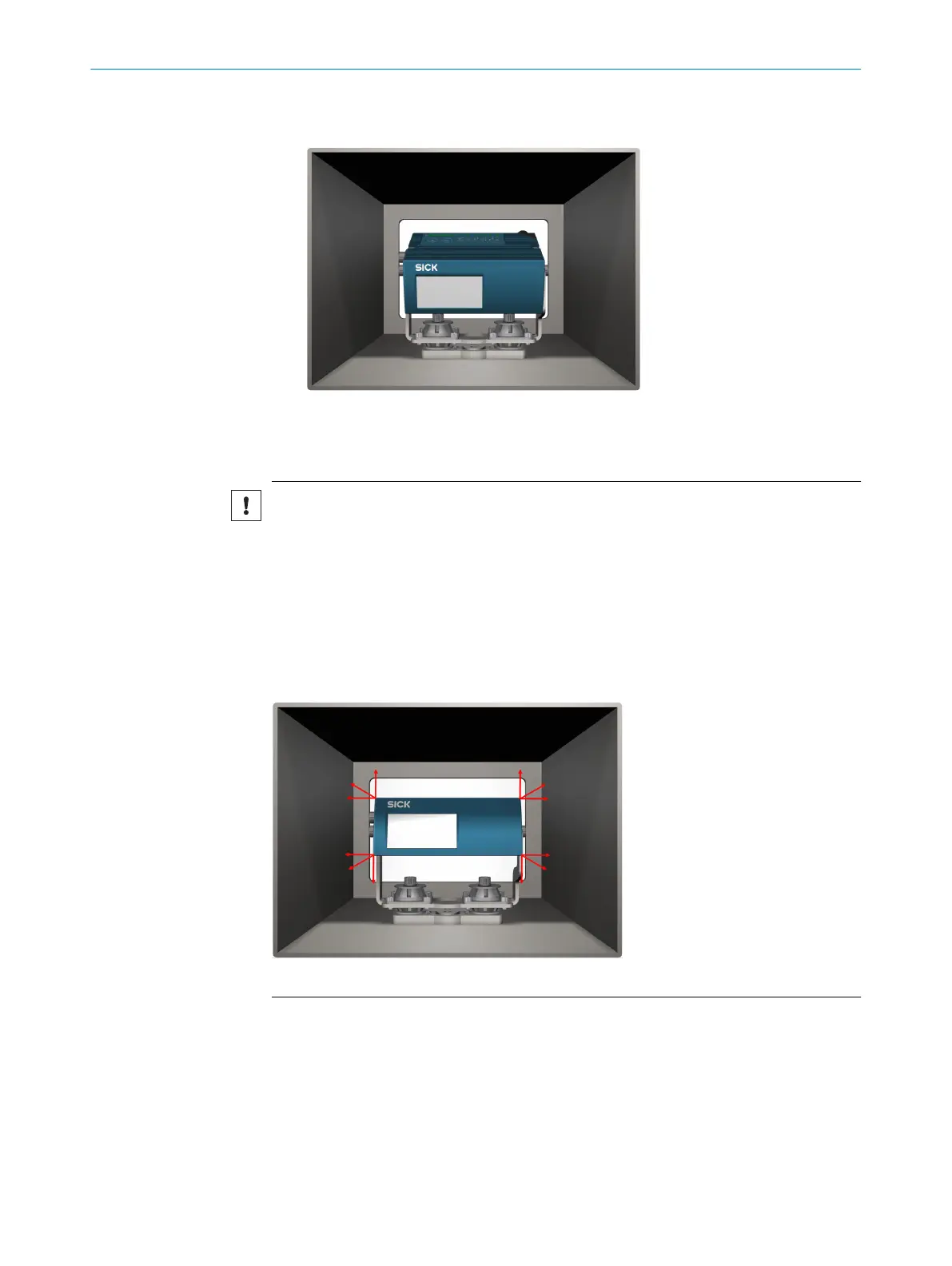

Figure 23: Mounting with bottom mounting bracket
Mounting the device
NOTICE
Damage to device through improper mounting!
In order to avoid damage during the mounting and subsequent operation of the device,
you must following the following points:
b
Mount the shock mount horizontally above or below the device.
b
Only use the screws provided.
b
Take into account the minimum 25 mm duty stroke in all axis directions of the
device (see figure 24, page 36). This applies in particular to the installation.
b
Dimension the length of the leads according to the duty stroke to ensure strain
relief.
Figure 24: Mounting with mounting bracket – Taking into account the duty stroke
When mounting a bracket with shock mount, ensure that the holding plate/mounting
bracket is screwed directly to the device and the attenuation is attached as closely as
possible to the device. The shock mount must always be mounted horizontally above or
below the device to achieve optimal vibration attenuation.
Mount the device to the bracket with shock mounts with the help of a minimum of two
M5 blind tapped holes. The blind tapped holes are located in pairs on both of the nar‐
row sides of the device, see "Dimensional drawings", page 99.
5
MOUNTING
36
O P E R A T I N G I N S T R U C T I O N S | CLV63x, CLV64x, CLV65x 8019588/129Z/2019-02-07 | SICK
Subject to change without notice
