4.3.1 Use fibers with thin end sleeves
1
2
3

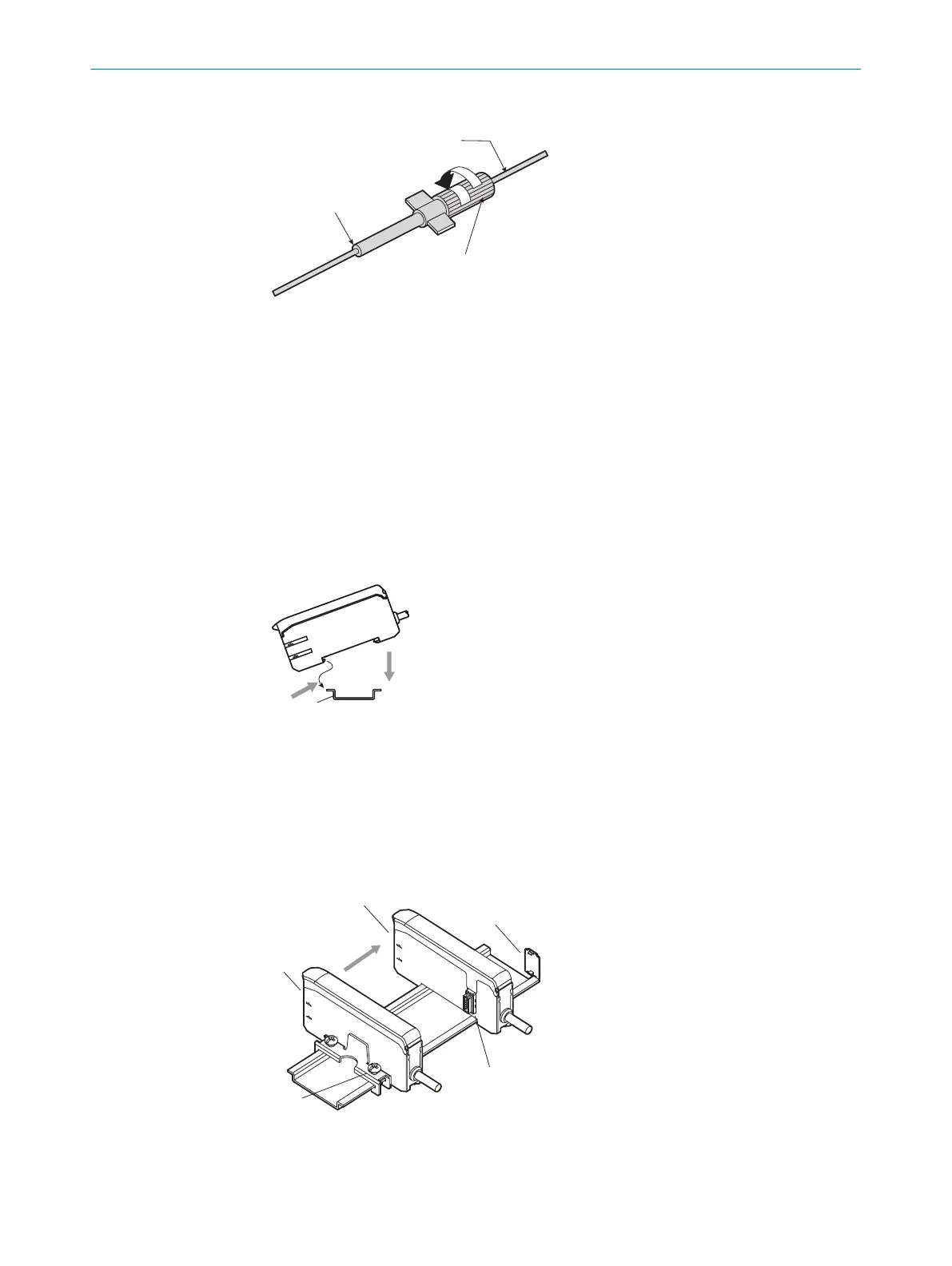

Figure 4: Fiber with thin end sleeve
1
Fiber with thin end sleeve
2
Separation position
3
Adjustment cap
1.
Completely rotate the adjustment cap 3counter-clockwise and guide the fibers in
1.
2.
Rotate the adjustment cap 3 clockwise to close it.
3. Disconnect excess fibers.
4.4 Mounting the device
Mounting the device on mounting rail
1
Figure 5: Installation on mounting rail
1
Mounting rail
1.
Clip the device into the mounting rail 1.
2. Press down from above to lock.
4.5 Expanding evaluation unit
1
2
3
4
5
Figure 6: Expanding base unit
1
Expansion unit
2
Base unit
MOUNTING 4
