SICK KTL180 - Dimensional Drawings

Attribute Value
Circuit protection U
V
connections reverse polarity protected, inputs and outputs
reverse polarity protected, interference suppression, outputs
overcurrent and short-circuit protected
Enclosure rating IP 50
3)
Housing material PC
Weight Cable type: 71 g, M8 type: 25 g
1)
Max. ambient temperature: +55 °C
Temp./max. number of devices:
–25 … +55 °C / 3 devices (load current: 100 mA max.)
–25 … +50 °C / 8 devices (load current: 50 mA max.)
–25 … +45 °C / 16 devices (load current: 20 mA max.)
2)
Class 2 voltage supply
3)
UL housing type 1
11.2 Dimensional drawings
Device variant without bus male connector (standalone)
8
8
10,4
12,2
37,3
7,7
2 x Ø 2,3
5,7
4,3
34,6
3
68,9
3,6
3,6
~ 180°
Ø 4,2
18,8
27,8
10
7
55,4
Ø 8,6 Ø 8,6
Ø 3,8
16,1
1
2
3
4
4
5
10,5
33,2

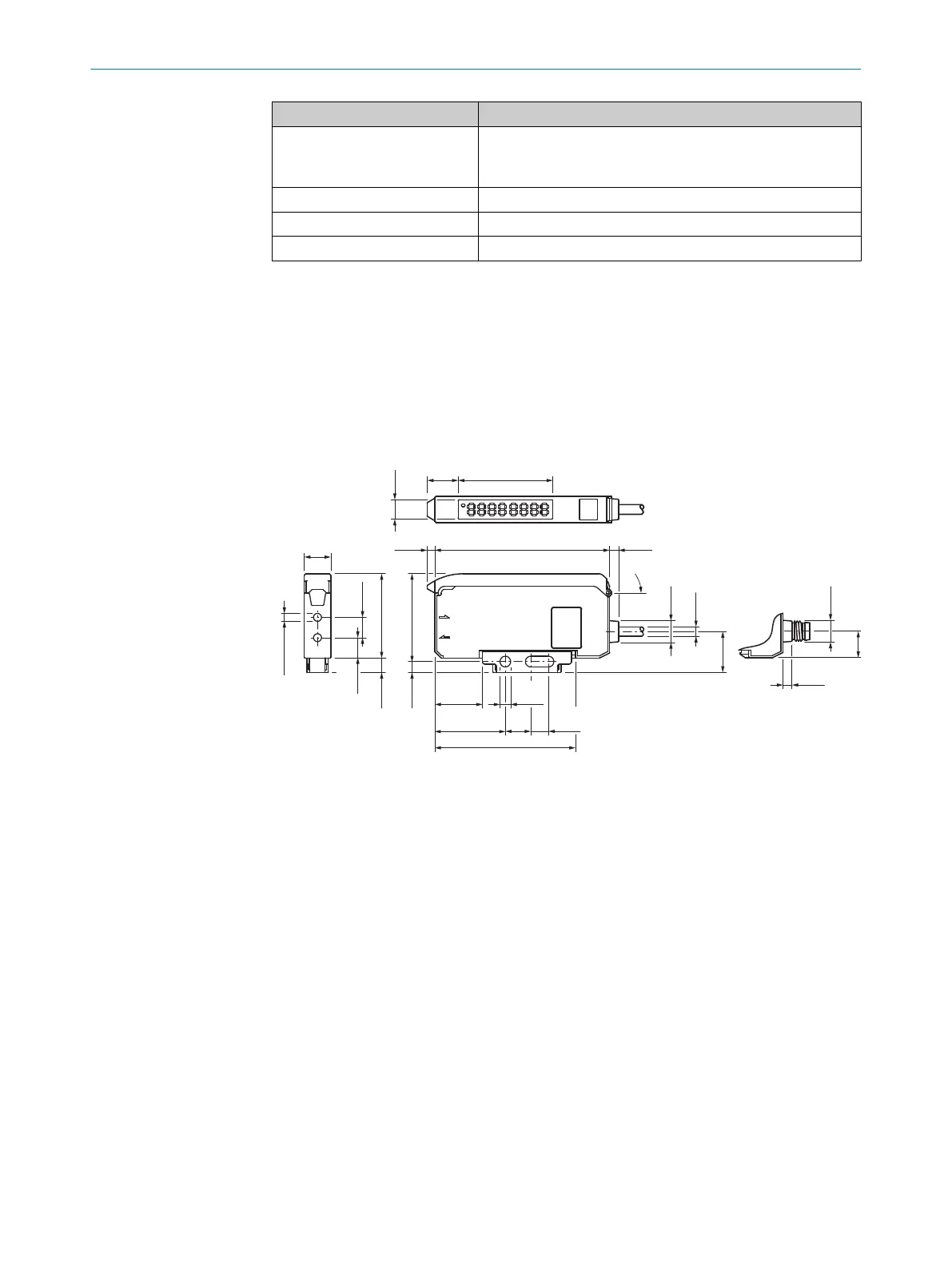

Figure 10: Device variant dimensional drawing without bus male connector (standalone)
1
Sender LED, LL3 fiber mounting (sender fibers)
2
Receiver, LL3 fiber mounting (receiver fibers)
3
Protective hood opens approx. 180°
4
Connection
5
Mounting bracket, included with delivery
