3 Product description
3.1 Product ID
3.1.1 Type label
The type label gives information for identification of the device.
The UL certification is dependent on the type. Any existing UL certification can be found
on the type label. The corresponding UL logo is then printed on the label.
1
2
3
4
5
6

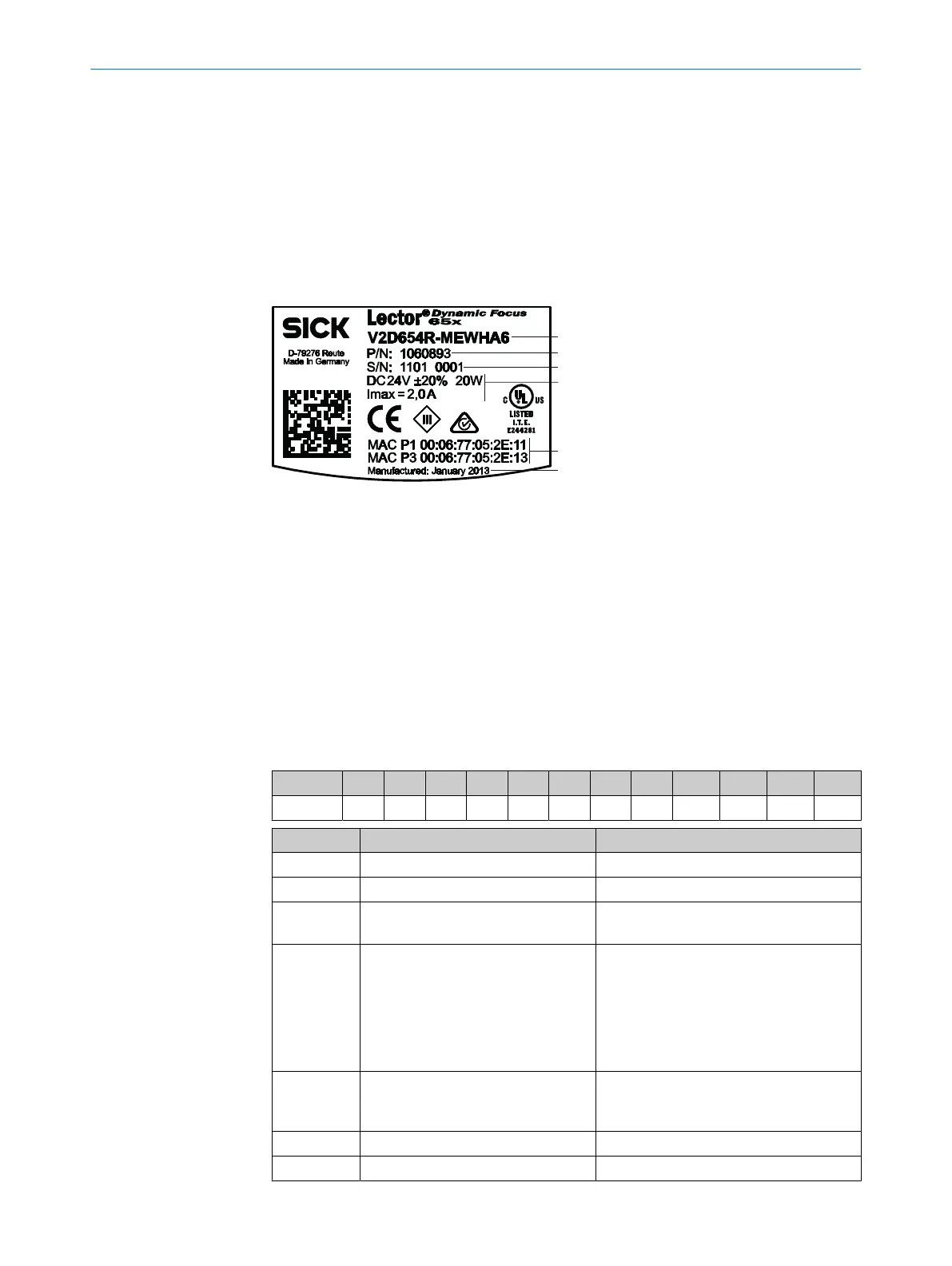

Figure 1: Structure of the type label on the device
1
Type designation according to type code
2
Part number
3
Serial number
4
Supply voltage, power consumption, current consumption
5
MAC addresses
6
Date of manufacture
3.1.2 Type code
The devices of the Lector64x and Lector65x product families are arranged according to
the following type code:
V2D6xyz-abcdefg
V2D 6 x y z - a b c d e f g
1 2 3 4 5 6 7 8 9 10 11 12 13
Position Description Characteristic
1 Device name V2D: Vision 2D matrix
2 Product family 6: 6xx
3 Platform / housing 4: Advanced Line small
5: Advanced Line
4 Resolution of the image sensor 2: 2 megapixels (2048 px x 1088 px)
•
For Lector642: 1.7 megapixels
(1,600 px x 1,088 px)
•
For Lector652: 2.1 megapixels
(2,048 px x 1,088 px)
4: 4.2 megapixels (2,048 px x 2,048 px)
5 Function R: Read, standard decoder (1D, 2D)
D: Read, standard decoder (1D, 2D), DPM
decoder, OCR decoder
6 Separator "-"
7 generation "empty": 1. generation
