NOTE
The IP protection class IP65 can only be guaranteed with the optic protective hood (can
also be ordered individually).
The following components are included in the scope of delivery of the optic kit:
•
Application-specific lens unit
•
Application-specific integratable illumination unit (VI83I ring illumination unit),
luminous field appropriate for focal distance of lens
•
Two spacers, one with a plated-through connection for the electrical connection
•
Screws: 4 x M2, 5 x 6 mm, 4 x M2, 5 x 12 mm, all screws have a hexagon cylinder
head, SW 2
•
IP65 optics protective hood with screw thread and viewing window
3.3 Product characteristics
3.3.1 Device view
6
21.4
(0.84)
8
7
9
12
75.6 (2.98)
102
(4.02)
21.6
(0.85)
7.2 (0.28)
3
4
5
ä
å
æ
46
(1.81)
0.2
(0.008)
á
90
(3.54)
Ø 86 (3.39)
ã
14.2
(0.56)
97.2 (3.83)
142.8 (5.62)
ß
à â

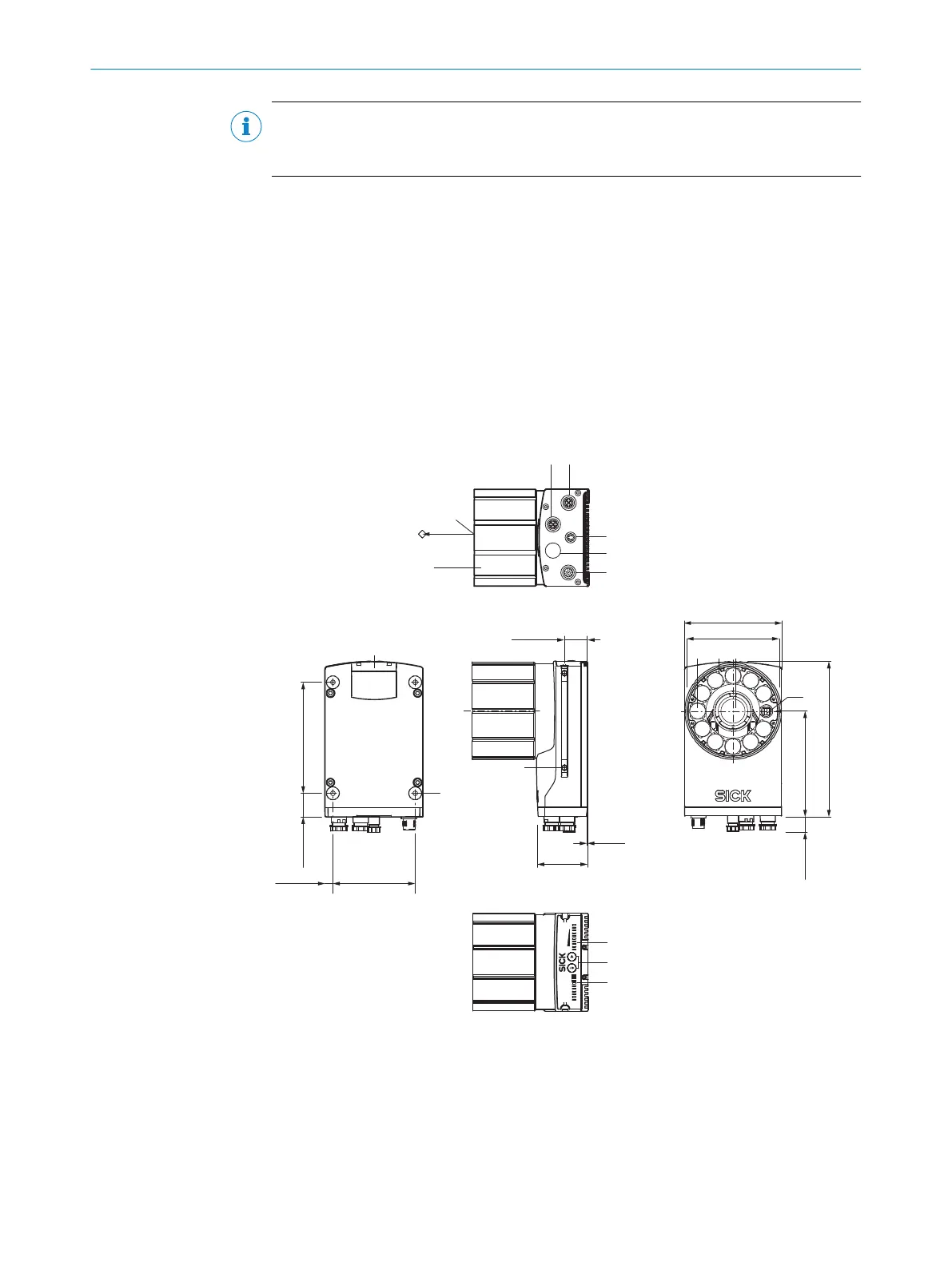

Figure 3: structure and device dimensions, unit: mm (inch), decimal separator: period
1
Connection P1, function and design dependent on type
2
Connection P3, function and design dependent on type
3
Connection X2, function and design dependent on type
4
Connection P2, function and design dependent on type
5
Connection X1, function and design dependent on type
6
Reference point for working distance (viewing window center) from device to object
