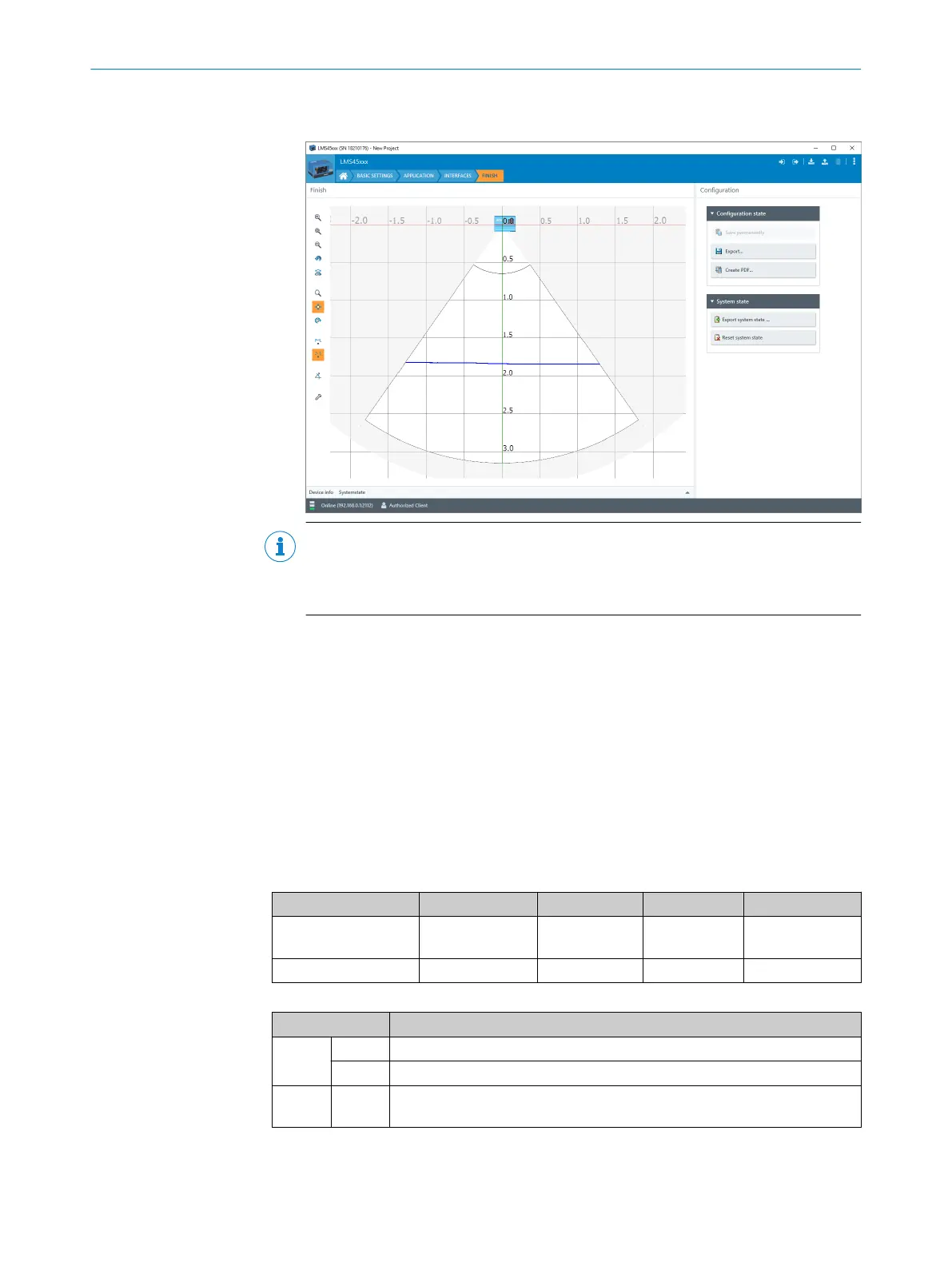

Complete: Scan display (left-hand side) and buttons for finalizing device configura‐
tion.
NOTE
Changes to parameters that are made in SOPAS ET are not saved automatically in
the device. After you have completed the configuration, you must save it in the
device permanently by pressing the Save permanently button.
7.2 Output of measured values via terminal program
Example commands for output of measured values
If the LMS4000 sensor receives one of the two example commands by telegram via the
Ethernet interface, it will start the output of measured values via this data interface.
The device must be switched on and in measuring mode.
The detailed structure of the output telegram as well as the flow of requests and out‐
puts is described in the “Measurement output telegram” chapter in the Telegram listing
publication (English, no. 8014631).
Request for output of measured values:
Table 8: Telegram structure: sRN LMDscandata
Telegram part Description Variable type Length (Byte) Value range
Command type Request (SOPAS
read by name)
string 3 sRN
Command Request data string 11 LMDscandata
Table 9: Example: sRN LMDscandata
Telegram type Command
CoLa A ASCII
<STX>sRN{SPC}LMDscandata<ETX>
HEX
02 73 52 4E 20 4C 4D 44 73 63 61 6E 64 61 74 61 03
CoLa B Binary
02 02 02 02 00 00 00 0F 73 52 4E 20 4C 4D 44 73 63 61
6E 64 61 74 61 05
Request for continuous output of measured values:
7
OPERATION
38
O P E R A T I N G I N S T R U C T I O N S | LMS4400/LMS4500 8023202/16S6/2020-01-24 | SICK
Subject to change without notice
