SICK LMS4400 User Manual

Working range diagram
0
Scanning range in m (ft)
-2
(-6.56)
-1
(-3.28)
1
(3.28)
2
(6.56)
Scanning range in m (ft)
1
(3.28)
2
(6.56)
3
(9.84)
4
(13.12)
0
Working range 0.7 m to 3 m
70°

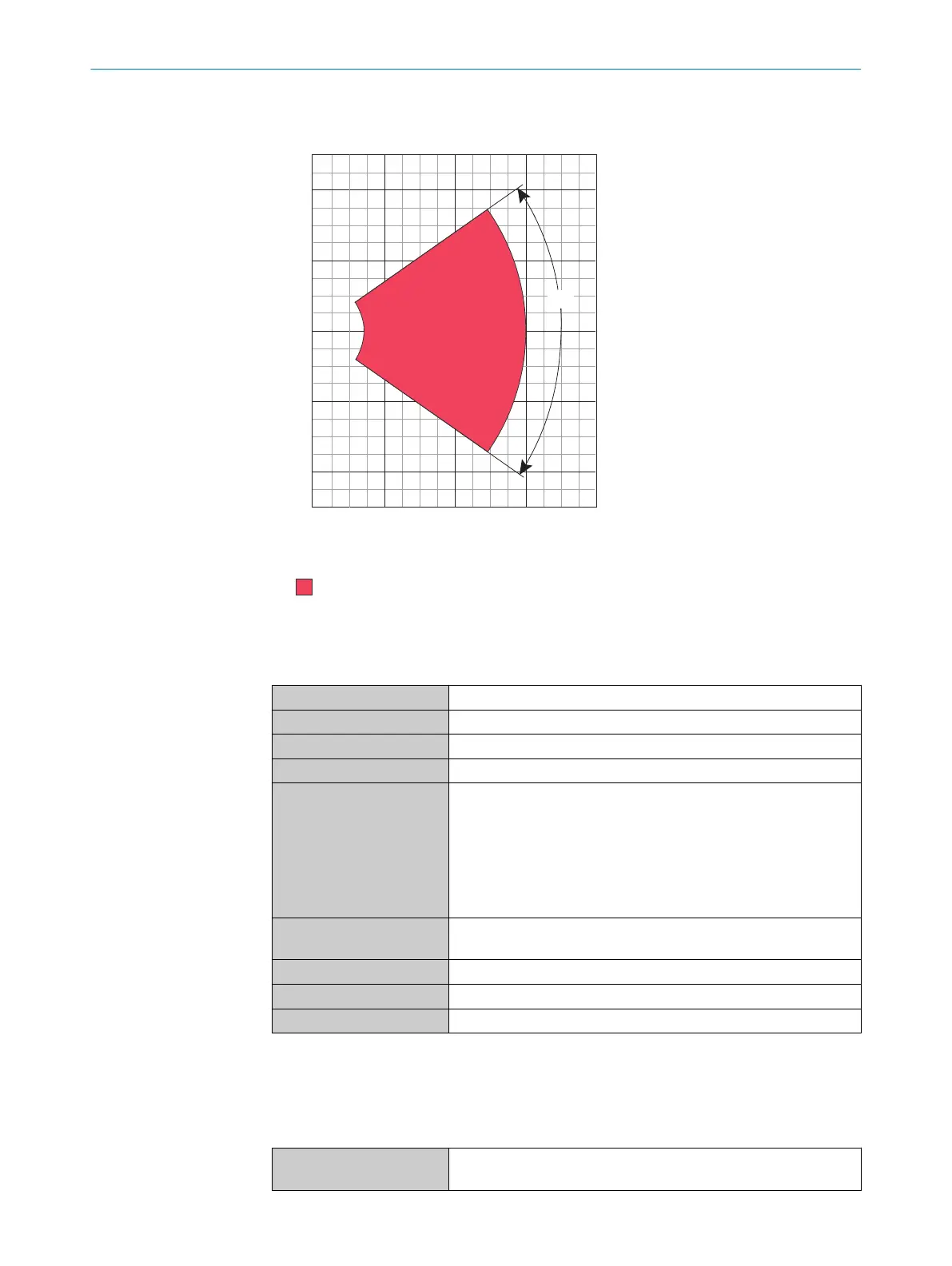

Figure 19: Working range diagram
10.2
Performance
Scan/frame rate 504,600 measurement points/second
Response time ≥ 4.8 ms
Detectable object shape Almost any
Systematic error (typ.)
1
LMS4x21: ± 1 mm
Statistical error (1 σ)
1
LMS4x21:
0.75 mm (@ ≥ 90% 0.7 m … 3 m)
1.5 mm (@ 40% 0.7 m … 3 m)
4.5 mm (@ 6.5% < 1 m & > 2.5 m)
3.5 mm (@ 6.5% 1 m … 2.5 m)
12 mm (@ 3 % < 1 m & > 2.5 m)
9 mm (@ 2% 1 m … 2.5 m)
Temperature drift (system‐
atic)
0.03 mm/K
Angle error 0.05°
Integrated application Data output
Filters Edge filter, median filter, mean filter
1
Typical value in the following ambient conditions: measuring range and remission as quoted (otherwise
full range), scan range 60° … 120°, ambient temperature 18 °C … 28 °C, ambient light ≤ 2,000 lux. The
actual measured values might deviate from the quoted value depending on the application setup.
10.3 Interfaces
Ethernet – function TCP/IP
Measurement data output (distance, angle, RSSI, quality)
TECHNICAL DATA 10
8023202/16S6/2020-01-24 | SICK O P E R A T I N G I N S T R U C T I O N S | LMS4400/LMS4500
47
Subject to change without notice
