Preventive Maintenance
14 MCS100E HW Maintenance Manual 8009624/2009-09 (V1.4) ©SICKMAIHAKGmbH
When the filter pots are soiled:
a) Inspect compressed air supply to find the reason.
b) Inform the responsible persons, as required.
c) Unscrew the filter pot
d) Clean the filter pot.
e) Screw out the filters and replace them with new filters.
f) Replace O-rings at filter pots.

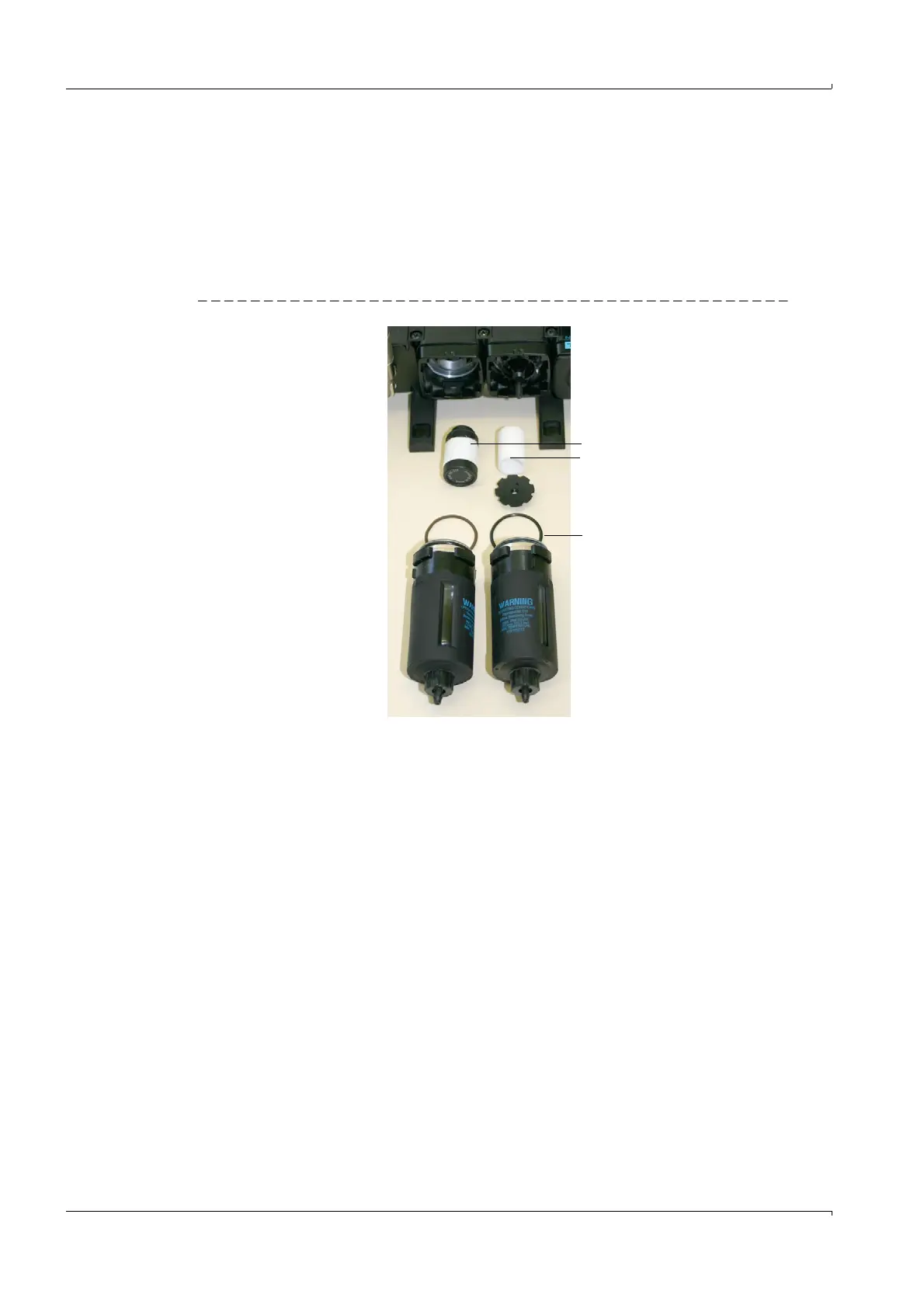

Fig. 3 Mounting positions of filters and O-rings
g) Refit the filter pots.
3 Open the compressed air supply.
Check pressures:
– Pressure regulator inlet (right): Approx. 6 bar (according to your analyzer)
– Pressure regulator outlet (left): Approx. 3 bar (according to your analyzer)
Filter 2
Filter 1
O-rings
