Preventive Maintenance
42 MCS100E HW Maintenance Manual 8009624/2009-09 (V1.4) ©SICKMAIHAKGmbH
3.12
Manual span gas feeding (setting the span gas concentration)
Setting the span gas concentration
1 After the span gas values have leveled out (
→
P. 40, § 3.11), select "Factor setting"
2 Select the component to be set and press "ENTER".
Note: You can only select the component for which span gas is currently fed (span gas
valve open). All other components are blocked.

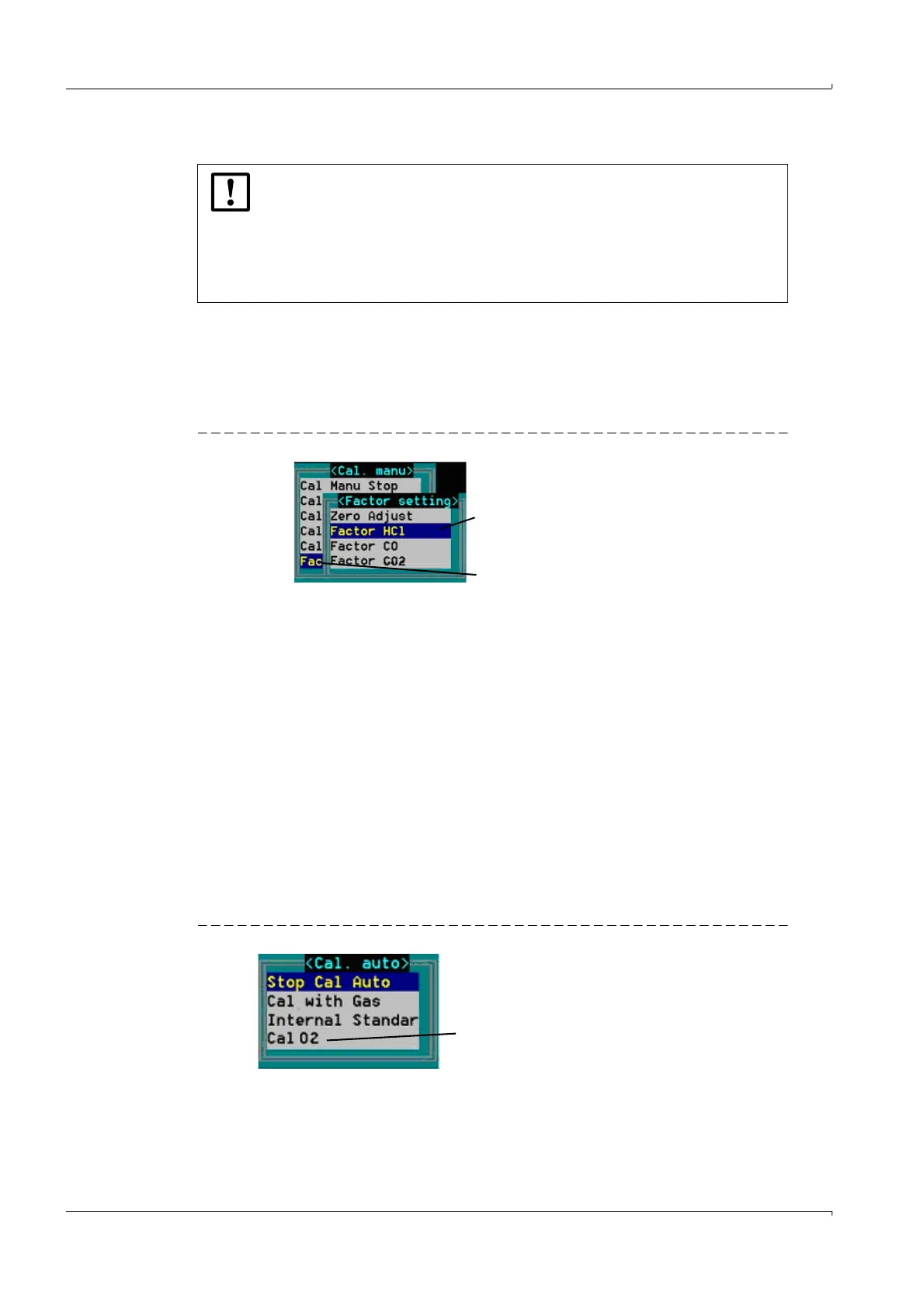

Fig. 51 Setting span gas values
3 According to
→
Fig. 50, the text "Factor setting" is shown in the message line.
The setting of the span gas concentration is completed when this text disappears and
only the text "CAL gas open" (
→
Fig. 50) is displayed.
4 Terminate span gas feeding with "CAL Manu Stop"
OR
feed next component.
3.13 Automatic span gas feeding for O
2
O
2
can only be tested using "automatic span gas feeding". Correction runs automatically.
1 Recommendation: Check in the menu "Specialist: System edit: Calibration data"
whether the correct span gas concentrations have been entered (--> Operating Instruc-
tions MCS100E). Note: For this menu, you require the password for the "Specialist
level".
2 Press the F6 key and the menu for automatic span gas feeding is displayed.
3 Use the cursor keys to go to "Cal O2" and press "ENTER".
Fig. 52 Span gas feeding for O
2
4 Confirm safety prompt with "Yes". Span gas feeding is performed automatically. The
span gas concentration is corrected automatically.
5 The MCS100E HW switches automatically to measuring mode after span gas feeding
has finished.
If you make a mistake when setting the zero or span gas concentrations, the
measured values will be wrong.
b
Before setting the span gas concentration, make sure that the measured
values have leveled out safely (values are stable). This takes 5 ... 15 min-
utes (longer in unfavorable cases) depending on the span gas.
b
Leave the judgment as to whether the "span gas has leveled out" and the
"setting of the span gas concentration" to a trained skilled person.
Component to be set
Factor setting
Select O
2
here
