MCS100E HW Maintenance Manual 8009624/2009-09 (V1.4) ©SICKMAIHAKGmbH 13
Preventive Maintenance
3.4
Maintenance of the compressed air station
3.4.1 Air station 5315575 and 5315576
These instructions are applicable for the SICK compressed air stations order number
5315575 (2-stages) and 5315576 (3-stages).

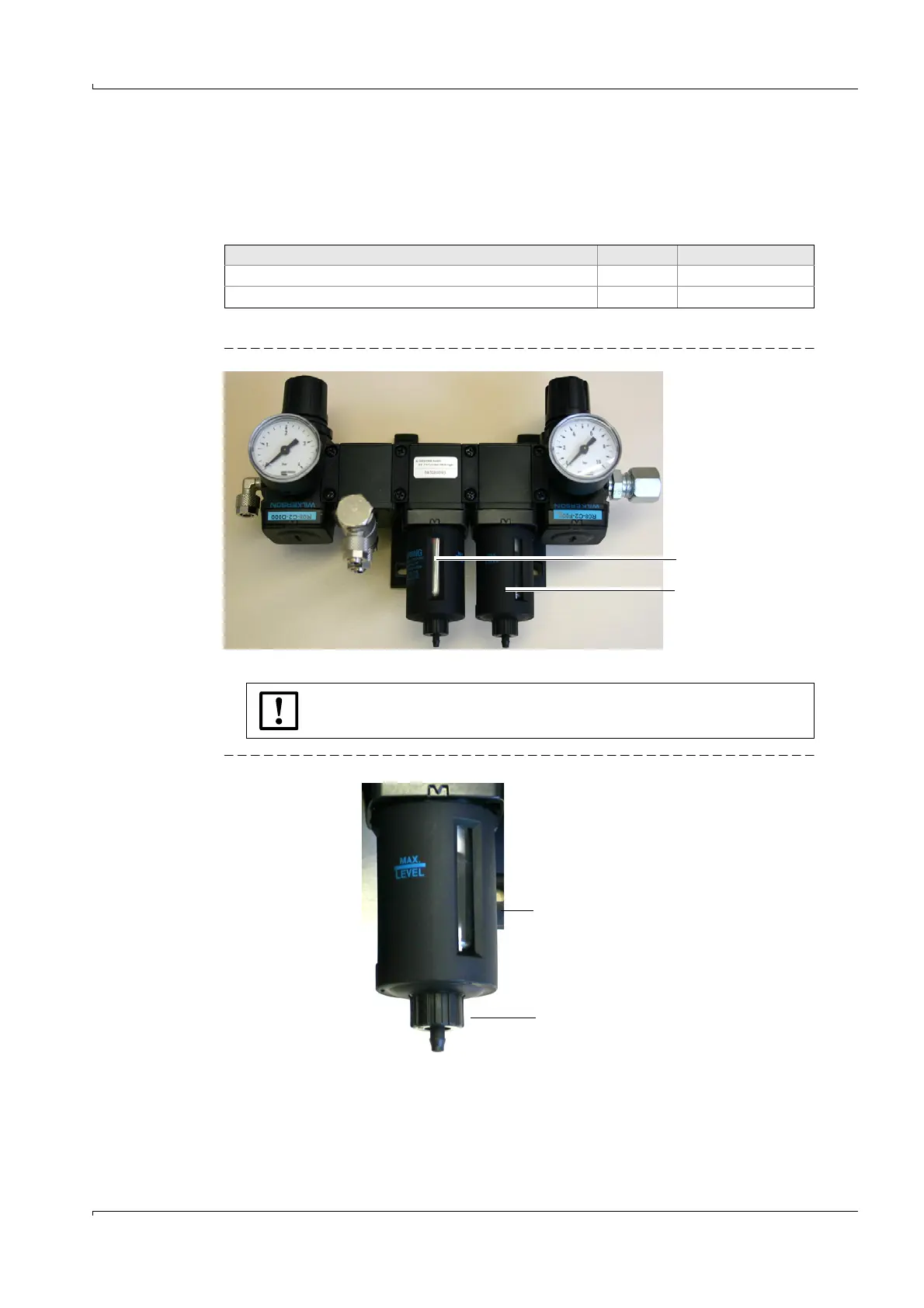

Fig. 1 Compressed air station (2 stage)
1 Shut off the compressed air supply..
Fig. 2 Filter pot
2 Drain liquid (oil or water) from both filter pots.
To do this, unscrew drain.
Check the drain for continuity and clean, if required.
Spare parts required Number Order No.
Filter 2
1
1
As required
1 5315578
Filter 1
1
1 5315577
Filter pot 2
Filter pot 1
High pressure.
b
Make sure that the compressed air supply is shut off.
Filter pot
Drain
