Disassembly
1 Mark the position of the intermediate plate and the pump head with a line (the marking
line identifies the unique position of the plates and is helpful for assembly during the
installation).

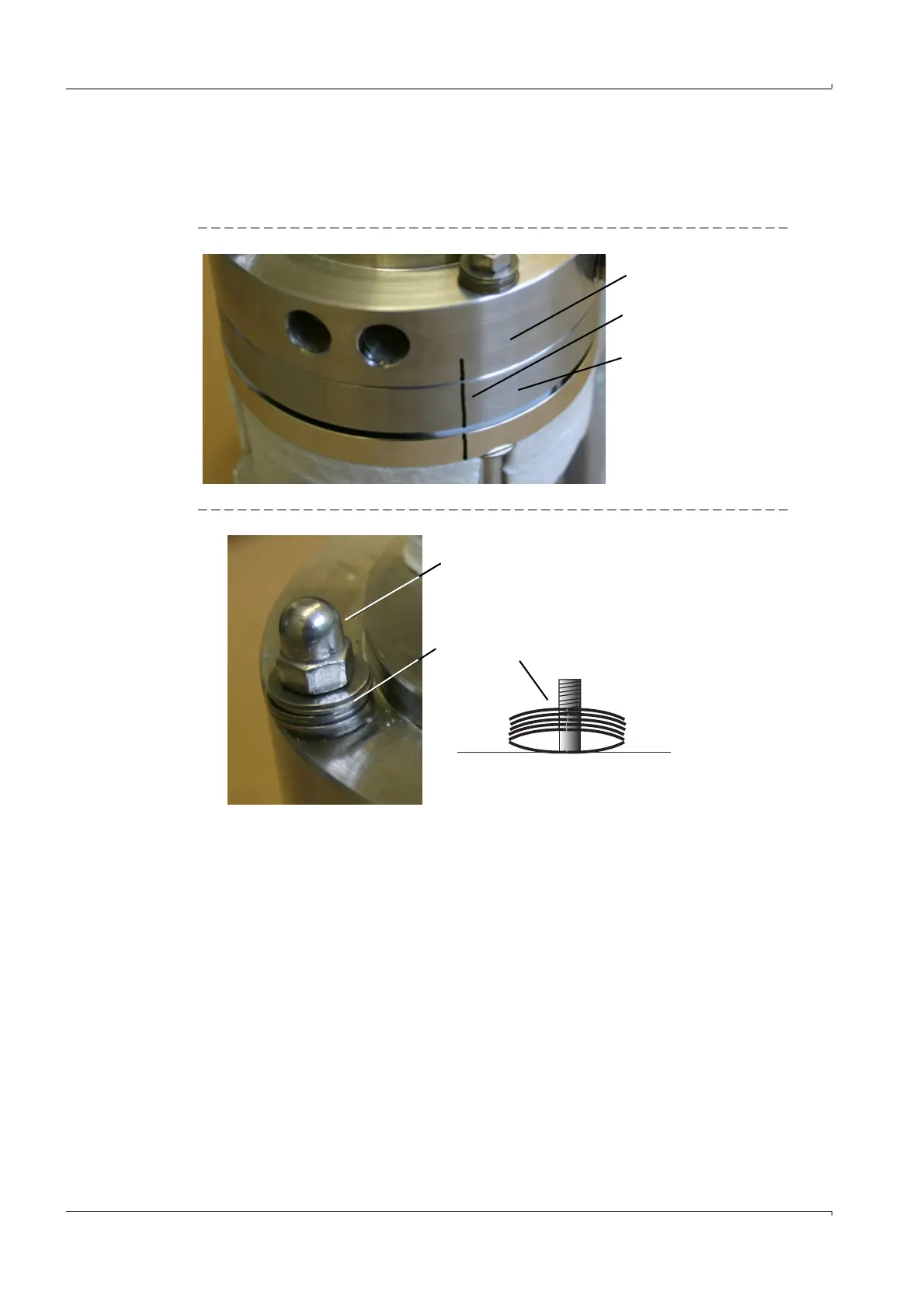

Fig. 19 Position of intermediate plate and pump head
Fig. 20 Screw connection of pump head
2 Unscrew the cap nuts.
3 Remove the cup springs.
Note: The position of the cup springs is not optional. It is advisable to remove all the cup
springs at the same time and put them in a safe place.
4 Remove the pump head and lay it down.
Pay attention to the connections of the heating cartridge and the Pt100.
Pump head
Line markings
Intermediate plate
Cap nut
Cup springs
