Parameter Factory setting
0 mm ... +100 mm 0.5 mm

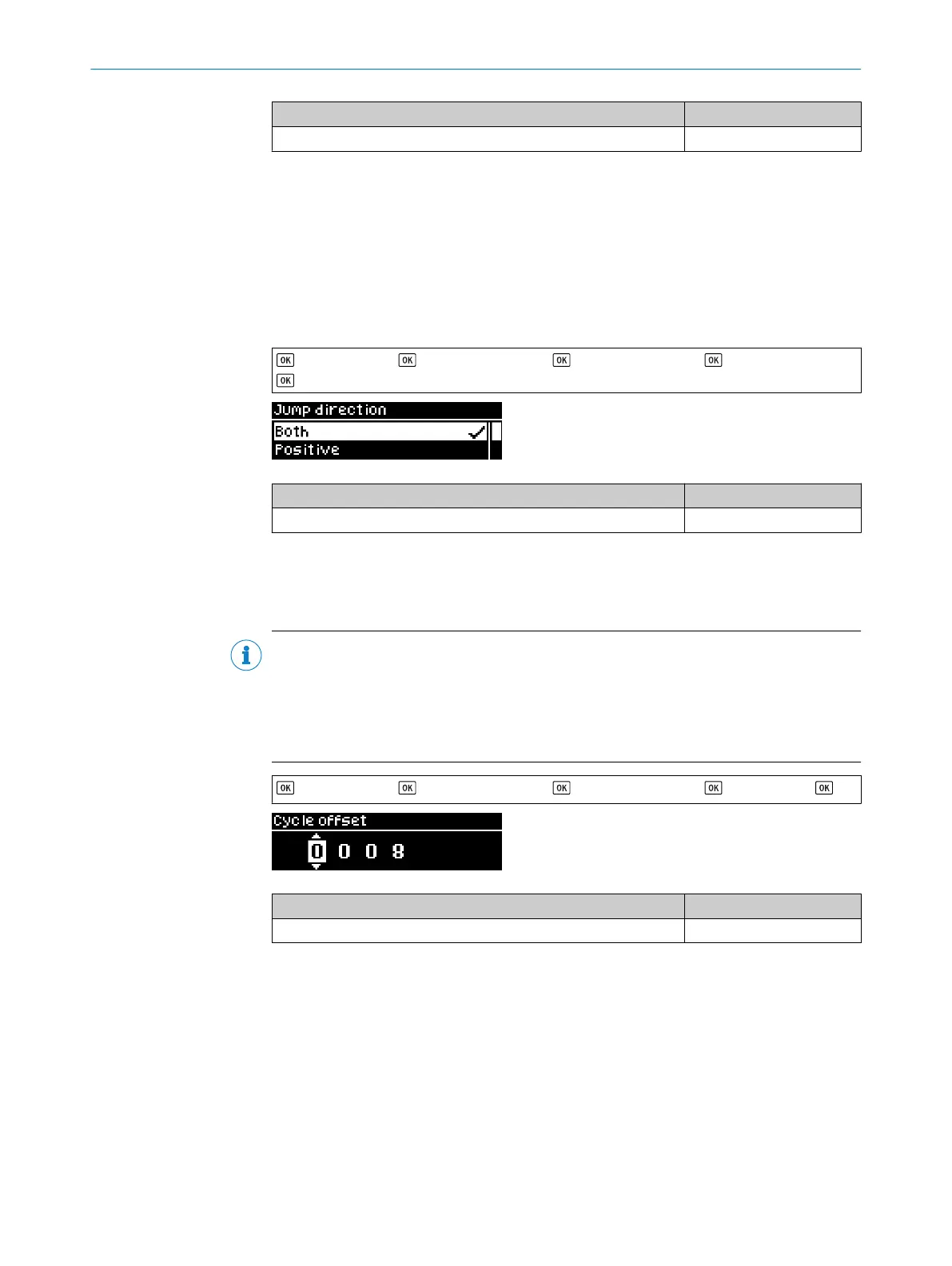

Change direction
The change direction value defines whether changes in measured values which result
in smaller or larger distances are detected in both directions.
•
Both: All changes in measured values within the set limits are detected
•
Positive: Only changes in measured values within the set limits which result in
larger distances are detected (description applies to factory setting).
•
Negative: Only changes in measured values within the set limits which result in
smaller distances are detected (description applies to factory setting).
> Measurement > > Application settings > > Edge height change > > Change direction >
Parameter Factory setting
Both, positive, negative Both
Cycle offset
The cycle offset value specifies which previous output value is compared with the value
currently measured.
NOTE
We recommend using the edge height change operating mode with a fixed cycle time,
see "Cycle time", page 32. This ensures time consistency for the output of measured
values. In the Auto operating mode, fluctuating remission values of the object surface
can change the cycle time of the device, which means that reliable detection cannot be
guaranteed in the case of high detection speeds or small structures.
> Measurement > > Application settings > > Edge height change > > Cycle offset >
Parameter Factory setting
1 ... 256 8
8 OPERATION VIA DISPLAY
30
O P E R A T I N G I N S T R U C T I O N S | OD1000 8019642/ZJW1/2017-04-03 | SICK
Subject to change without notice
