Examples of the digital output for the edge height change function
1
2
9
ß
à
4
5
8
6
6
7
1234 0
1234 0
1234 0
1234 0
t
3

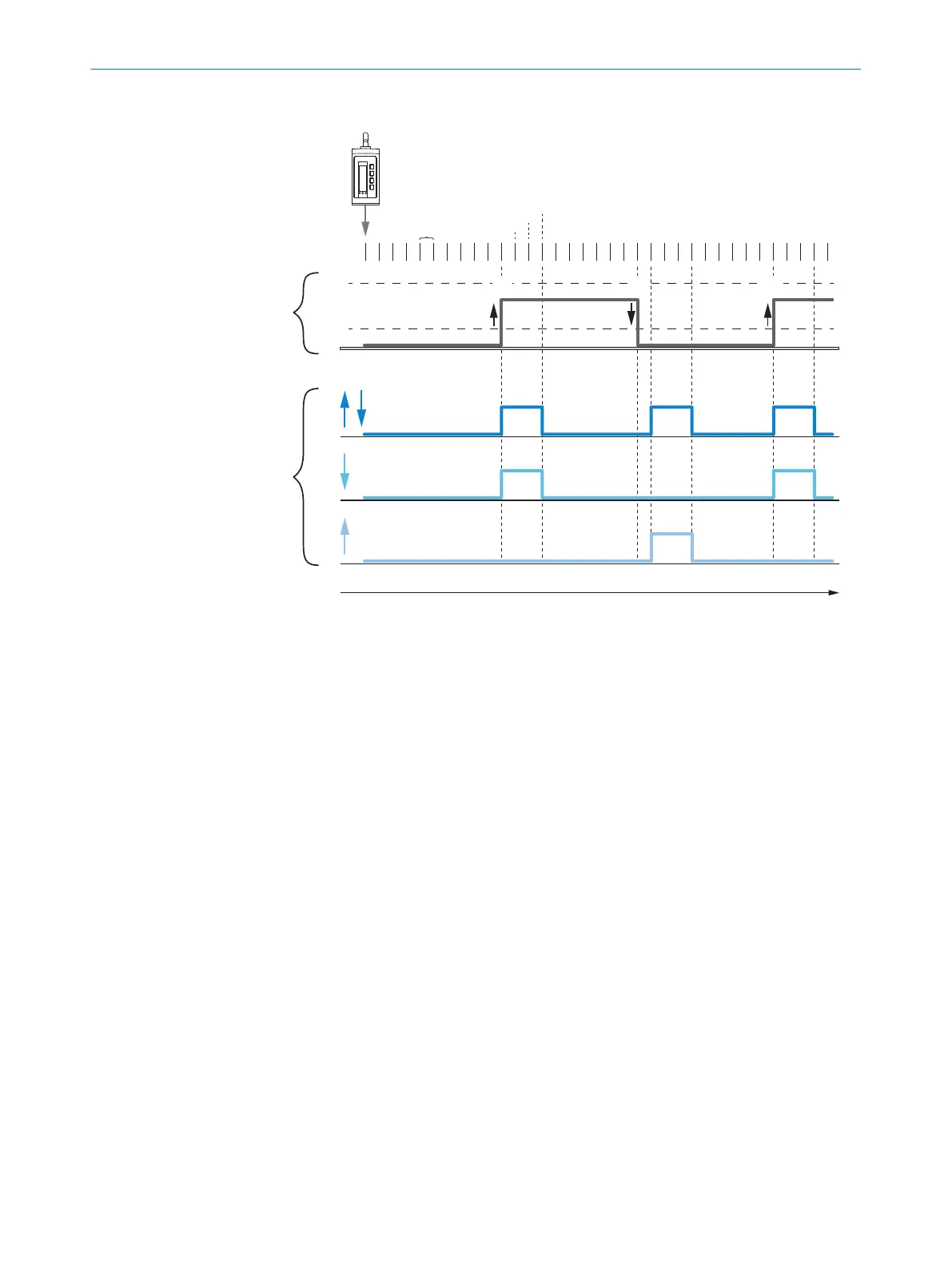

Figure 11: Edge height change – duration of the change in measured value is longer than the
time span of the cycle offset
1
Cycle offset: 4, without measured value filter
2
Cycle time fixed, e.g. 1 ms
3
Signal diagram for real distance
4
Max. limit value for edge height change (mm)
5
Min. limit value for edge height change (mm)
6
Change in measured value, from large to small distance
7
Change in measured value, from small to large distance
8
Signal diagram for digital output
9
“Change direction: both” parameter
ß
“Change direction: negative” parameter
à
“Change direction: positive” parameter
OPERATION VIA DISPLAY 8
8019642/ZJW1/2017-04-03 | SICK O P E R A T I N G I N S T R U C T I O N S | OD1000
31
Subject to change without notice
