SICK OD1000 User Manual

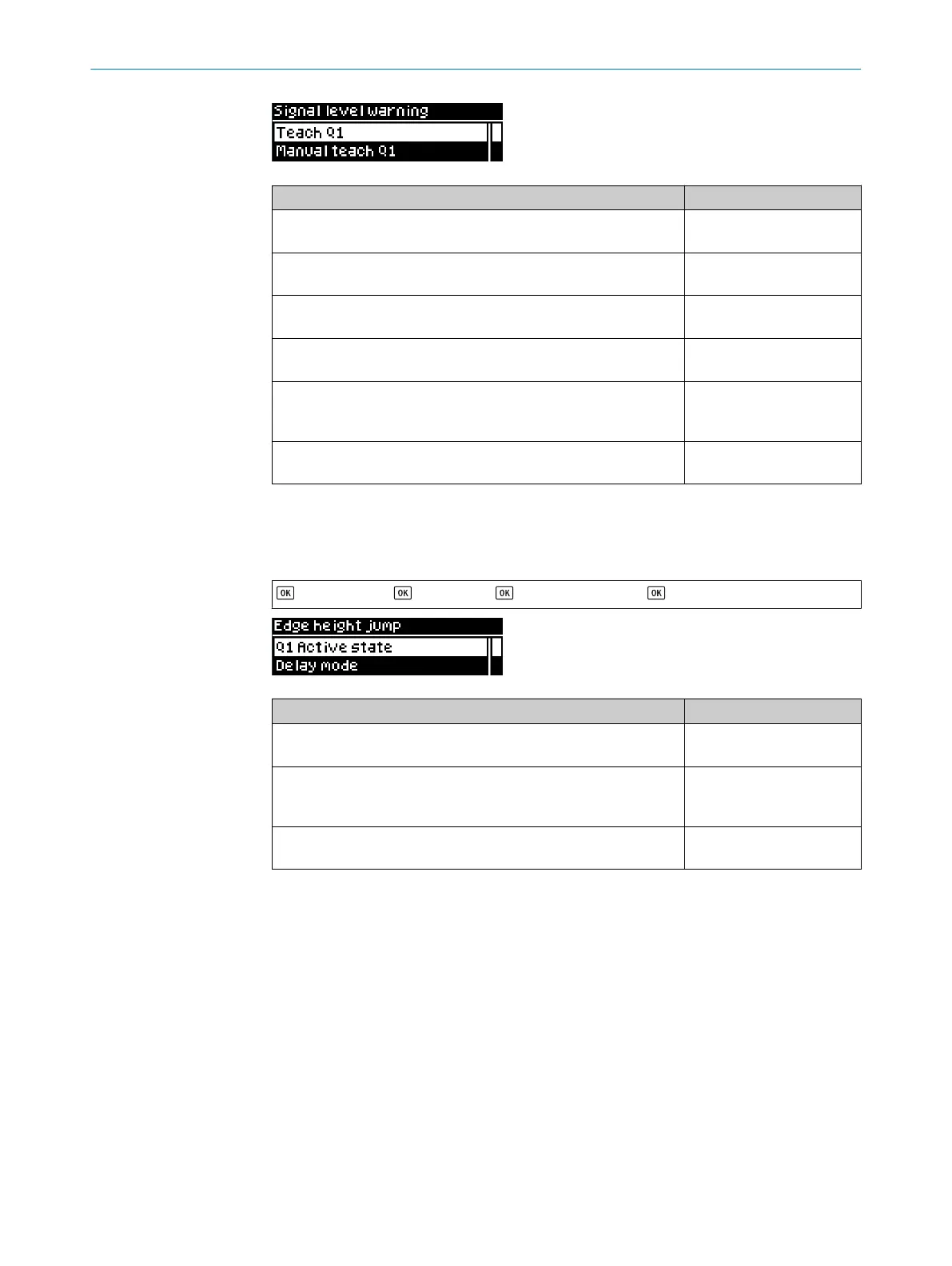

Parameter Factory settings
Q1 teach-in:
Switching point 1, switching point 2
-
Manual Q1 teach-in:
-0 ... 5,000
112
Q1 active status:
High, Low
High
Q1 hysteresis:
0 ... 10,000
10
Delay mode:
Off, switch-on delay, switch-off delay, switch-on/switch-off delay, 1
shot
Off
Time for delay mode:
0000 ms ... 9,999 ms
100 ms
8.4.1.7 Edge height change
The edge height change function is only available in the Advanced user level, see
"Device", page 51.
> I/O interface > > Q1 output > > Edge height change >
Parameter Factory settings
Q1 active status:
High, Low High
Delay mode:
Off, switch-on delay, switch-off delay, switch-on/switch-off delay, 1
shot
Off
Time for delay mode:
0000 ms ... 9,999 ms 100 ms
8.4.2 Q
2
/Q
a
output
The output Q
2
/Q
a
can be configured either as an analog output or a switching output.
8.4.2.1 Notes on the output functions
8.4.2.1.1 4-20 mA output function
If the 4-20 mA setting is selected, output 2 functions as an analog current output. The
measured value of the device is output as a proportional-linear current value that corre‐
sponds to the other device settings.
OPERATION VIA DISPLAY 8
8019642/ZJW1/2017-04-03 | SICK O P E R A T I N G I N S T R U C T I O N S | OD1000
43
Subject to change without notice
