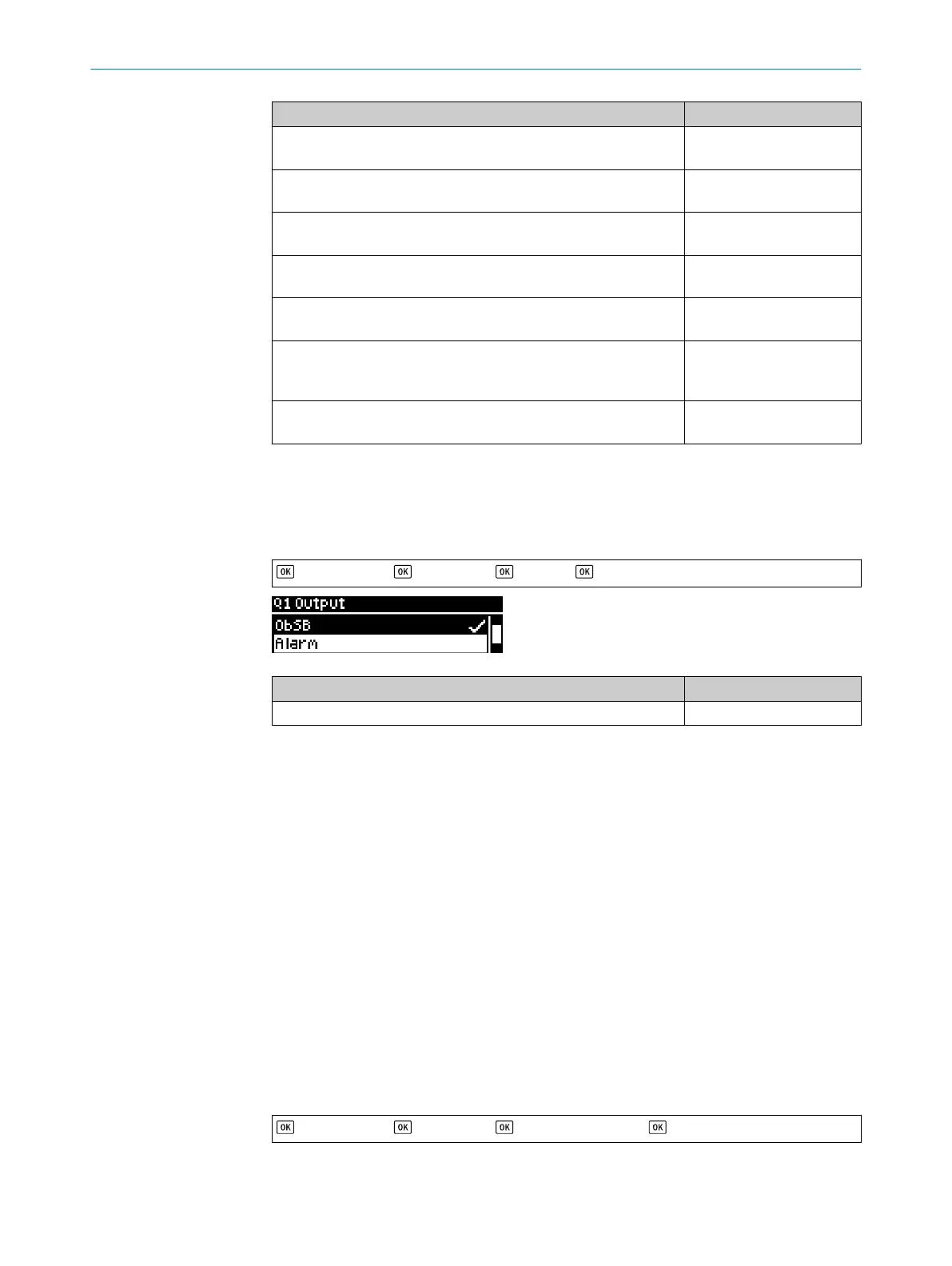

Parameter Factory setting
Q1 teach-in:
Q1, Q1 not
-
Manual Q1 teach-in:
-1,000.0 mm ... +1,000.0 mm
+400 mm
Q1 active status:
High, Low
High
Q1 hysteresis:
0000.0 mm ... +0100.0 mm
+1.0 mm
Q1 ObSB tolerance
-1,000.0 mm ... +1,000.0 mm
+4.0 mm
Delay mode:
Off, switch-on delay, switch-off delay, switch-on/switch-off delay, 1
shot
Off
Time for delay mode:
0000 ms ... 9,999 ms
100 ms
8.4.1.5 Alarm
The alarm function is only available in the Advanced user level. A constant switching sig‐
nal is output at the output of the device while no measurement is possible. This func‐
tion can be used to evaluate the measured value at the analog output, for example.
> I/O interface > > Q1 output > > Alarm >
Parameter Factory settings
Alarm Off
8.4.1.6 Signal level warning
The signal level warning function is only available in the Advanced user level.
A warning can be output via the Q1 and Q2 switching outputs if the signal level drops
below a certain value. This value can either be specified as a number value or deter‐
mined by the Teach-in function. When the Teach-in function is used, the threshold value
for outputting the warning is calculated by reducing the measured signal level value by
about 12%. Then the warning will not be output until the signal level is about 12% lower
than it was at the time it was taught in.
The level warning threshold or signal level switching point can be set manually using a
signal level within the value range of 0 to 5,000. The signal level is a sensor-specific,
unitless value. We recommend configuring the setting using application-specific test
measurements.
In automatic mode, the device automatically regulates the reception level to around
1000. In the case of very critical object surfaces, an abrupt loss of signal can therefore
occur as soon as a readjustment is no longer possible. In settings other than Auto, there
is no automatic adjustment, which makes it easier to define thresholds for the signal
level warning.
> I/O interface >
> Q1 output > > Signal level warning >
8 OPERATION VIA DISPLAY
42
O P E R A T I N G I N S T R U C T I O N S | OD1000 8019642/ZJW1/2017-04-03 | SICK
Subject to change without notice
