Parameter Factory setting
Q1 teach-in:
Q1, Q1 not
-
Manual Q1 teach-in:
-1,000.0 mm ... +1,000.0 mm
+400 mm
Q1 active status:
High, Low
High
Q1 hysteresis:
0000.0 mm ... +0100.0 mm
+1.0 mm
Delay mode:
Off
Switch-on delay
Switch-off delay
Switch-on/switch-off delay
1 shot
✓
-
-
-
-
Time for delay mode:
0000 ms ... 9,999 ms
100 ms

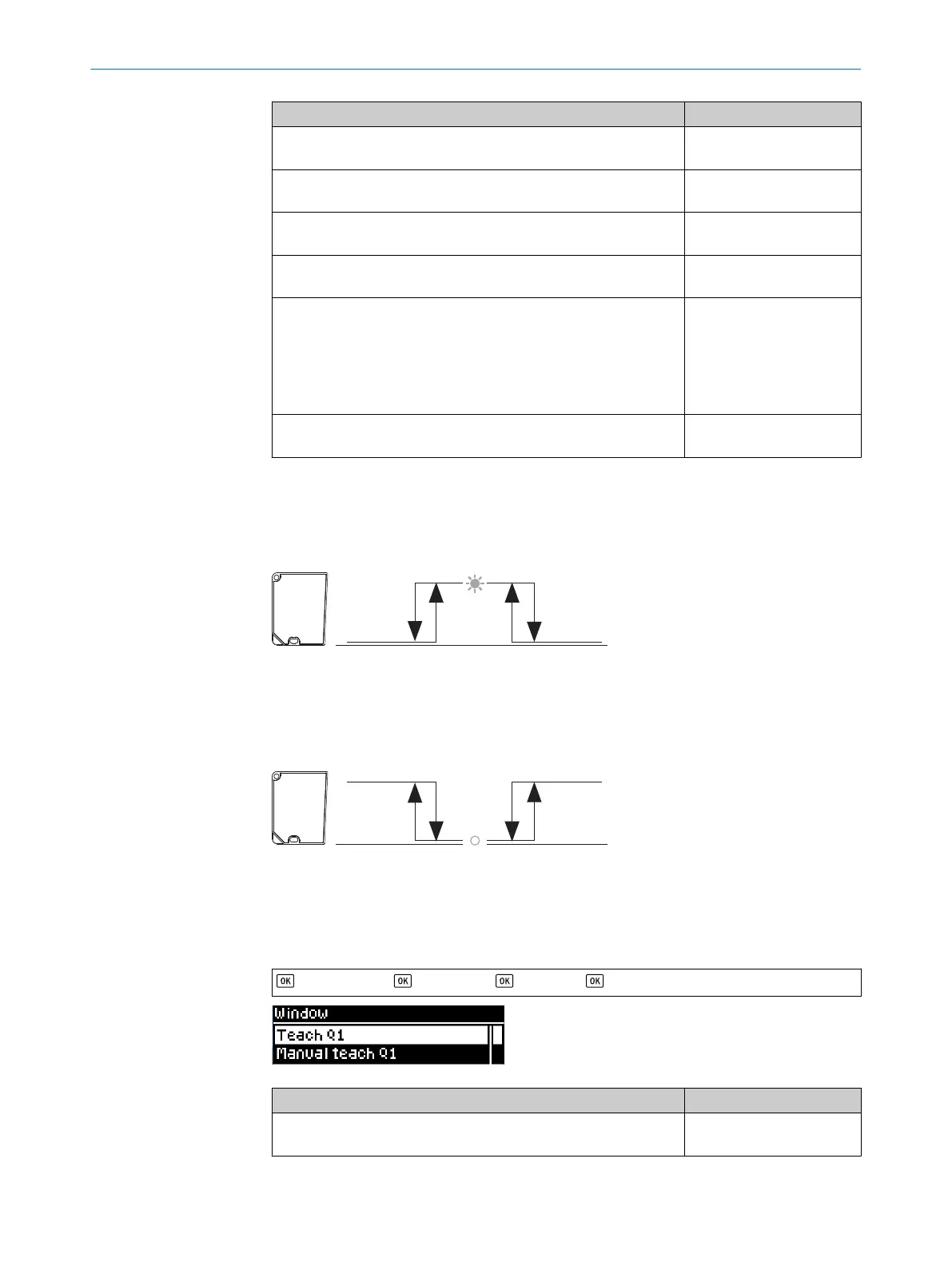

8.4.1.3 Window
Window mode: An upper and a lower switching threshold are set for the switching out‐
put. A switching signal is output when the measured value is between the two switching
thresholds (in the window).
Min Max
1
1
0
2
Figure 15: Normally open switching window (High Active, PNP)
1
Switching point near
2
Switching point far
Min Max
1
1
0
2
Figure 16: Normally closed switching window (Low Active, PNP)
1
Switching point near
2
Switching point far
> I/O interface > > Q1 output > > Window >
Parameter Factory settings
Q1 teach-in:
Switching point 1, switching point 2
-
8 OPERATION VIA DISPLAY
40
O P E R A T I N G I N S T R U C T I O N S | OD1000 8019642/ZJW1/2017-04-03 | SICK
Subject to change without notice
