SICK OD1000 User Manual

ON
OFF
1
2
3
HOLD
1
Measured value
2
Output hold value (peak hold value)
3
Interval in which an analysis is carried out
•

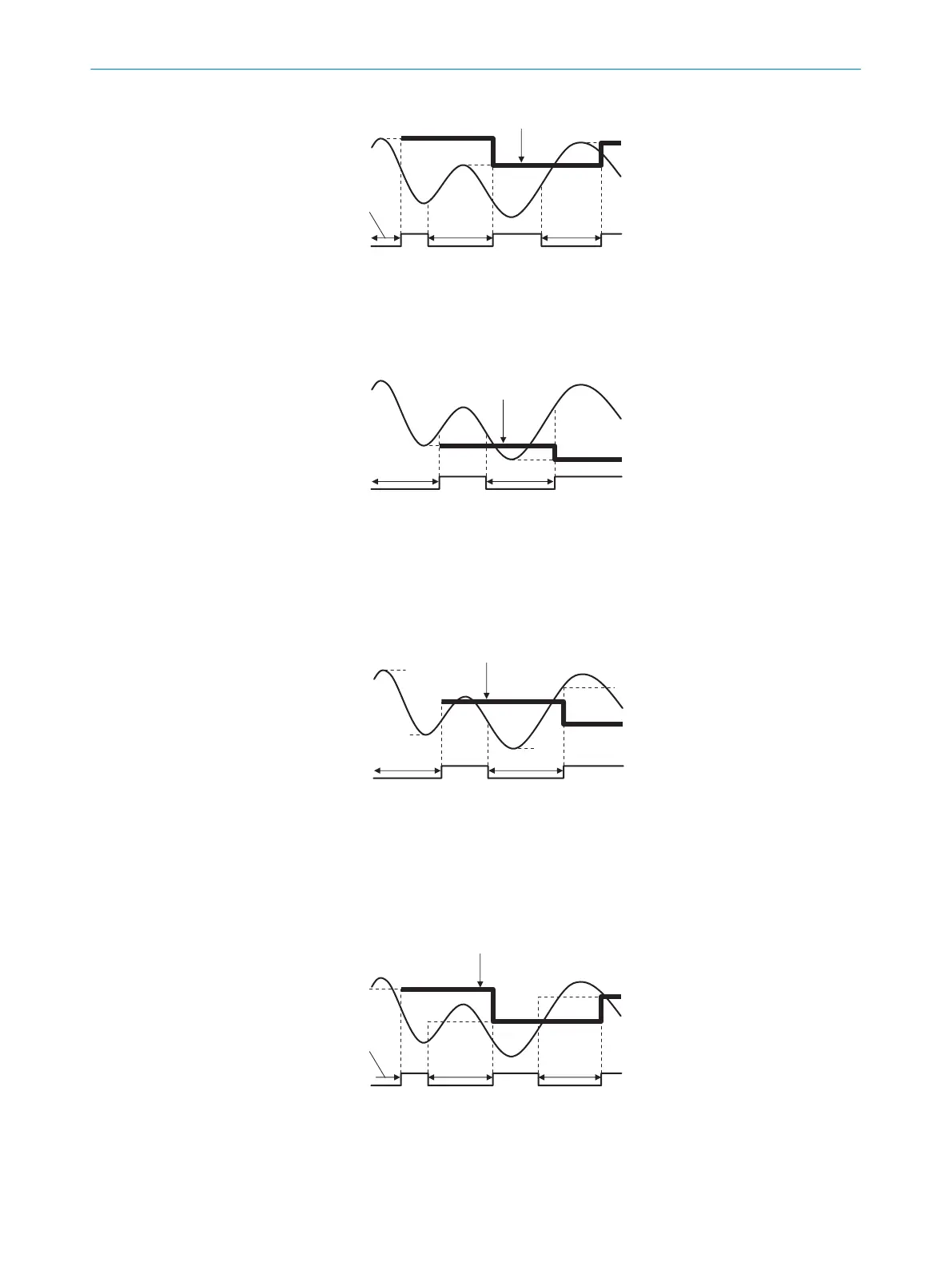

Lowest value: Holds the smallest measured value which is present in the interval
between the last falling edge and the hold input signal (next rising edge).
ON
OFF
1
2
3 3
HOLD
1
Measured value
2
Output hold value (bottom hold value)
3
Interval in which an analysis is carried out
•
Peak-to-peak value: Holds the differential value between the smallest and the larg‐
est measured value present in the interval between the last falling edge and the
hold input signal (next rising edge).
P(2)
P(1)
B(1)
B(2)
P(1)-B(1)
P(2)-B(2)
ON
OFF
1
3
2
3
HOLD
1
Measured value
2
Output hold value (peak-to-peak hold value)
3
Interval in which an analysis is carried out
•
Average value: Holds the mathematical average of all measured values present in
the interval between the last falling edge and the hold input signal (next rising
edge).
ON
OFF
1
2
3
HOLD
1
Measured value
2
Output hold value (average hold value)
3
Interval in which an analysis is carried out
OPERATION VIA DISPLAY 8
8019642/ZJW1/2017-04-03 | SICK O P E R A T I N G I N S T R U C T I O N S | OD1000
47
Subject to change without notice
