PROGRAMMING TOOL | SICK 8016223/19SR/2020-11-02
Subject to change without notice
16
PGT PGT-08-S@SOPA S
4.4 Preparing the working area
1. Select the connected encoder in the project view.
2. Double-click the encoder image or click on the triangle symbol and then select
OPEN DEVICE WINDOW... to open the available views.
3. Double-click on a view to open it in the working area.

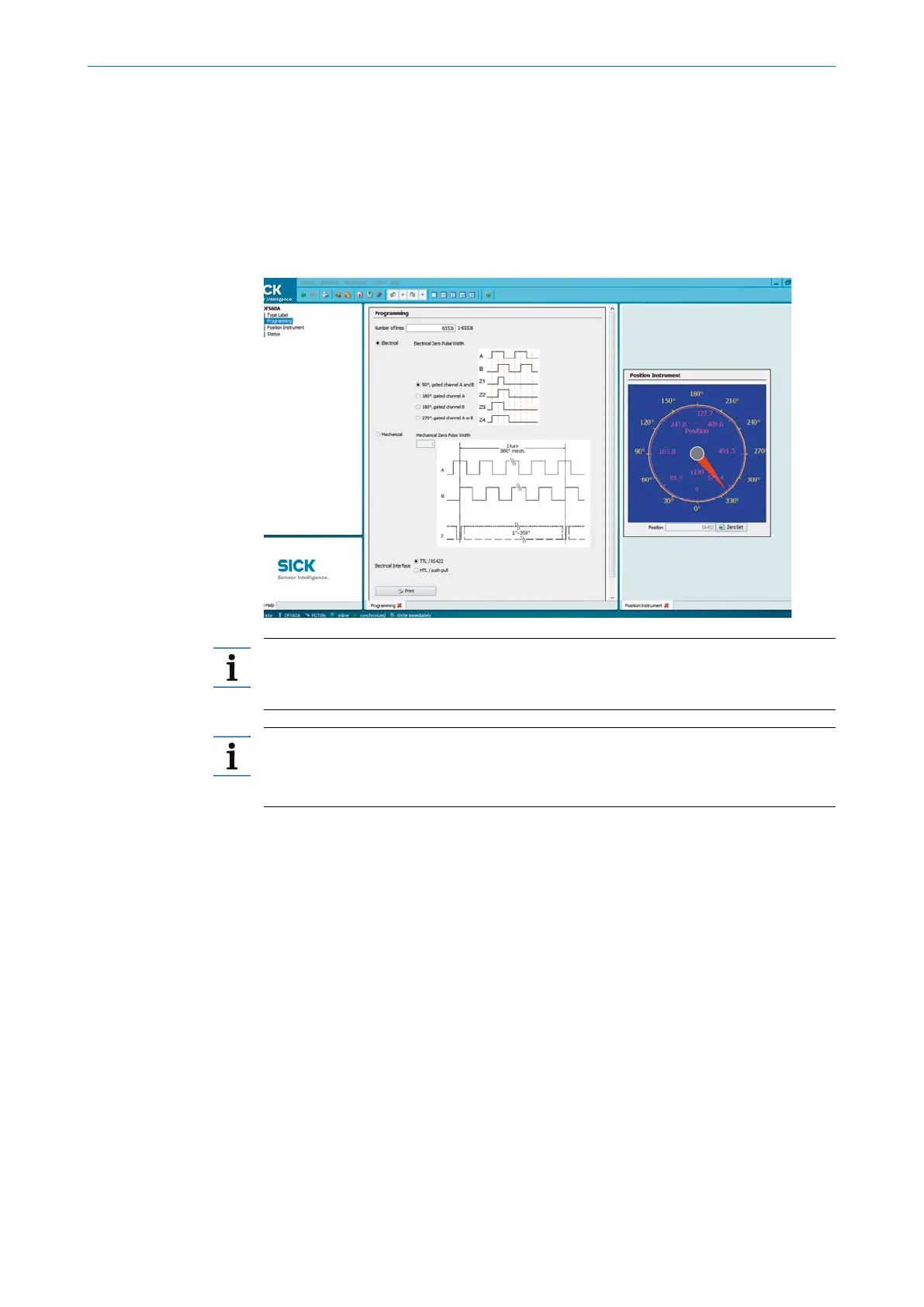

Example:
Note:
To switch between the open views, click on the tabs in the working area.
Note:
Use a divided view (see online help) to display multiple views next to or above one
another.Thetabscanbemovedtothedierentpartsofthewindowusingdrag&drop.
