Electrical values Low: V
in
≤ 2 V; I
in
≤ 0.3 mA
High: 6 V ≤ V
in
≤ 30 V; 0.7 mA ≤ I
in
≤ 5 mA
NOTE
Assign the functions for the digital switching inputs in the device with a configuration
tool, e.g. the configuration software SOPAS ET.
14.8.8 Wiring digital switching inputs “External input 1” and “External input 2” of the device in the
CDM420-0006
Device = RFU62x-104xx (serial variant), RFU62x-101xx (Ethernet variant)
Device 4
CDM420-0006
PNP sensor 7
V
S
GND
3.32 K
6.64 K
V
in
Out
GND
S6
CMC600 3
Aux
(RS-232)
ON
OFF
S6 : SGND
No
YES
S8 : CMC
17
SGND
8
Shield
39
+24 V*
A
Aux In B
+24V*
“External
input C” 5
SensGND
Trigger sensor 1
8
E.g. photo-electric
switch 6
2

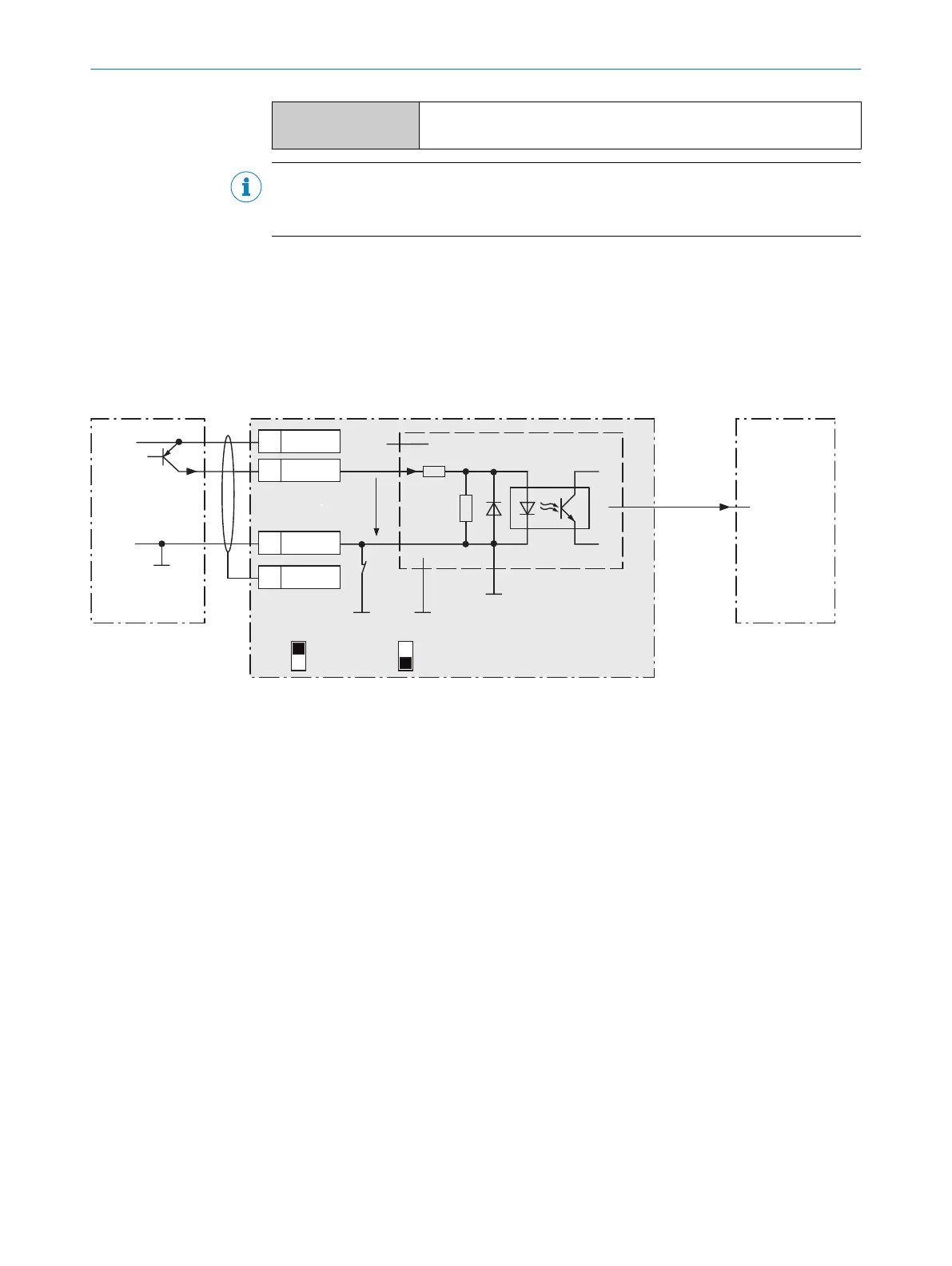

Figure 87: Trigger sensor supplied with power by connection module CDM420-0006
1
Trigger sensor, e.g. for read cycle generation
2
Input voltage V
in
3
The optional parameter cloning module CMC600 is required in the connection module in order to be able to use the
additional external digital switching inputs and outputs of the device
4
Device
5
Logical “External input” in the device
6
e.g. photoelectric sensor
7
PNP sensor
8
Supply voltage V
S
