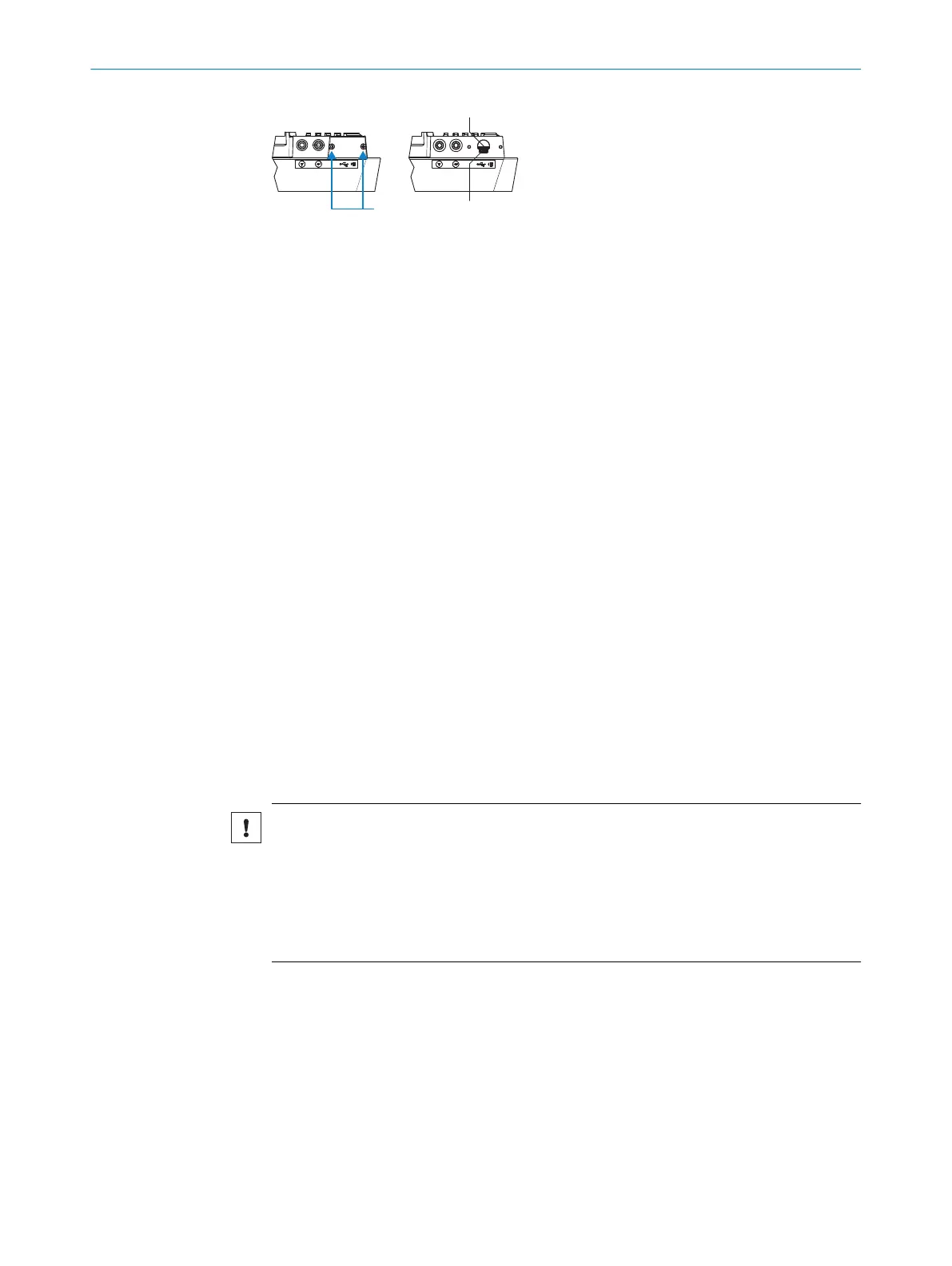

Figure 11: USB connection and slot for microSD memory card
1
Slot for microSD memory card
2
USB port (female connector, Micro-B, 5-pin)
3
2 x screw, (Allen screw, A/F 2 mm)
1. Switch off the supply voltage to the device.
2. To remove the cover, unscrew both Allen screws.
3. Making sure it is in the correct position, insert the memory card into the slot until
it locks into place. When doing so, orient the contacts so that they are facing
towards the device and downwards as per the symbol on the device.
4. Screw the cover back on. Recommended tightening torque for the cover screws:
40 Ncm ± 5 Ncm.
5. Switch on the supply voltage for the device.
Interpretation of the stored parameter set
The device automatically detects that a memory card has been inserted and, depend‐
ing on the card’s content, behaves as follows:
■
If the card is empty or if it contains a parameter set that cannot be interpreted by
the device, the device saves its currently valid internal parameter set to the card
(provided there is sufficient storage space) and starts with the internal parameter
set.
■
If the card contains a parameter set that can be interpreted by the device, the
device overwrites the currently valid, permanently saved internal parameter set
with this external parameter set.
■
The goal is for the internal parameter set and the parameter set saved externally
to always be identical.
Removing the memory card from the device:
NOTICE
Risk of damage to the memory card!
b
To safely remove the memory card while the device is in operation:
°
In SOPAS ET, execute the Remove SD card command under Analysis/SD card and
wait for SOPAS ET to provide confirmation.
°
If this command is not accessible, the memory card can also be removed
when there is no power to the device.
3 PRODUCT DESCRIPTION
28
O P E R A T I N G I N S T R U C T I O N S | RFU63x, RFU65x 8014335/ZTL9/2018-10-14 | SICK
Subject to change without notice
