Configuration
6.3 Configuration of the S3000 PROFINET IO/IOOF
F
or information on the configuration of the basic functions, refer to the original operating
instructions “S3000 safety laser scanner” (SICK part number 8009791). Using the CDS
(Configuration & Diagnostic Software) you can configure all available parameters and
define the field geometries for the protective fields and warning fields.
The connection is made to the device via …
 the local device connection.
The connection to the local configuration and diagnostics connection is made using an
RS8232 cable available as an accessory.
 the network.
Configuration via the network is only possible after the PROFINET configuration. The
CDS is opened using TCI in the hardware configuration in the network engineering tool.

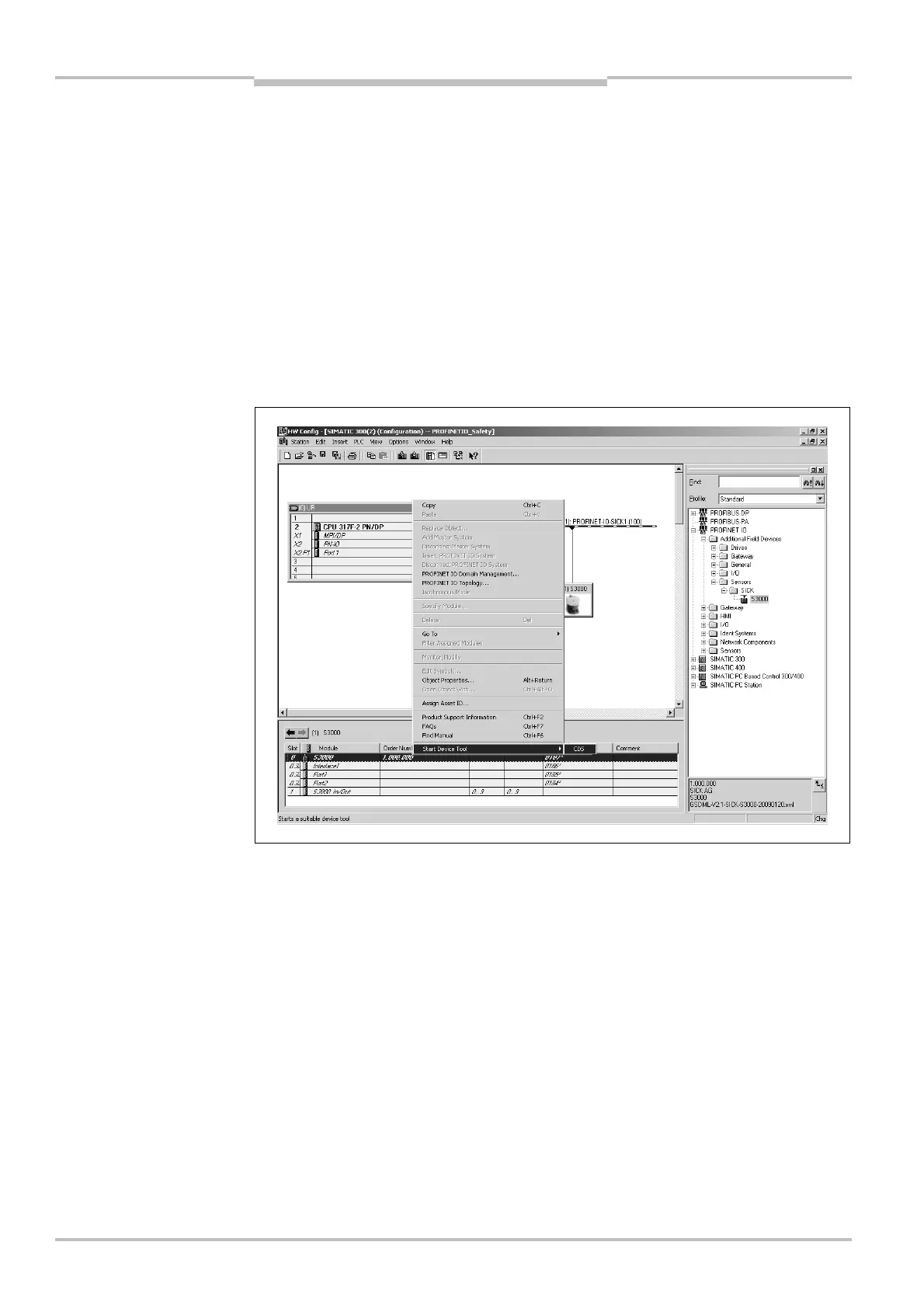

Fig.
13
:
Example of opening
the CDS using TCI
