Conductance value for copper: 56 m/Ω mm
2
.
Assignment of infringed fields – digital outputs
Output level: The level of the digital outputs OUT 1 ... OUT 3 is active low (in resting
position: high, in working position: low (field infringed)).
All fields of a field set are considered infringed upon switching on, booting, in the event
of an error and when the device is switched off.

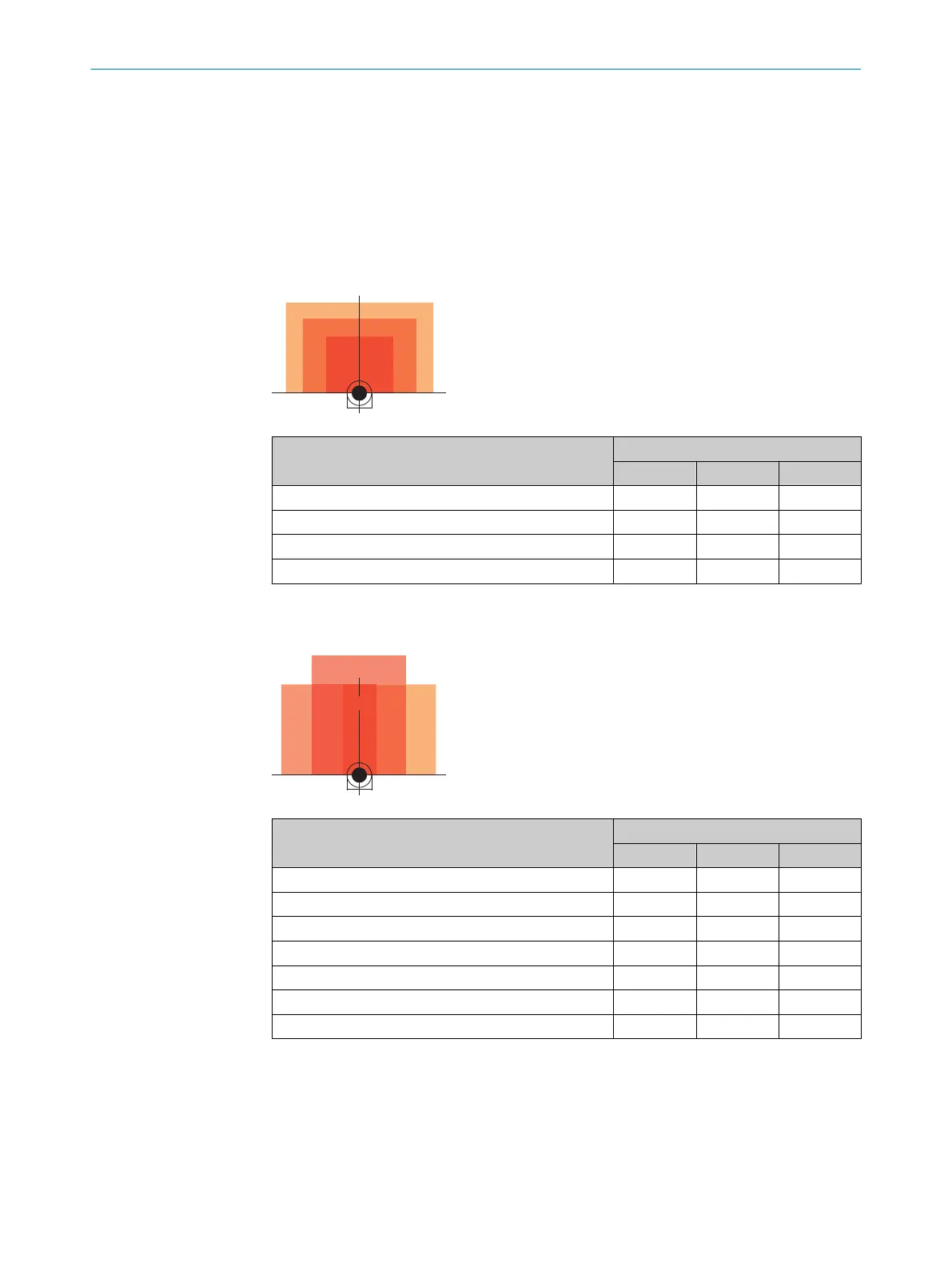

Example 1: 3 fields, rectangular, nested inside each other
1
2
3
Infringed fields Digital outputs
OUT 1 OUT 2 OUT 3
Fields 1, 2, and 3 infringed Active Active Active
Fields 2 and 3 infringed Deactivated Active Active
Field 3 infringed Deactivated Deactivated Active
No field infringed: Deactivated Deactivated Deactivated
Example 2: 3 fields, rectangular, overlapping
The overlapping fields create areas that can be used as additional fields.
1
2 3
AA
B C D E FB
Infringed areas (fields) Digital outputs
OUT 1 OUT 2 OUT 3
A (field 1 infringed) Active Deactivated Deactivated
B (field 2 infringed) Deactivated Active Deactivated
C (fields 1 and 2 infringed) Active Active Deactivated
D (fields 1, 2, and 3 infringed) Active Active Active
E (fields 1 and 3 infringed) Active Deactivated Active
F (field 3 infringed) Deactivated Deactivated Active
- (no field infringed) Deactivated Deactivated Deactivated
