SICK UE410-SD

Minimum Typical Maximum
Cable resistance – – 100 Ω
1)
Cross-circuit detection only within a module.
Table 13: Output circuit (Q1, Q2, Q3, U
OU
T
)
Minimum Typical Maximum
Number of outputs – 2 –
Type of output PNP semiconductor, short-circuit protected, cross-circuit
monit
ored
1)
Switching voltage 18.4 V DC – 30 V DC
Switching current
I
Qn
, T
U
≤
45 °C – – 2.0 A
I
Qn
, T
U
≤ 55 °C – – 1.6 A
Sum current I
sum
ΣI
Qn
, T
U
≤ 45 °C – – 4.0 A
ΣI
Qn
, T
U
≤ 55 °C – – 3.2 A

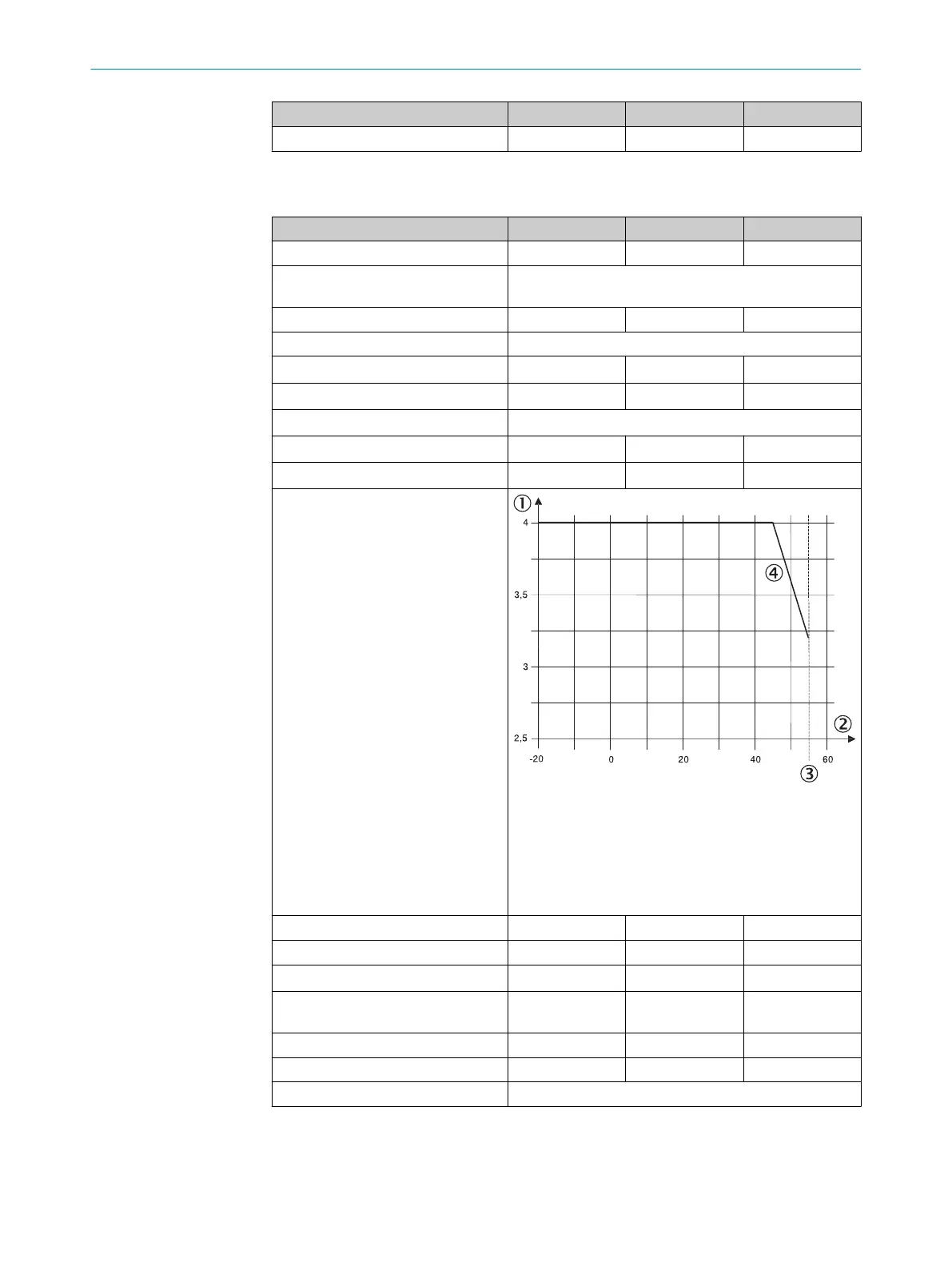

Figure 14: Load chart Q1, Q2, Q3 and U
OU
T
of UE410-SD
1
Σ I
Qn
[
A]
2
T
U
[°C]
3
T
U ma
x
4
Sum current over temperature
Test pulse width 500 μs 640 μs 700 μs
Test pulse frequency Q1, Q2 12.5 Hz – 32 Hz
Test impulse frequency Q3, U
OUT
– – 5 Hz
Inductive switch-off energy
E = 0.5 × L × I²
– – 370 mJ
Load capacity – – 500 nF
Length of cable (single, Ø 1.5 mm²) – – 100 m
Response time see table 8, page 38
1)
Cross-circuit detection only within a module.
13 TECHNICAL DATA
40
O P E R A T I N G I N S T R U C T I O N S | UE410 Safeguard Detector Box 8021417/2018-01-17 | SICK
Subject to change without notice
