Chapter 3 Operating Instructions
V200/V300
12 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 8012227/YT87/2016-03-29
Subject to change without notice
Product description
3 Product description
This chapter provides information on the special features and properties of the
V200/V300 safety camera system. It describes the construction and the operating
principle of the device, in particular the different operating modes.
⋅ Please read this chapter before mounting, installing and commissioning the device.
3.1 Special features
• V200 Work Station Extended: Type 2 ESPE according to IEC 61 496-1
• V300 Work Station Extended: Type 3 ESPE according to IEC 61 496-1
complies with the requirements for the “Control reliable” safety level.
• protective operation with either internal or external (realised on the machine)
restart interlock
• facility for connecting a reset button
• facility for connecting an external device monitoring (EDM)
• status indication by LED
3.2 Operating principle of the device

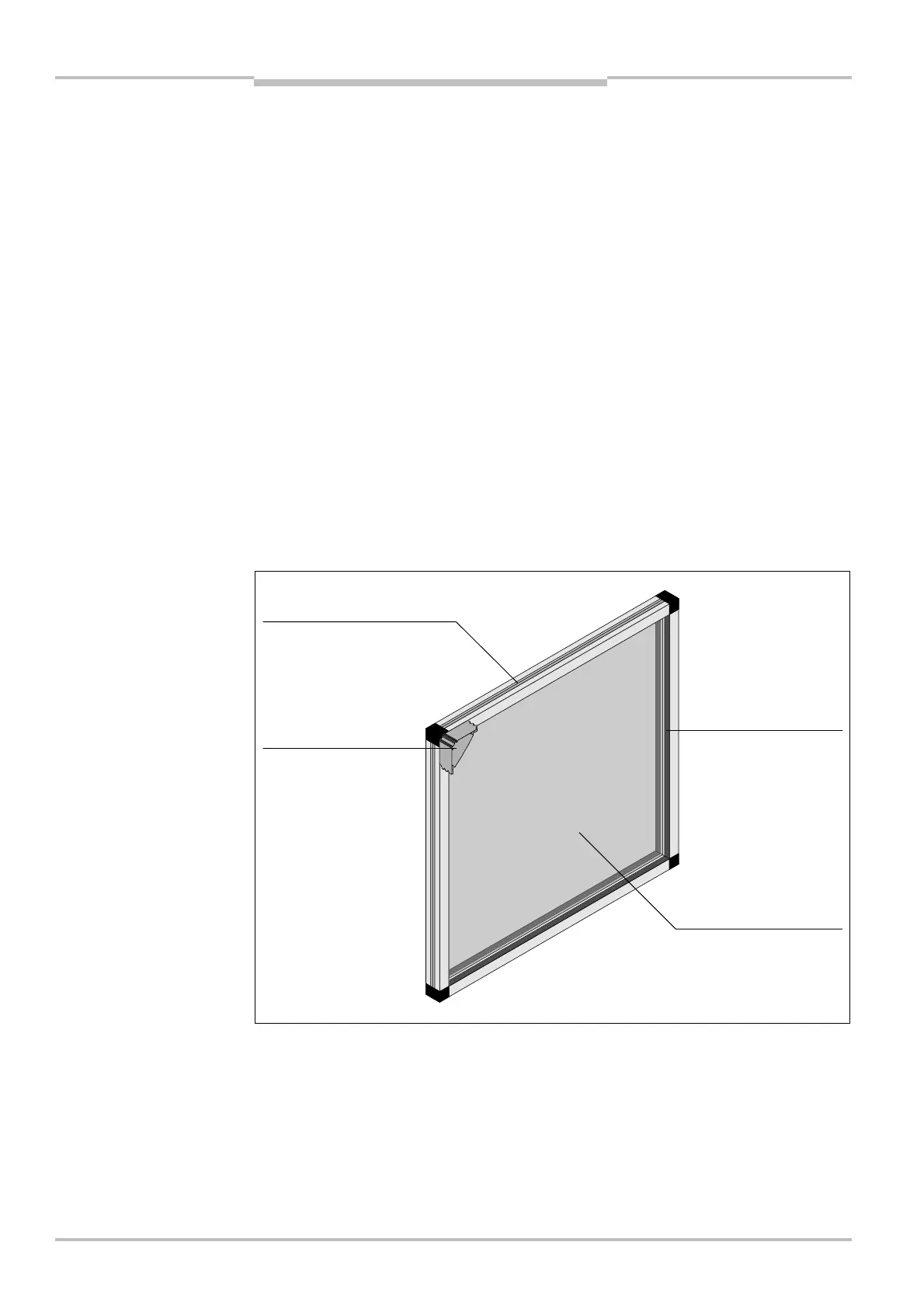

The V200/V300 safety camera system comprises a camera as well as a reflective tape
with which the contour to be monitored is defined.
The camera monitors the area bounded by its field of view and the reflective tape – the
protective field – for interruptions. If the V200/V300 detects an interruption in the shape
of the protective field, the camera shuts down its safe outputs.
Please refer to chapter 11 “Technical specifications” on page 52 for the data sheet.
Please refer to page 56 for the dimensional drawings.
of the V200/V300
camera
profile
