Mounting
⋅ Press the reflective tape firmly and ensure the edges are firmly sealed. In this way you
will prevent dirt and liquids getting under the reflective tape.

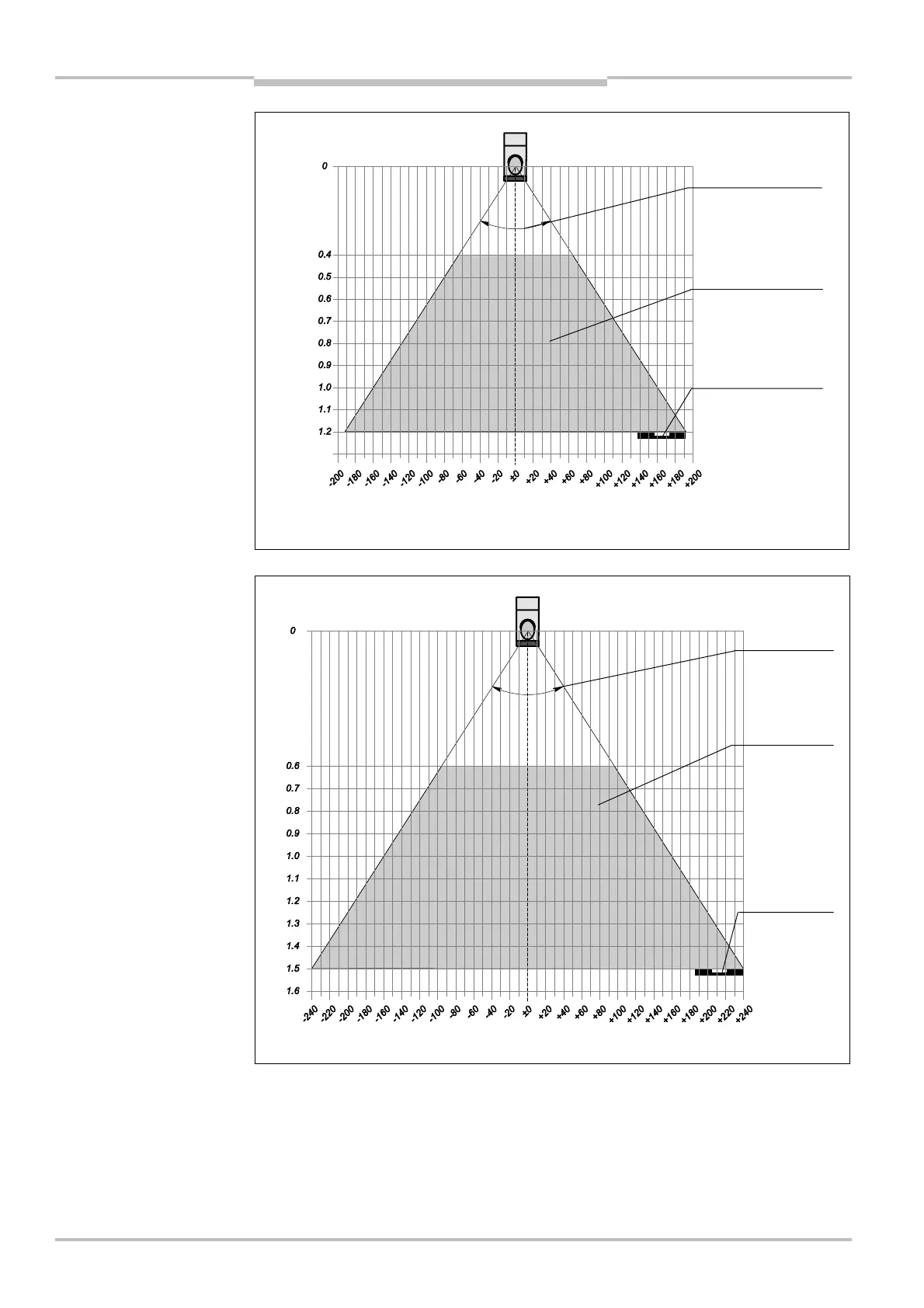

Fig.
18
:
Permissible diver
-
gence of the reflective tape
from the optical axis of the
camera as a function of the
distance at 24 mm resolution
(illustration of divergence not
to scale)
Fig.
19
:
Permissible diver
-
gence of the reflective tape
from the optical axis of the
camera as a function of the
distance at 30 mm resolution
(illustration of divergence not
to scale)
V200/V300
Distance to the reflective tape [m]
Lateral
tolerance
±9.2°
Permissible
applications
Reflective
tape
Permissible divergence of the reflective tape [mm]
Permiss
ible divergence of the reflective tape [mm]
Distance to the reflective tape [m]
Lateral tolerance
±9.2°
Permissible
applications
Reflective tape
V200/V300
