SICK WLG4S - Page 49

12.1 (0.48)
M8x1
7.6 (0.3)
18.6 (0.73)
11.3 (0.44)
3.7
(0
.
1
5)
18.6 (0.73)
25.4 (1)
12 (0.47)
30.5 (1.2)
5
4
3
2
1
4 4

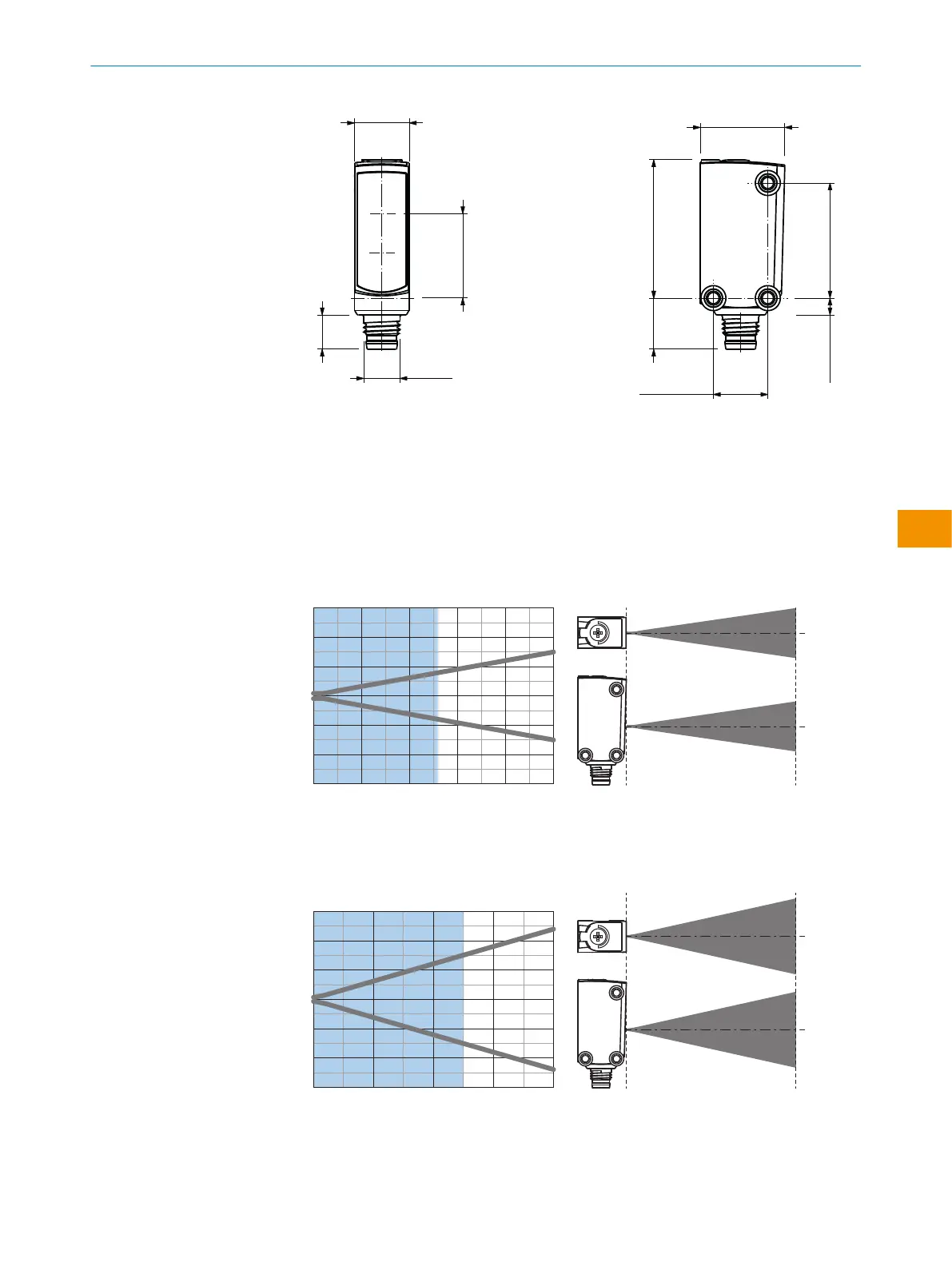

Figure 17: WLA4S, M8 male connector
1
Center of optical axis
2
Connection
3
M3 threaded mounting hole
4
Display and setting elements
11.3 Light spot diagrams
0
Distance in m (feet)
Dimensions in mm (inch)
100
(3.94)
150
(5.91)
–150
(–5.91)
–100
(–3.94)
0
50
(1.97)
–50
(–1.97)
2
(6.56)
1
(3.28)
4
(13.12)
3
(9.84)
5
(16.40)
0 5
(16.40)
Figure 18: WLASP-xxxxx0xx
0
Distance in m (feet)
Dimensions in mm (inch)
100
(3.94)
150
(5.91)
–150
(–5.91)
–100
(–3.94)
0
50
(1.97)
–50
(–1.97)
2
(6.56)
4
(13.12)
6
(19.69)
8
(26.25)
0 8
(26.25)
Figure 19: WLASP-xxxxx3xx, WLG4SP
