Digital output
WLG4S
Output current I
max.
≤ 100 mA
Circuit protection A, B, C, D
1)
Response time ≤ 500 μs
2)
Switching frequency 1000 Hz
3)
1)
A = U
B
-connections reverse polarity protected
B = inputs and output reverse-polarity protected
C = Interference suppression
D = outputs overcurrent and short-circuit protected
2)
Signal transit time with resistive load
3)
With light / dark ratio 1:1
Mechanical data
WLG4S
Enclosure rating IP66, IP67
Ambient temperature, operation –40 °C... +60 °C
11.2 Dimensional drawings
4
3
8.4 (0.33)
8.9 (0.35)
3
3
1
4.7 (0.18)
2
18.6 (0.73)
12.1 (0.48)
18.6 (0.73)
30.5 (1.2)
25.4 (1)
3.7
(0
.
1
5)
12 (0.47)

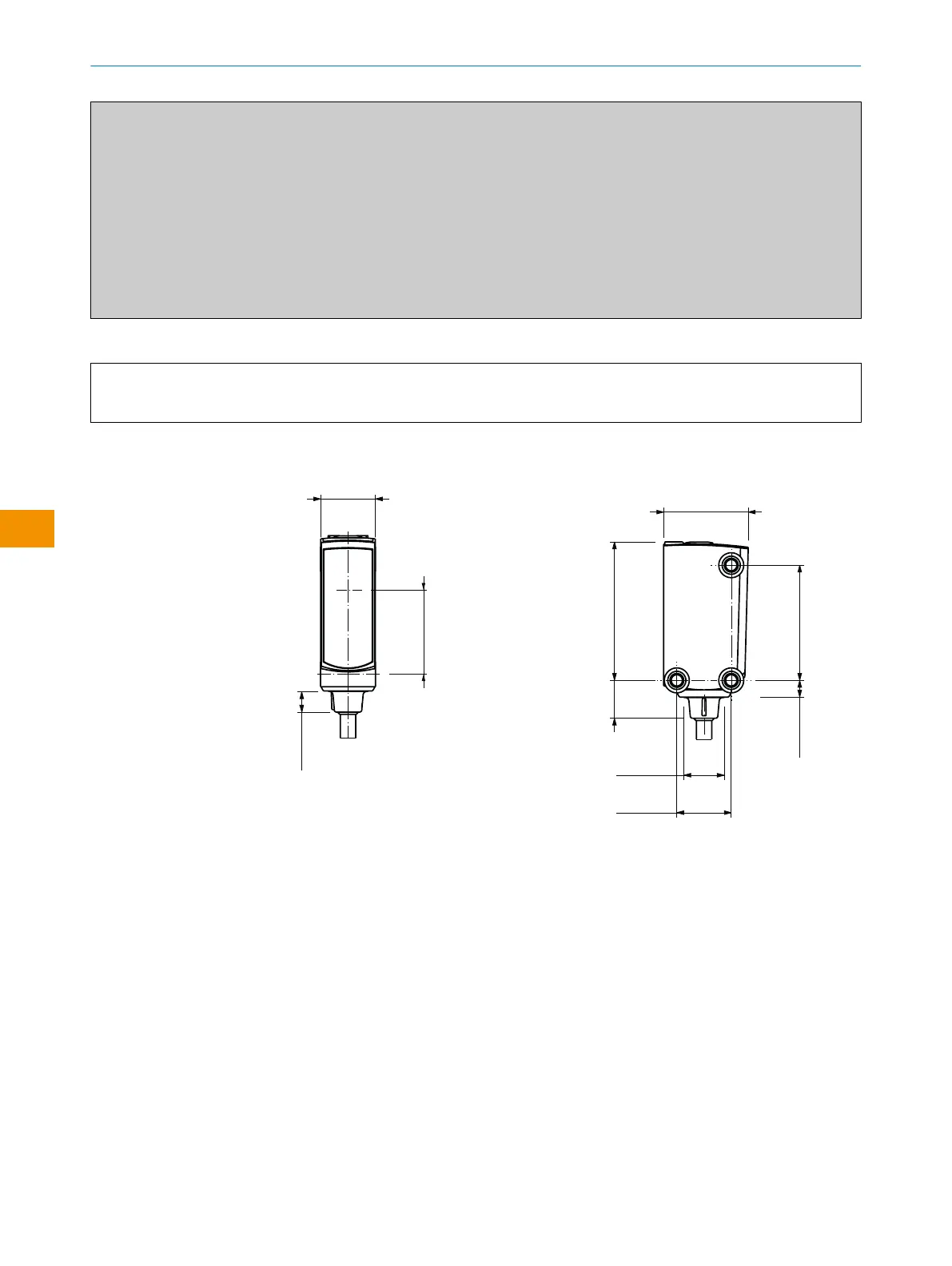

Figure 16: WLA4S, cable connection
1
Center of optical axis
2
Connection
3
M3 threaded mounting hole
4
Display and setting elements
